Features
- Seamless switching of 2 HDMI, 1 HDMI + USB-B, and 2 USB-C video and data ports both with 60W PD
- HDBaseT 3.0 output for full 18Gbps (RX not incl.) and mirrored HDMI 2.0 loop out
- 2x USB-A local ports. Use PT-HDBT-1020HU-RX for additional remote ports
- Support for multiview screen layouts PiP, PaP and quad view
- Dante input and output support with balanced 5-pin phoenix connection
Advanced HDMI and USB Connectivity: Streamline Your AV and IT Setups
The 18Gbps USB-C KVM Transmitter with Dante and Multiview offers a range of features for seamless integration and efficient data management. With its versatile connectivity options and advanced performance, this product is ideal for professional AV setups and IT environments.
- Seamless Switching of Multiple Ports: Effortlessly switch between 2 HDMI, 1 HDMI + USB-B, and 2 USB-C ports with 60W Power Delivery. This allows for smooth transitions and efficient data transfer, ensuring a hassle-free user experience.
- High-Quality Video Output: Enjoy uncompressed 18Gbps output over HDBaseT 3.0, as well as a mirrored HDMI 2.0 loop out for crystal-clear visuals. This ensures impeccable display quality and seamless video streaming for professional presentations and live events.
- Enhanced Multiview Screen Layouts: Support for PiP, PaP, and quad view layouts allows for versatile screen configurations to suit your specific needs. This flexibility is perfect for multitasking professionals and complex installations.
- Dante Input and Output Support: With balanced 5-pin phoenix connections, this product offers seamless integration with Dante audio systems. Enjoy high-quality audio input and output for a complete AV experience.
- Convenient USB-A Ports: Equipped with 2 USB-A local ports for easy device connectivity and data management. Use the PT-HDBT-1020HU-RX for additional remote ports, ensuring comprehensive device control and efficient workflow.
Upgrade Your AV and IT Systems with Ease
The 18Gbps USB-C KVM Transmitter with Dante and Multiview is the perfect solution for managing complex video and data systems with precision and efficiency. Its advanced features and versatile connectivity options make it an indispensable tool for industry professionals.
- Range
- 70 m 4K@30 Hz, 40m 4K@60 Hz
- Technology
- HDBaseT 3.0
- Extender type
- Transmitter (Tx)
General
- Application
- Conferencing Hub, Presentation switch
Video specification
- Resolution max out
- 3840x2160 18 Gbps
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4

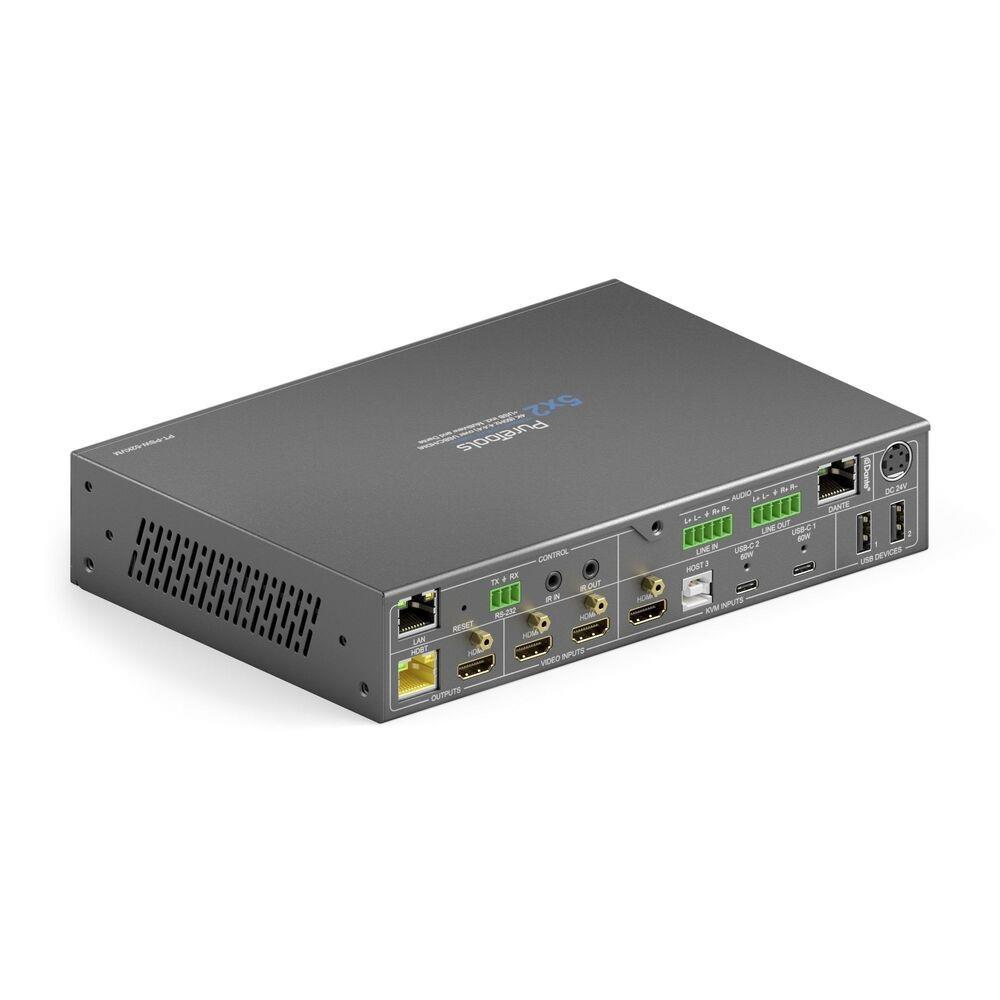

Connections
- Video inputs
- 5
- Video outputs
- 1 1x HDMI, 1x HDBaseT mirrored outputs
- Video in
- HDMI x3 HDMI 2.0b, HDCP 2.2
- Video in
- USB-C x2 With DP1.2 Alt mode video, USB 2.0 480Mbps KVM Data, up to 60W PD
- Video out
- HDBaseT (RJ-45) x1 Mirrored output with HDMI
- Video out
- HDMI x1 HDMI 2.0, HDCP 2.2 / 1.4 Mirrored output with HDBT
- Audio inputs
- Dante (RJ-45) x2 in
- Audio inputs
- Euroblock line x1 Balanced stereo (L/R)
- Audio outputs
- Dante (RJ-45) x2 out
- Audio outputs
- Euroblock line x1 Balanced stereo (L/R)
Functions
- Scaler
- No
- Video operation modes
- Multiviewer
- USB passthrough
- Yes 2x USB-C + 1x USB-B Host ports, 2x USB-A 3.2 Device ports
- USB standard
- 2.0 480Mbps
- USB power delivery
- 20V, 3A (60W) For USB-C Host ports (max)
- Control
- Auto-switching, CEC
- Control
- Ethernet/IP (RJ-45) TCP/IP
- Control
- GPI/O
- Control
- IR cable connection in/out
- Control
- IR-Remote included
- Control
- RS-232
Energy
- Power Supply
- PoE from Transmitter to Reciever, DC 24V / 8A external power supply (included) for Tramsmitter
Dimensions and weight
- Width
- 220 mm
- Depth
- 150 mm
- Height
- 44 mm
- Net weight
- 1.21 kg
Additional information
- Installation
- Freestanding/Shelf
- Included Accessories
- 1 × Transmitter, 2× 3pin-3.5mm Phoenix Connector (male), 3× 5pin-3.5mm Phoenix Connector (male), 4× Mounting Ears, 1× IR Remote, 1× User Manual, 8× Machine Screw, 1× 24V/8A Power Supply, 1× AC Power Cord (1.5m)
- Warranty
- 5 years
Packaging info
- Packaging size
- 320 x 210 x 110 mm
- Packaging weight
- 3.24 kg
- Barcode
- 4251364750223
