HNCPROPLUS-SH-LSZH
CAT6 SHIELDED LOW SMOKE ZERO HALOGEN- HDBASET ENHANCED 550 MHz 23 AWG SOLID BC, 4PR, F/UTP, ANSI/TIA 568-C.2, ISO/IEC 11801 CLASS E, EN50575:2014 Dca-s1,d1,a1 LSZH JKT- ICE BLUE- 305M/1000FT SPOOL

HNCPROPLUS+™ for Cat6 is the industry's first HDBaseT™ category cables. HNCPROPLUS+ cables provide superior HDBaseT performance for your HDBaseT devices.HNCPROPLUS+ Shielded F/UTP cables consistently outperform standard Category 6 F/UTP cables and are certified to meet today's demanding commercial and residential Networking and A/V applications for Twisted Pair cables.

SCP HNCPROPLUS+ Shielded F/UTP cables exceed performance standards for: TIA/EIA 568-C.2 Category 6, ISO/IEC 11801 Ed2 Class E; and EN 50173-1:2011.

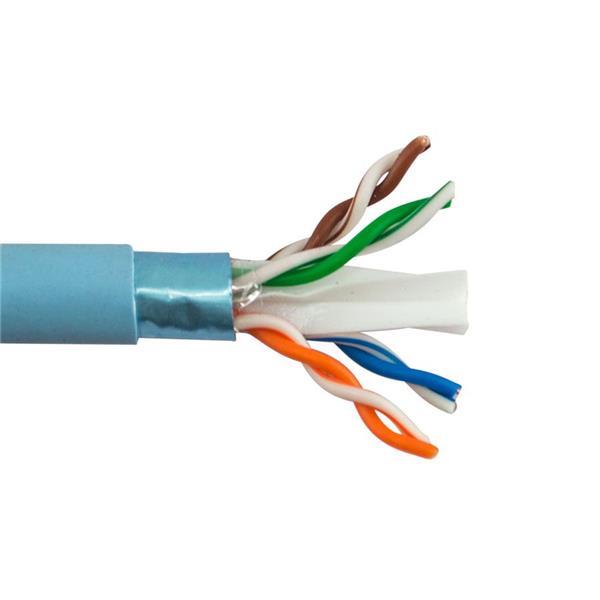

Each HNCPROPLUS+ Shielded F/UTP cable is performance optimized with 4 balanced twisted pairs with center spline on 23 AWG insulated solid bare copper conductors. HNCPROPLUS+ F/UTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the cable jacket.

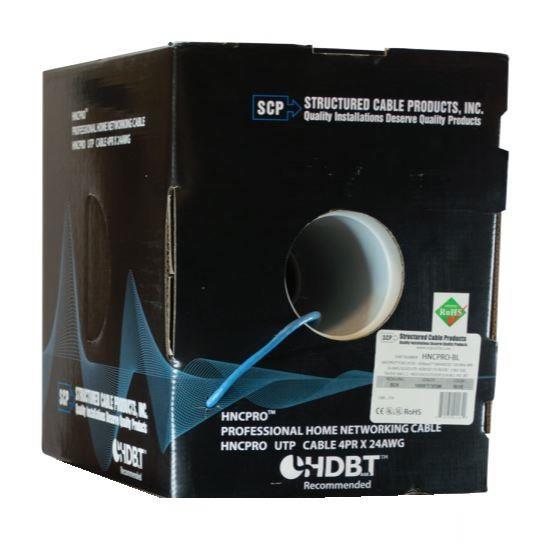

All HNCPROPLUS+ Shielded F/UTP cables are packaged on a wooden spool/drum.

Recommended by WyreStorm®.



General

Cable type
Installation cable, Pull-box
Category
Cat 6
Shielding
F/UTP
Type of wire
Solid core
Crossover cable
No
Outdoor use
No
Low smoke/halogen free
Yes
HDBaseT classed
Yes

Dimensions and weight

Length
305 m
Outer diameter
7.5 mm

Additional information

Color
Blue

Packaging info

Packaging size
400 x 290 x 400 mm
Packaging weight
14.30 kg

Accessories

Artikelnummer 8102022
Artikelnummer 8102024
