A new class of silent projection

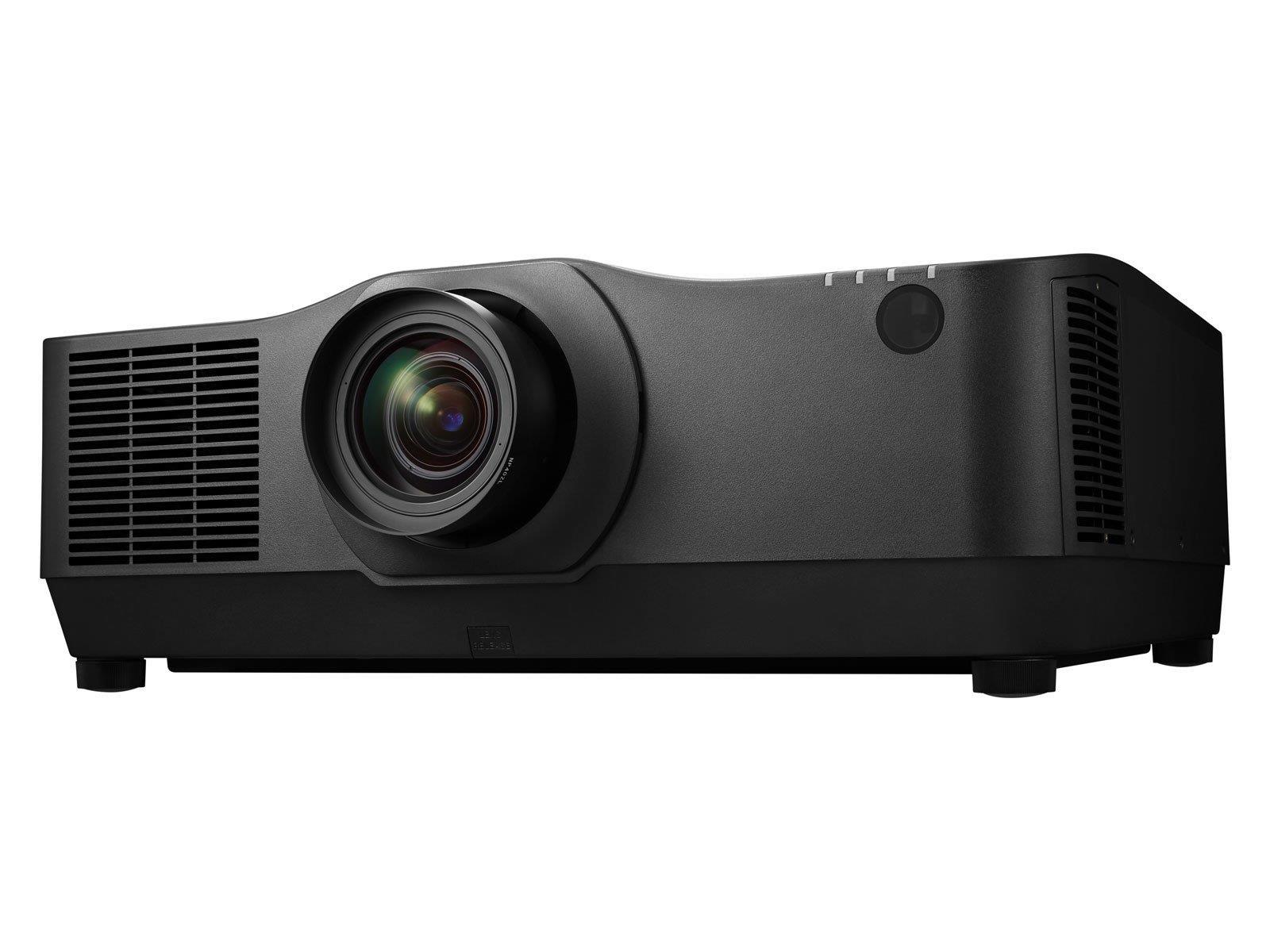

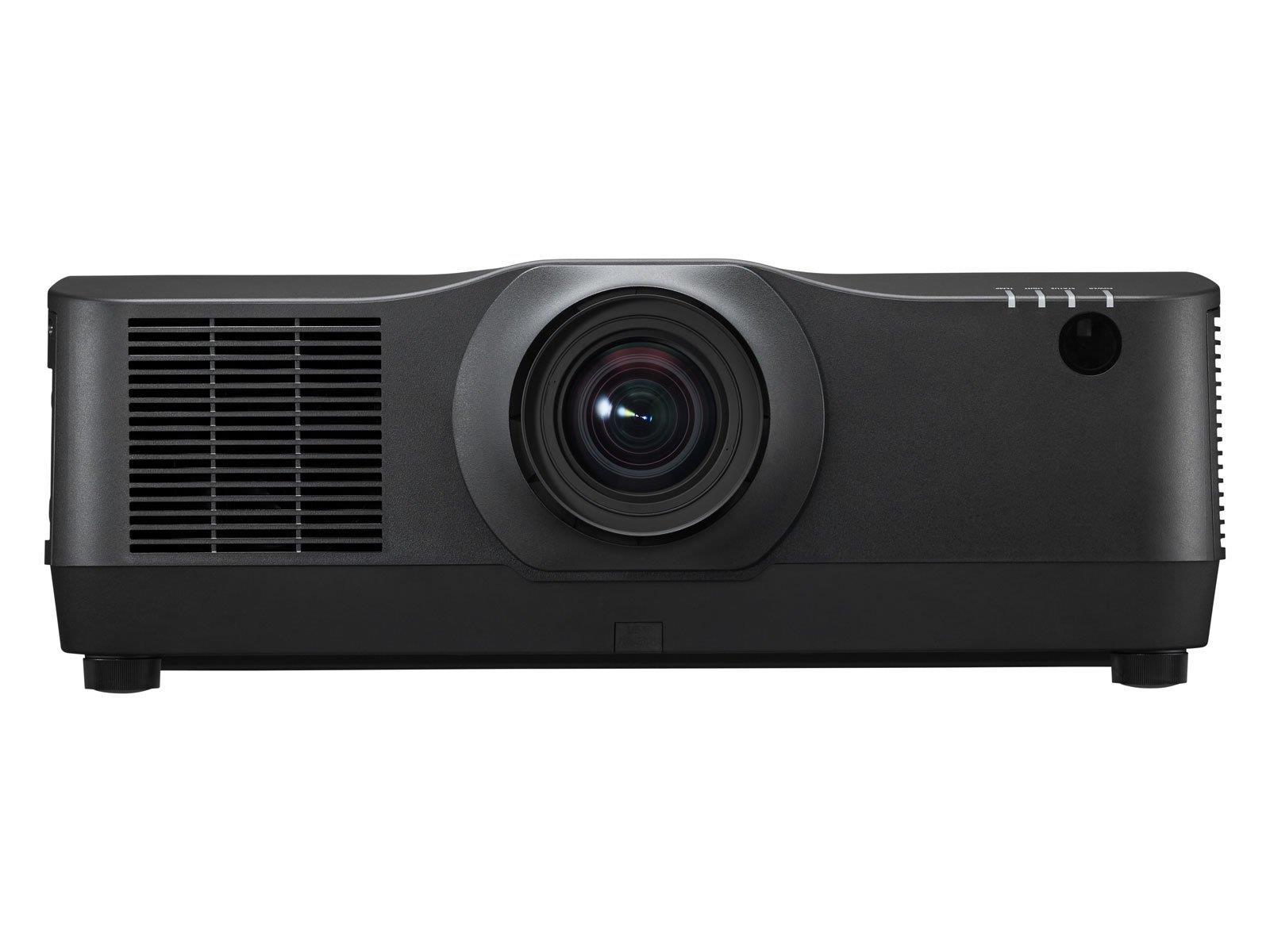

Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Key Features:
• No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
• No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
• Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
• Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
• Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
Lenses - motorized:
NP40ZL (0.79-1.11:1)
NP41ZL (1.3-3.02:1)
NP43ZL (2.99-5.93:1)
NP44ML-PA4 (0.32:1)
Lenses - manual:
NP11FL (0.79:1)
NP12ZL (1.16-1.52:1)
NP13ZL (1.46-2.95:1)
NP14ZL (2.9-4.68:1)
NP15ZL (4.59-7.02:1)
Display
- Projector type
- Installation
- Resolution
- 1920x1200
- Brightness (Max)
- 8,200 ANSI-lumen
- Brightness (Eco)
- 6,000 ANSI-lumen
- Lightsource Life
- 20,000 h
- Light source
- Laser
- Display technology
- 3LCD
Optical
- Interchangeable Lens
- Yes
- Lens included
- No Lens
- Lens shift
- Yes Yes, Motorized and manual (depending on lens), Range depending on lens.
- Throw Ratio from
- 1.30 With standard lens, Not included
- Throw Ratio to
- 3.02 With standard lens, Not included
Communication
- Ethernet
- Yes
- Wi-Fi
- No
- Wireless image sharing
- No
Functions
- Built-in speaker
- No
- Fan Noise (Normal)
- 30 dB
- Fan Noise (Eco)
- 28 dB
- Interactive
- No
Dimensions and weight
- Width
- 599 mm
- Depth
- 490 mm
- Height
- 208 mm
- Net weight
- 24.1 kg
Additional information
- Color
- Black
- Included Accessories
- IR Remote (RD-480E), Power Cord, Quick Setup Guide, Users Manual on CDROM
- Warranty
- 3 years
- Warranty Lightsource
- 3 years / 10,000 hours, whichever comes first.
Packaging info
- Packaging size
- 910 x 740 x 310 mm
- Packaging weight
- 25.75 kg
