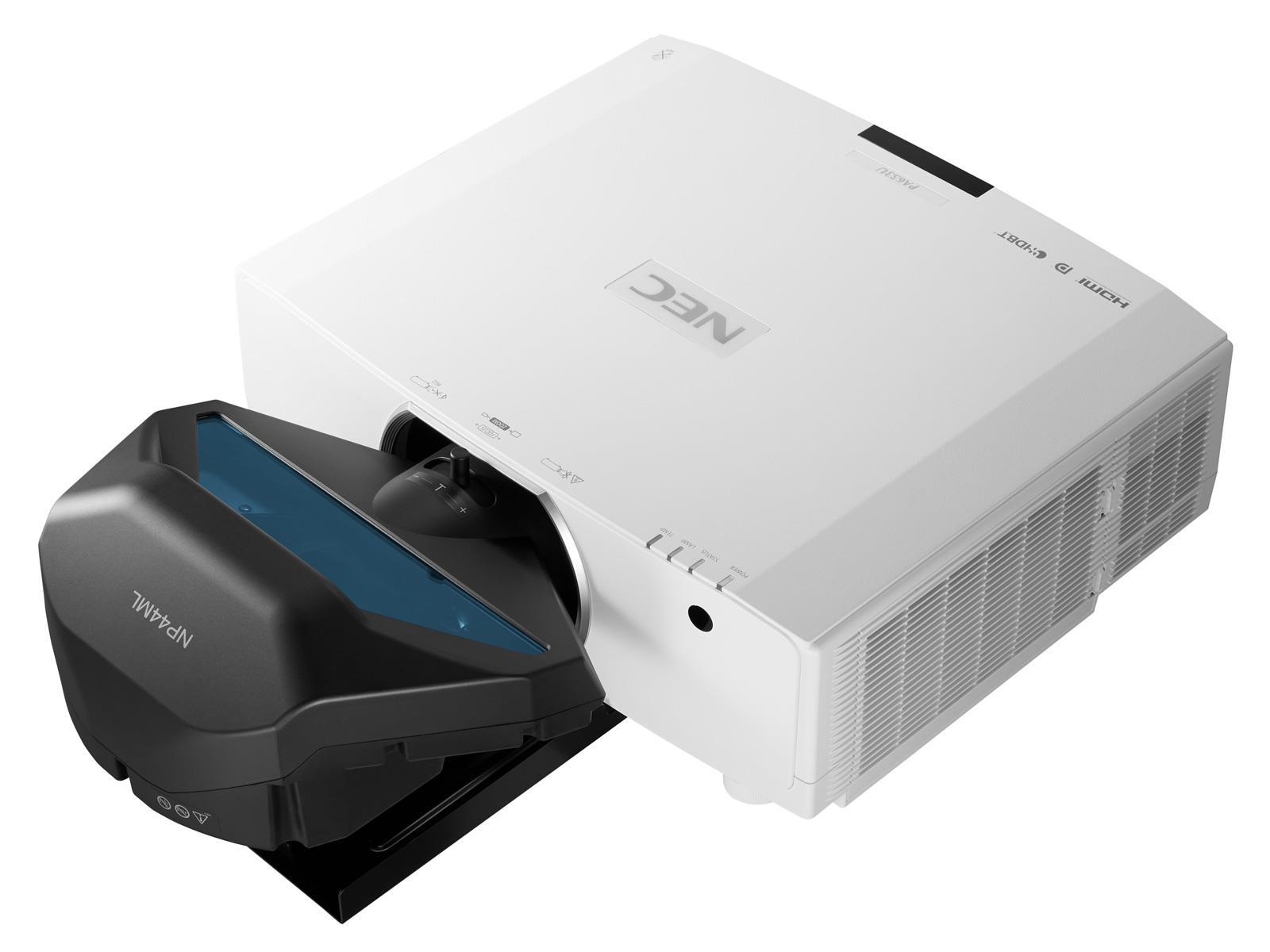

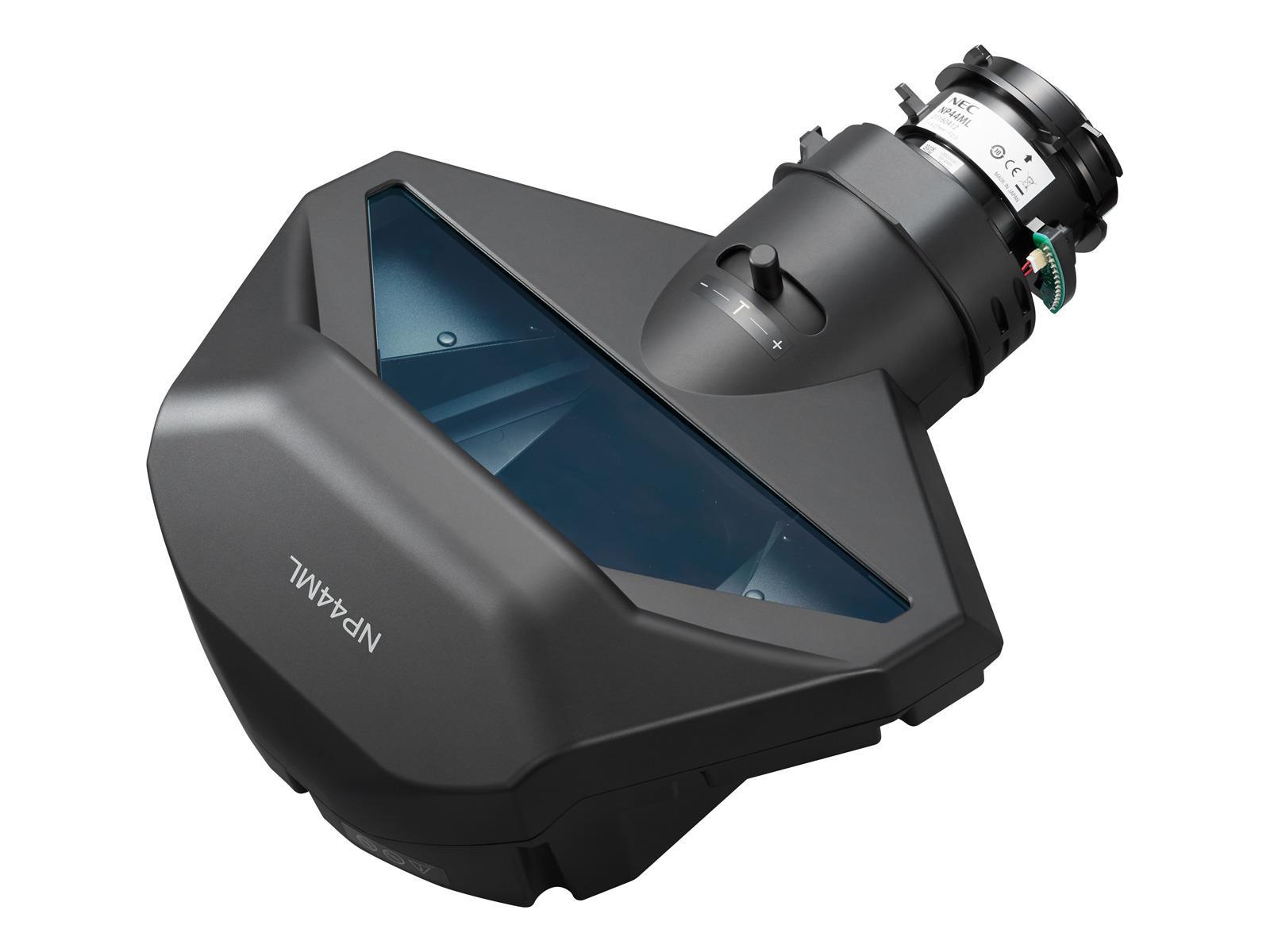

Ultra Short-Throw lens for the NEC PAxx4UL Series projectors
This NEC Ultra Short Throw Lens extends the lens line up for NEC PAxx4UL Series projectors, perfectly suited for Signage, Museum, Rental/Staging, Higher Education and large Corporate environments.
Discover new projection capabilities enabling the projector to be positioned close to the screen; the ideal solution where space is a challenge. Enjoy maximum installation flexibility and creativity from face up/down, landscape/portrait and vertical mounting capability.
Inspire your audience with a new visualisation experience for screen sizes from 100”to 400” diagonal, served by the outstanding picture quality delivered by the NEC PA4 projector series.
Eliminate Space Challenges – create larger pictures, from 100” - 400” diagonal screen size, with shorter projection distances (100” at only 0.7m distance).
No Limits for Positioning – enjoy maximum installation flexibility with desktop, ceiling and vertical wall mount lens capabilities.
Be Stylish in Portrait – create extraordinary projections in portrait format for digital signage Installations.
Crystal Clear Image Quality - with crystal clear glass elements, the lens facilitates an outstanding visual experience with superior picture quality.
General
- Lens Type
- Ultra Short Mirror
- Zoom Type
- Fixed
Optical
- Throw Ratio from
- 0,32 WUXGA
- Throw Ratio to
- 0,32 WUXGA
- Lens shift
- No
- Image diagonal min
- 100 "
- Image diagonal max
- 400 "
Dimensions and weight
- Net weight
- 3.2 kg
Packaging info
- Packaging size
- 283 x 159 x 149 mm
- Packaging weight
- 2.00 kg
