Drive engagement and communication with an affordable display, up to 150", that will improve productivity in any environment.
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

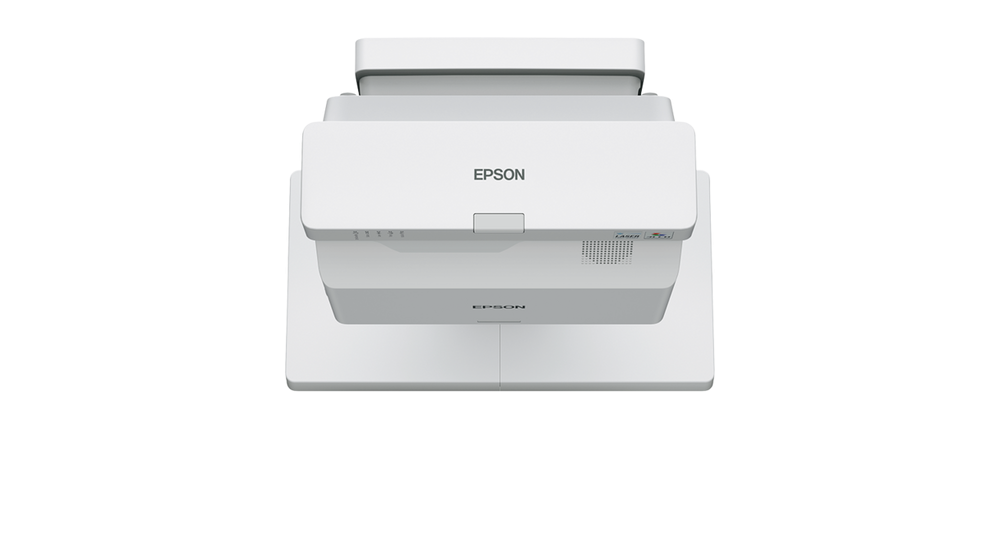

The EB-770F's bright, 1080p image, scalable up to 150", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

The EB-770F's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

With 4,100 lumens CLO and 3LCD technology, the display is bright and vibrant up to 150", clearly visible from all angles and at a distance. The experience is immersive and user-friendly.

Scalable from 49-150", display sizes can be optimised for each room with one product and a fixed cost, and the EB-770F supports multi-projection edge-blending for a low cost, large, seamless, energy efficient 3780x1080p image.

Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensures effortless, multi-device content sharing, and with a connected optional Epson visualiser, documents, presentations or 3D objects can be projected in incredible detail to the whole room.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygenic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Key Features

  • Scalable FHD display for any room 49-150" UST display for unrestricted viewing (no shadows/reflections)
  • Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
  • Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
  • Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
  • Document camera compatibility Create and record a live, totally immersive lesson or presentation


Skærm

Projektortype
Ultra short-throw
Opløsning
1920x1080
Brightness (Max)
4.100 ANSI-lumen
Brightness (Eco)
2.800 ANSI-lumen
Lightsource Life
30.000 h Eco mode, 20000h High mode
Light source
Laser
Display teknologi
3LCD

Optisk

Udskiftelig linse
Nej
Linse inkluderet
Fixed lens
Lens shift
Nej
Throw Ratio fra
0,25
Throw Ratio til
0,25
Throw ratio
0,25:1
Billed diagonal min
60 "
Billed diagonal max
150 "

Communication

Ethernet
Ja 100 Base-TX / 10 Base-T
Wi-Fi
Built-in 802.11 b/g/n/ac
Trådløs billeddeling
Ja Miracast

Funktioner

Indbygget speaker
Ja 16W Mono
Fan Noise (Normal)
37 dB
Fan Noise (Eco)
27 dB
Interaktiv
Ja Pen and finger-touch. 2 pens included; up to 6 points of touch included when optional Touch Module is installed

Dimensioner og vægt

Bredde
356 mm
Dybde
395 mm
Højde
133 mm
Nettovægt
5,9 kg

Yderligere oplysninger

Farve
Hvit
Inkluderet tilbehør
Power cable, Remote control incl. batteries
Garanti
5 år Carry in or 12,000 h
Garanti lyskilde
5 år Carry in or 12,000 h

Forpakningsinfo

Forpaknings størrelse
785 x 570 x 345 mm
Forpaknings vægt
29,80 kg
