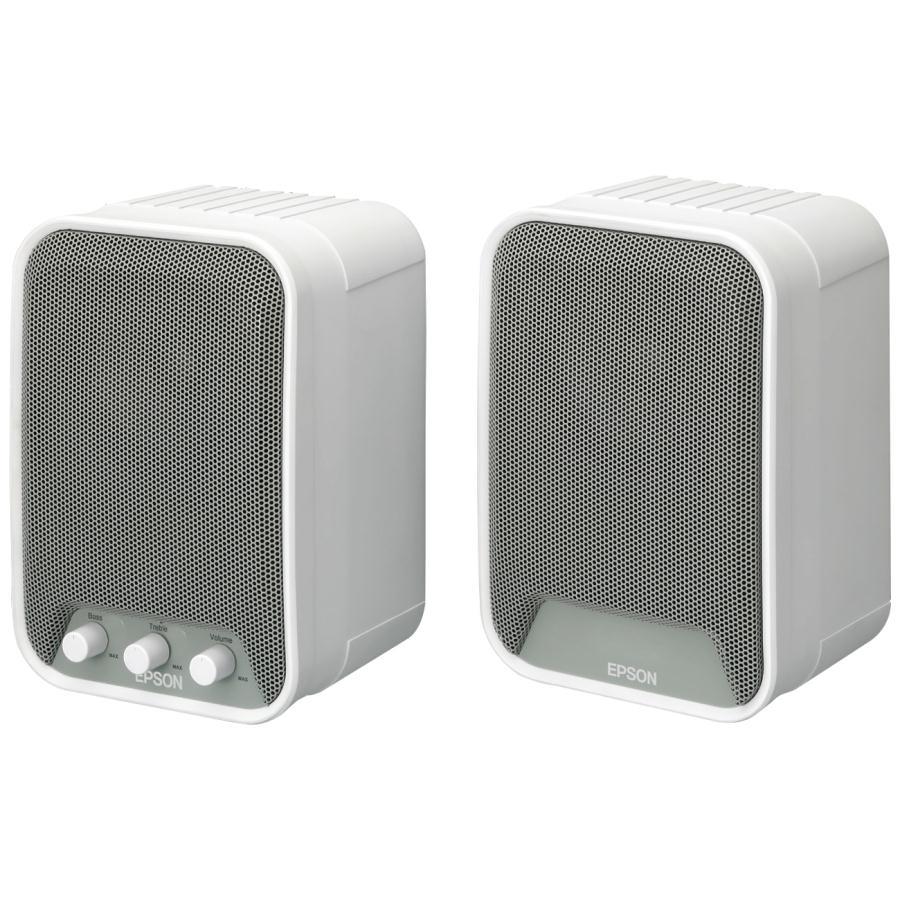

Engage your classroom with 30W of sound using this set of active speakers.

The ELPSP02 active speakers (with built-in amplifiers) enable all students in the room to clearly hear your lesson, enhancing the learning experience. The ELPSP02 speakers can be easily mounted on the wall and can be used with any Epson projector - with or without the ELPCB02 control box.

Key Features:
• Front controls for Volume, Bass and Treble level
• Left speaker active, Right speaker passive
• Wallbrackets included
• 3,5mm tele / RCA audio inputs



Generelt

Applikation
Wall
Aktiv/Passiv
Active
Farve
Hvit

Lydspecifikation

Impedance
8 Ohm
Frequency range Min
80 Hz
Frequency range Max
20.000 Hz
Strømhåndtering
15 W x2
Forstærker Power
15 W x2
70/100 mode
Nej

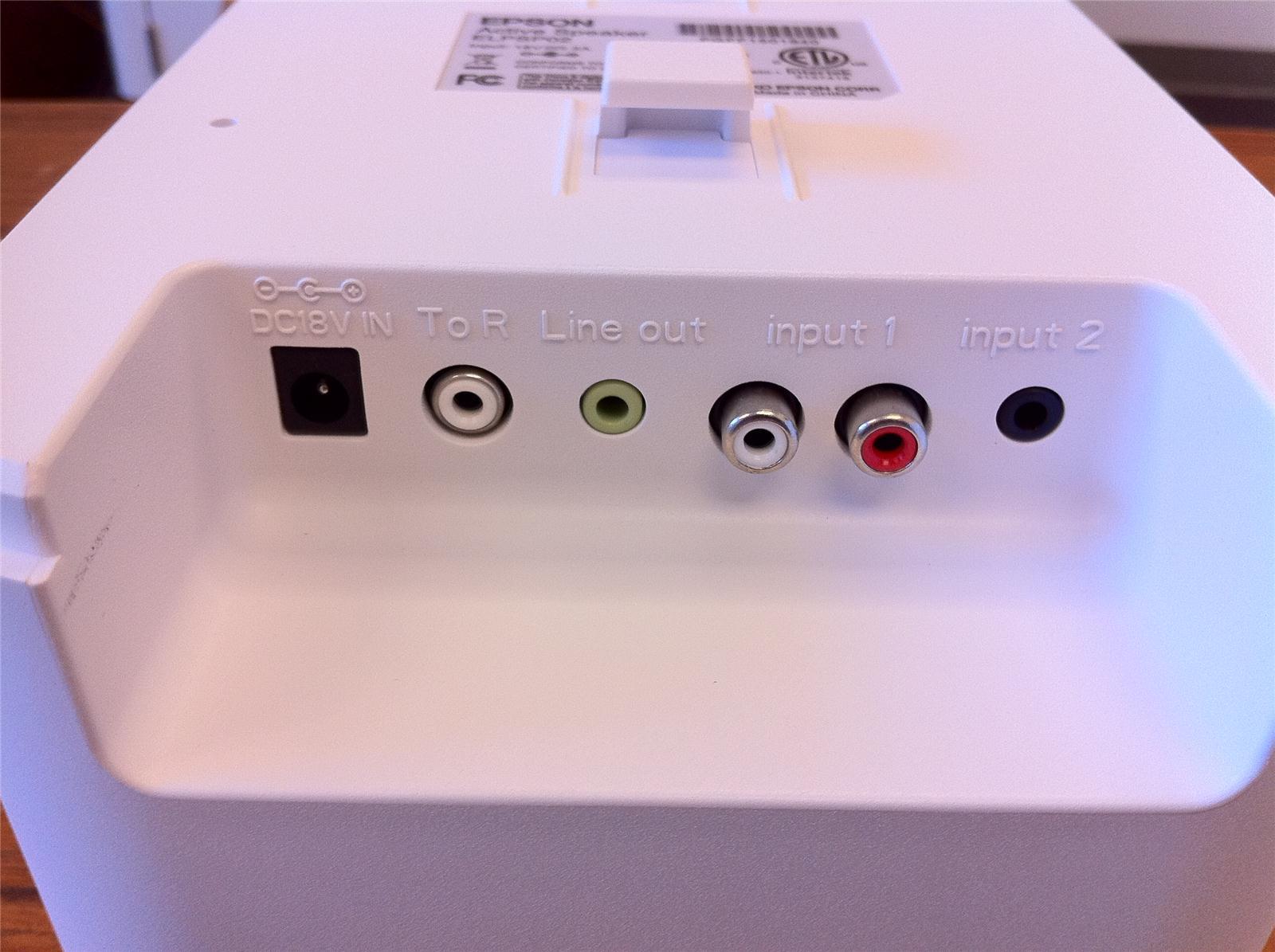

Tilslutninger

Audio indgange
3,5mm tele
Audio indgange
RCA Stereo pair
Audio Udgange
RCA To passive speaker
Ethernet
Nej
Bluetooth
Nej
WiFi
Nej

Energy

Strømforsyning
100V - 240V AC, 50/60Hz External Power Supply

Dimensioner og vægt

Bredde
155 mm
Dybde
142 mm
Højde
231 mm
Nettovægt
2,1 kg 1,9kg (passive speaker)

Yderligere oplysninger

Udendørs brug
Nej
Inkluderet tilbehør
Active Speaker (incl.amplifier), Bracket for wall mount, External AC power adapter with power cord, Passive Speaker, Speaker Cable 3m, User guide, Warranty card
Antal til levering
1 Pair

Forpakningsinfo

Forpaknings størrelse
350 x 200 x 300 mm
Forpaknings vægt
5,02 kg

Forpakningsinfo (2 pcs)

Forpaknings størrelse
420 x 370 x 330 mm
Forpaknings vægt
10,00 kg
