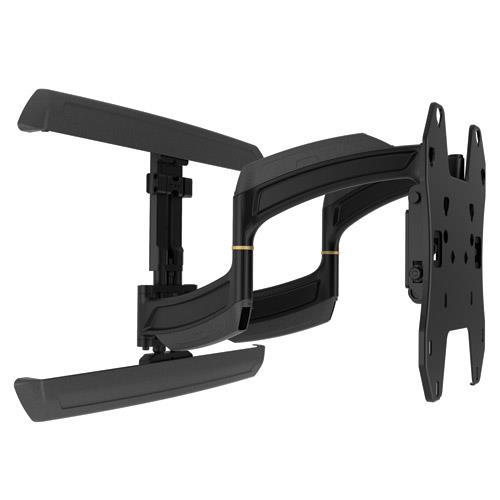

A lightweight, low-profile full-motion wall display mount for TVs 32-65". Easily installs with one person by mounting the top rail and sliding on the assembly.
In-wall installation available when TA501 purchased with mount.
Key Features

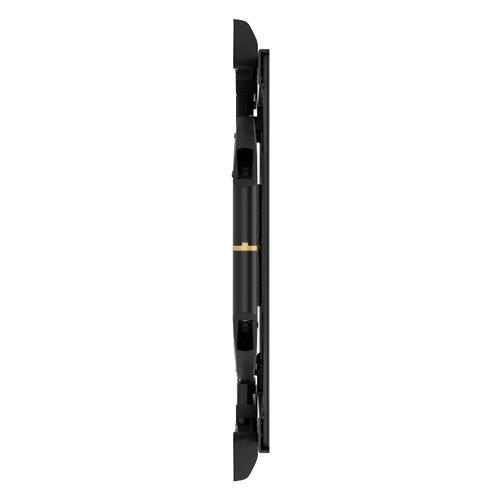

- Ultra Low Profile Sleek design collapses to 1.8" (46 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
- Extends up to 18" (457 mm) Full extension maximizes viewing potential
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Generelt
- Antal skærme
- 1 pcs.
- Applikation
- Wall
- Farve
- Sort
- Display orientation
- Landscape
- Videovæg
- Nej
Funktioner
- Højdejustebar
- Ja 25mm
- sidejustering
- Ja 406mm
- Dybde justering
- Ja
- Tilt
- Ja -15°
- Drejbar
- Ja
- Roterbar/Pivot
- Nej
- Motoriseret
- Nej
- Låsbar
- Nej
Dimensioner og vægt
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x200, 600x300, 600x400
- Max vægt (pr skærm)
- 34 kg
Yderligere oplysninger
- Garanti
- 10 år
Forpakningsinfo
- Forpaknings størrelse
- 660 x 615 x 76 mm
- Forpaknings vægt
- 12,04 kg
