Description

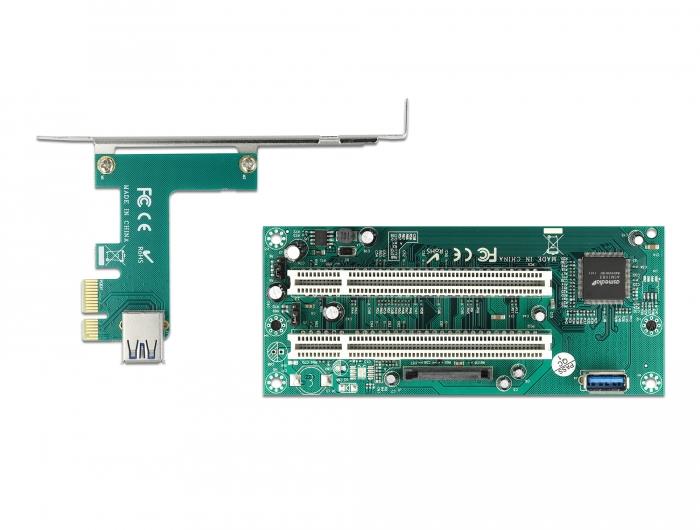

The PCI Express riser card by Delock enables the connection of two PCI cards via one PCI Express interface. The flexible cable allows a space-saving installation inside the computer case.

Note

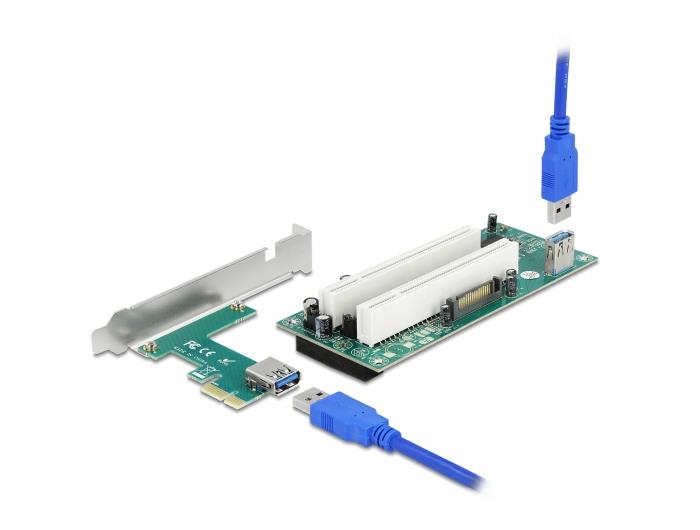

The package content includes a USB 3.0 riser cable with a length of 60 cm. No USB signals are transmitted through this cable, therefore it is not possible to exchange it with a different or longer cable.

Specification
Connectors:
Motherboard side:
1 x PCI Express x1
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
Riser side:
2 x 32-Bit PCI
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x SATA power connector
Chipset: Asmedia ASM1083
Bootable
1 x jumper for 5 V or 3.3 V setting
4 x mounting holes on the riser card
Cable data:
1 x riser cable USB 3.0 Type-A male to male ca. 60 cm (incl. connectors)

System requirements
Linux Kernel 5.4 or above
Windows 8.1/8.1-64/10/10-64/11
Windows Server 2019
PC with one free PCI Express slot

Package content
PCIe to USB riser card
USB to PCI riser card
USB cable
User manual

Package
Box



Förpackningsinfo

Förpackningsstorlek
164 x 154 x 35 mm
Förpackningsvikt
134 g
