Description

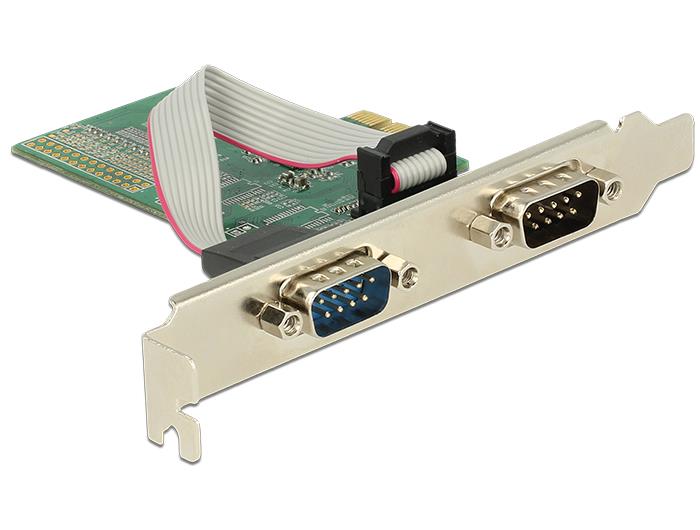

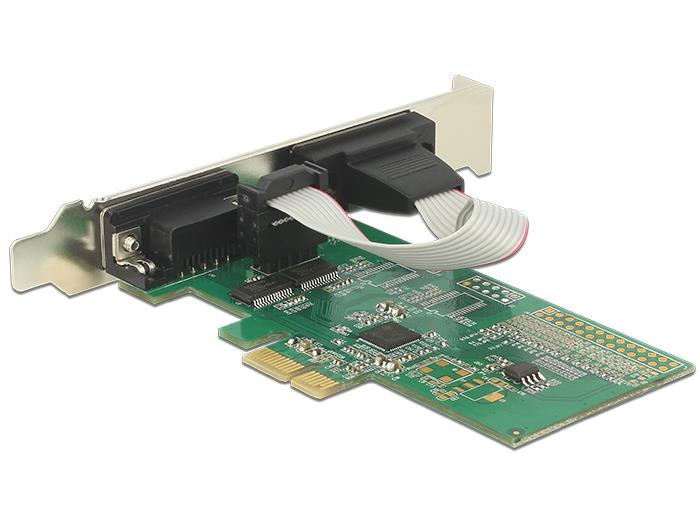

The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Specification
Connector:

  • external: 2 x serial RS-232 DB9 male
  • internal: 1 x PCI Express x1, V2.0
  • Chipset: ASIX AX99100
  • Data transfer rate up to 230.4 Kb/s
  • FIFO: 4 x 256 byte
  • Data bit: 5, 6, 7, 8, 9
  • Compatible with 16C950 UART
  • Dimensions (LxWxH): ca. 97 x 51 x 21 mm

**System requirements
**Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC with one free PCI Express slot

Package content
PCI Express card
2 x low profile bracket
Driver CD
User manual

Package
Retail Box



Förpackningsinfo

Förpackningsstorlek
205 x 151 x 30 mm
Förpackningsvikt
148 g
