Description

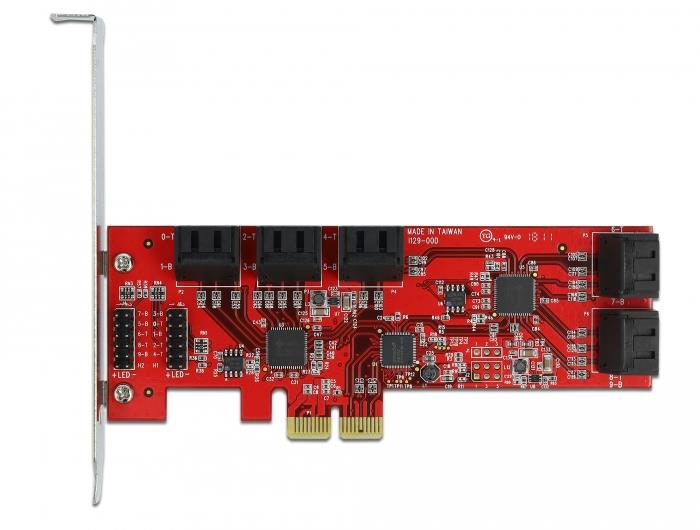

The PCI Express card by Delock expands a PC by ten internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.
Specification
- Connectors:
- internal:
- 10 x SATA 6 Gb/s 7 pin plug
- 1 x PCI Express x2, V2.0
- 12 x 2 pin pin header for LED
- Chipset: JMicron
- Supports Native Command Queuing (NCQ)
- Supports ATA, ATAPI Hot Plug
System requirements
Linux Kernel 2.6.x or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express x2 / x4 / x8 / x16 / x32 slot
Built-in AHCI support needed
Package content
PCI Express card

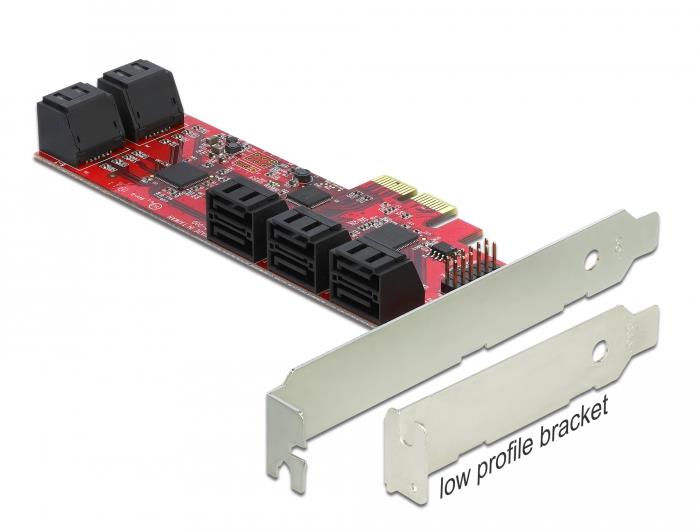

Low profile bracket
User manual
Package
Retail Box
Allmänt
- Gränssnitt
- PCIe
- Anslutning
- SATA
Förpackningsinfo
- Förpackningsstorlek
- 31 x 160 x 151 mm
- Förpackningsvikt
- 123 g
