VIA CONNECT3 is super−compact (9x9cm) and flexible to install, with both built−in Wi−Fi and LAN connectivity and includes industry−leading 1024−bit encryption for secure use on the internal network.
VIA CONNECT3 gives iOS, Android, Chromebook, PC, and Mac users instant wireless connectivity with 4K advanced presentation capabilities. The product features content streaming with crystal−clear mirrored images and stunning video playback and includes iOS mirroring via AirPlay™, Windows & Android mirroring via Miracast™, as well as Chromebook mirroring.
- 3rd party Security Certification
- Built–In isolated Wi–Fi and LAN.
- Quick and Reliable Wireless Connectivity — A simple and intuitive user interface enables iOS, Android, Chromebook, PC, and Mac device users to instantly connect to a main display without a dongle. 2.4GHz/5GHz Wi–Fi and MIMO antennas establish and maintain a fast and reliable connection.
- Clientless Connectivity — Airplay, Miracast, join through browser.
- High Quality Video Streaming — Supports up to 4K resolution (using the VIA app Multimedia feature).
- Optimized for Video Conferencing — Room devices driver feature allows users to wirelessly connect to the professional grade camera and AV in their meeting spaces easily and instantly.
- Calendar widget on the wallpaper for instant connectivity within one click.
- 3rd Party Web Applications — Run directly from the device without needing to use the application.
- Powerful Security Feature — 802.1x User authentication, 1024–bit encryption, dynamic room code.
- Comprehensive Collaboration Functionality — Whiteboard, filesharing, View Main Display, chat, etc.
- Simultaneous Display — Four participants can simultaneously present content on the main display.
- Seamless Live Video Streaming — Stream live content from meeting rooms, classrooms and studios using RTMP/RTMPS to all the leading platforms, like YouTube™, Kaltura™, Panopto™ and more.

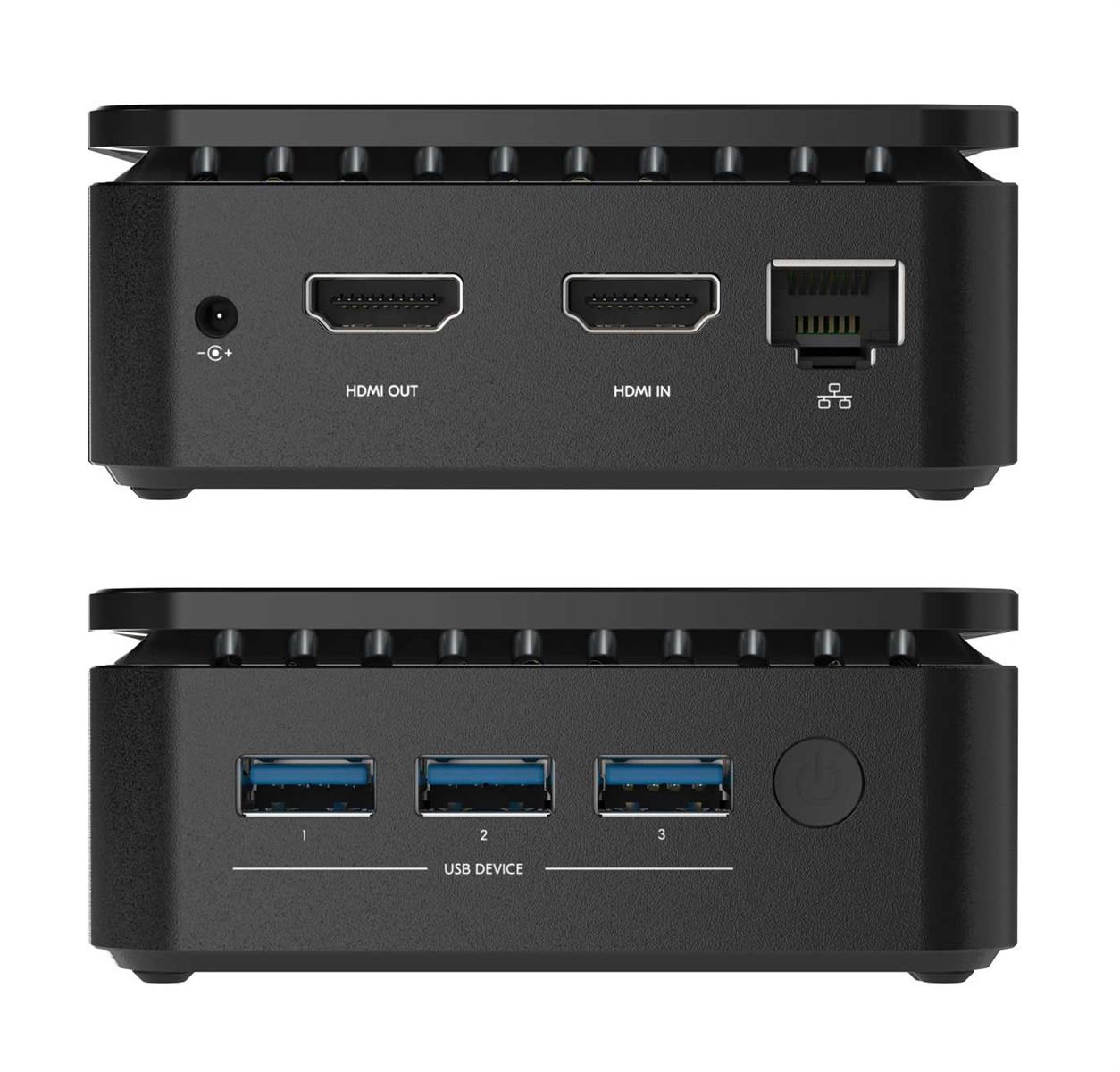

- Easy and Flexible Installation — With a super–compact 9x9cm form factor, it can be discreetly installed on the back of a display, projector or almost anywhere.
- Up to 4K@30 HDMI Wired Input — Enables hard–wiring, auto switching, for connecting a computer or any HDMI compatible device camera, multimedia player or computer that supports HDCP signals.
- Wireless USB — Supports Microphone, Speaker & Camera.
- Cloud–Based Management — Seamlessly compatible with VIA Site Management (VSM).
Allmänt
- Applikation
- Wireless Collaboration, Wireless Conferencing, Wireless Presentation
Funktioner
- Max anslutna användare
- 254 st.
- Användare på skärm
- 4 (quad view)
- Utökat skrivbord
- Ja For Windows PCs with driver installation, for Mac laptops via AirPlay
Bildspecifikationer
- Max upplösning ut
- 3840x2160 30Hz
- Max Framerate
- 30 FPS
Kompatibilitet
- Kompatibel PC
- Ja Via Win App / Miracast mirroring or via Webbrowser
- Kompatibel Mac
- Ja Via MAC App / AirPlay mirroring or via Webbrowser
- Kompatibel iOS
- Ja Via iOS App or AirPlay mirroring
- Kompatibel Android
- Ja Via Android App or Miracast mirroring
- Kompatibel Chromebook
- Ja Via Chromebook mirroring
Anslutningar
- Trådlös bilddelning
- AirPlay, Desktop App, Miracast, Mobilapp
- Dongle inkluderad
- Nej
- Kabelansluten källa
- HDMI x1 (4K 30Hz)
- Bildanslutning ut
- HDMI x1 (4K 30Hz)
- Bildanslutning ut
- IP stream (RJ-45) RTMP/RTMPS
Interaktivitet
- Touch stöd
- Ja Touchback function
- White/Blackboard funktion
- Ja Built-in Whiteboard function
- Moderatorfunktion
- Ja
Kommunikation
- Wi-Fi
- Ja 2.4GHz / 5GHz with MIMO antennas
- WiFi Standard
- 802.11 ac/b/g/n
- Dubbla/gäst nätverk
- Ja
- Nätverksintegration
- Ja
- Managerbar
- Ja via VIA Site Management (VSM)
- Säkerhet
- 802.1x User authentication, 1024–bit encryption, dynamic room code
Energi
- Strömförsörjning
- External Power Supply, 12V DC 3.8A
- Förbrukning Max
- 15,6 W
Mått och vikt
- Bredd
- 89,9 mm
- Djup
- 89,9 mm
- Höjd
- 36 mm
- Nettovikt
- 0,3 kg
Övrigt
- Medföljande Tillbehör
- Power adapter
- Garanti
- 3 år 3 year warranty for hardware, 3 year warranty for firmware and software updates
Förpackningsinfo
- Förpackningsstorlek
- 161 x 124 x 91 mm
- Förpackningsvikt
- 578 g
