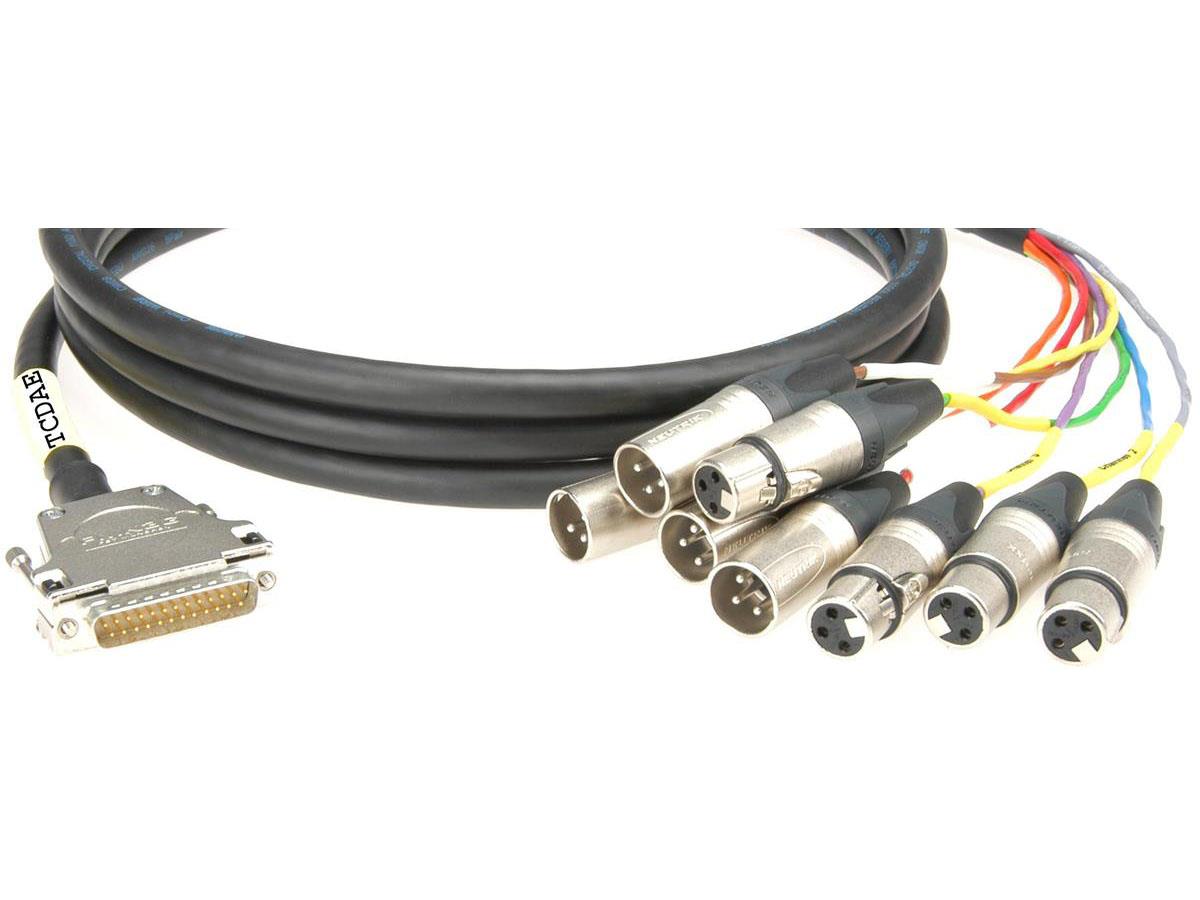

The 25-pin D-Sub connector (Male) has standard TASCAM™ configuration. The pigtails of the individual conductors are made up with XLR connectors (4x XLR 3p. male and 4x XLR 3p. female) and enclosed in an extra-strong self-extinguishing woven sleeve, so that they are suitable for use through a wide range of operating temperatures (-70 °C to +150 °C). The outer jacket has a transparent shrink sleeve at both ends for labelling as required.

• D-Sub 25p., die casted zinc alloy black, gold-plated pins
• 4/4x XLR 3p. female/male, metal shell nickel
• pinout according to AES59 standard
• with transparent heat shrink on both sides for free labeling
