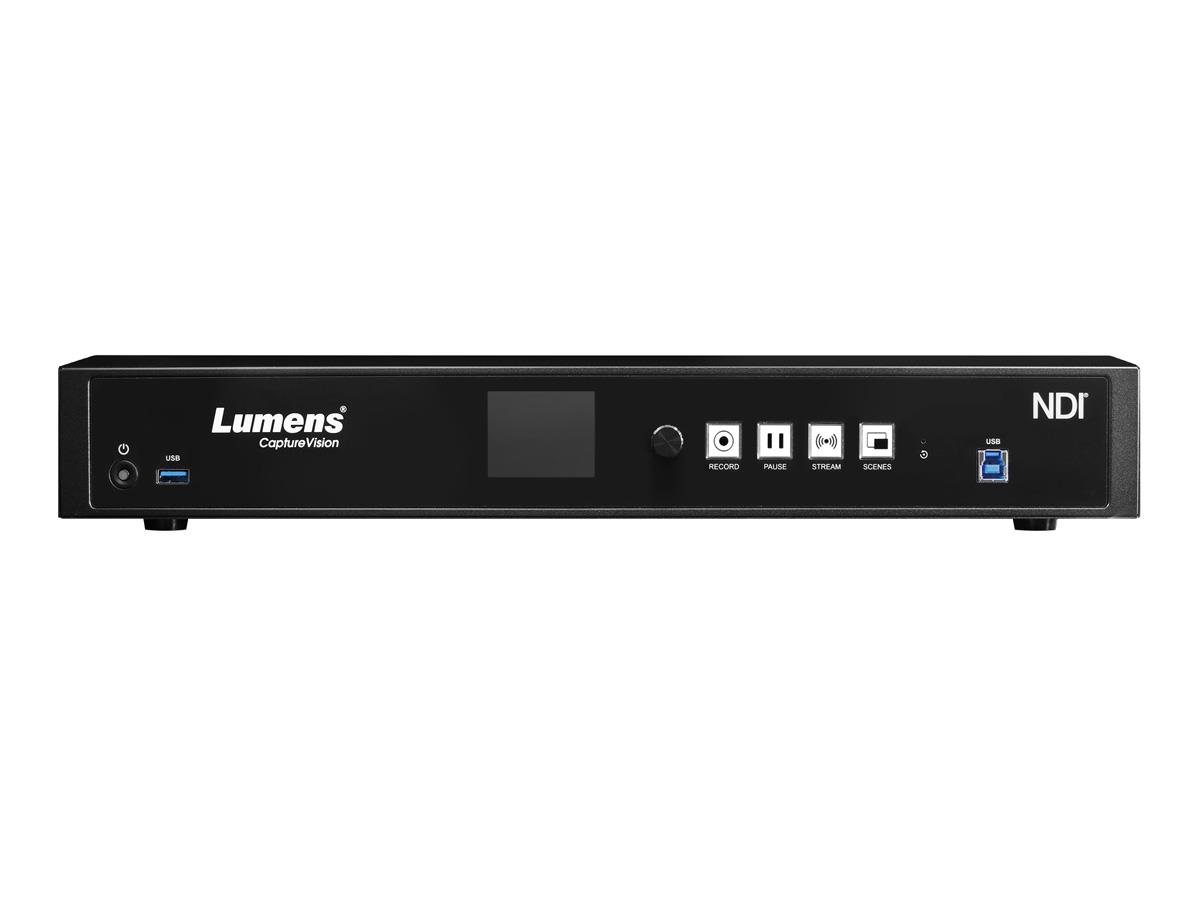

LC300S - CaptureVision System
4-Channel Recorder and Streaming Media Processor with UltraHD , NDI and 12G-SDI

  • Supports 4 video and 7 audio channels
  • HDMI, USB, 12G-SDI, IP, NDI High Bandwidth, NDI HX2 and NDI HX3 inputs.
  • 12G-SDI and HDMI loop-through
  • USB Output (UVC/UAC) for use in video conferencing
  • Dual Ethernet ports for WAN and LAN integration

Flexible Encoding Performance
LC300S****can encode four inputs at 1080 50/60P as well as the program output. This gives it powerful recording and streaming capabilities, making it well suited for multi-camera productions, interactive media, evidential archiving and enriched digital learning.

Multiple Screen Select
Outputting multiple streams simultaneously, LC300S can work with immersive video platforms. This allows the viewer to control their viewing angle, to focus on a particular presenter, or to switch to a media presentation in real-time.

Intelligent Director (Automated Production)
Intelligent Director automates production, whether it's in a meeting room, classroom, lecture hall or conference center. It recognizes the behavior of the presenter and the audience and intelligently switches camera angle to deliver a TV-like experience. AI-powered, the LC300S works in tandem with selected tracking cameras to create a multi-angle production without the need for a video crew.

NDI Eco-system
LC300S can serve as a video source switcher in an NDI eco-system, or an AV bridge that converts NDI with HDMI or USB out. It can also push video and audio to multiple streaming platforms at the same time.

Friendly Director User Interface
LC300S is feature-rich and capable of producing stunning results. The device can be managed and controlled locally or remotely, and in conjunction with third-party applications such as Panopto and Kaltura. The local interface available via HDMI is slick and highly visual, giving previews of every source, mix effects and titles, as well as the program output.

4K 60P Recording and Streaming
Future-proofed, LC300S captures UltraHD video at up-to 60 frames per second. It encodes, records and streams a single channel of 4K video. The unit supports UltraHD over its 12G-SDI and HDMI inputs and outputs, giving users the freedom to connect a variety of 4K sources.



Allmänt

Modell
LC300S
Utök. text för namn
4ch Recorder and Streaming Media Processor with UltraHD, NDI & 12G-SDI

Bildspecifikation

Upplösning
3840x2160 Out

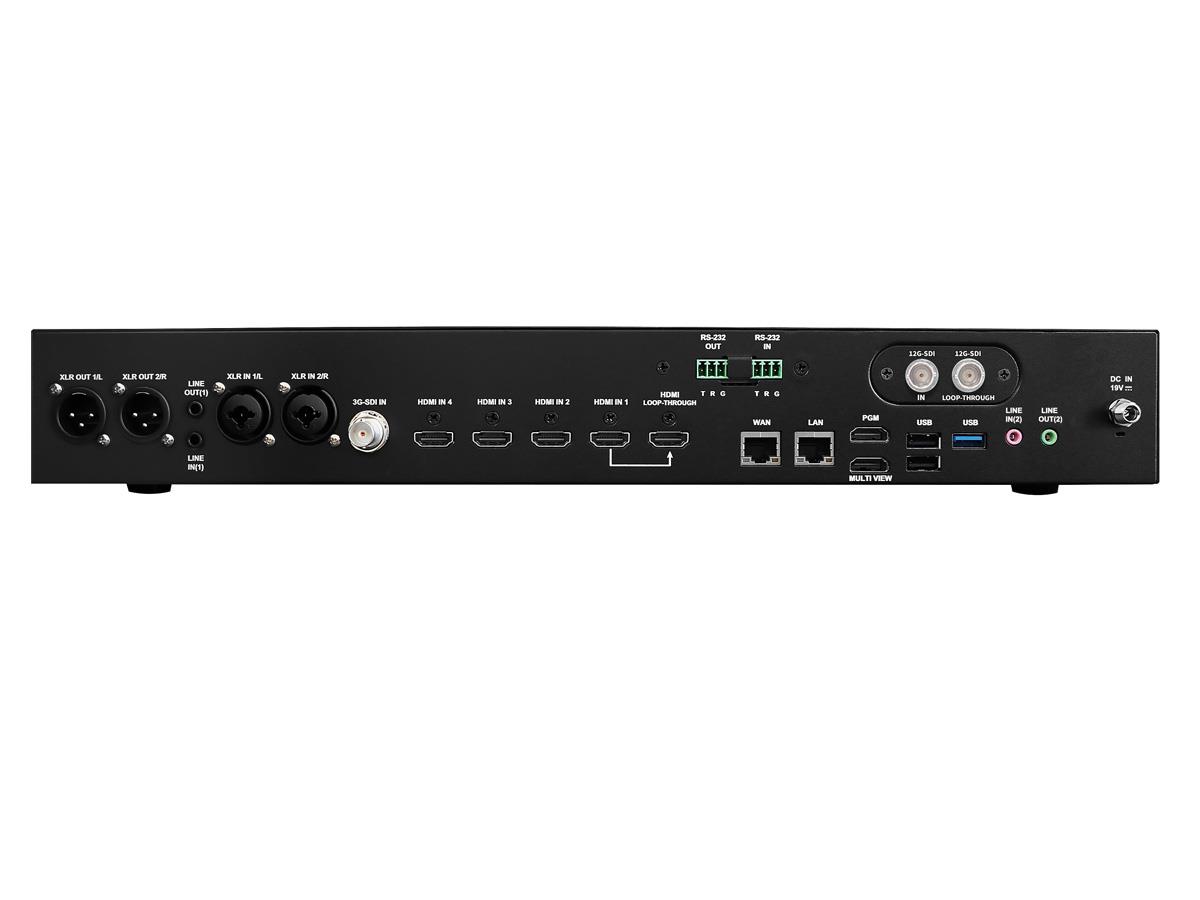

Anslutningar

Bildanslutning in
12G-SDI x1
Bildanslutning in
3G-SDI x1
Bildanslutning in
HDMI x4 (HDMI 2.0 x1, HDMI 1.3 x3)
Bildanslutning in
IP stream (RJ-45) RTSP Source (HEVC(H.265) / H.264), SRT
Bildanslutning in
NDI (RJ-45) NDI HX2, NDI HX3 Source
Bildanslutning in
USB-A USB Camera (MJPEG 1080p 30fps)
Bildanslutning ut
12G-SDI Loop-through x1
Bildanslutning ut
HDMI x2
Bildanslutning ut
USB-B UVC (up to 1080p)

Energi

Strömförsörjning
DC In , DC In , 19V / 6.8A, Max consumption 130W

Mått och vikt

Bredd
422 mm
Djup
215,5 mm
Höjd
65,5 mm
Nettovikt
3,5 kg

Övrigt

Montering
19" Rack, 1U
Medföljande Tillbehör
Power adapter, power cord, USB 3.0 cable 2m (Type B-A), RS-232 connector (x2), Mounting metal plate (x2), Mounting screews, Cable holders
Garanti
5 år
