Description

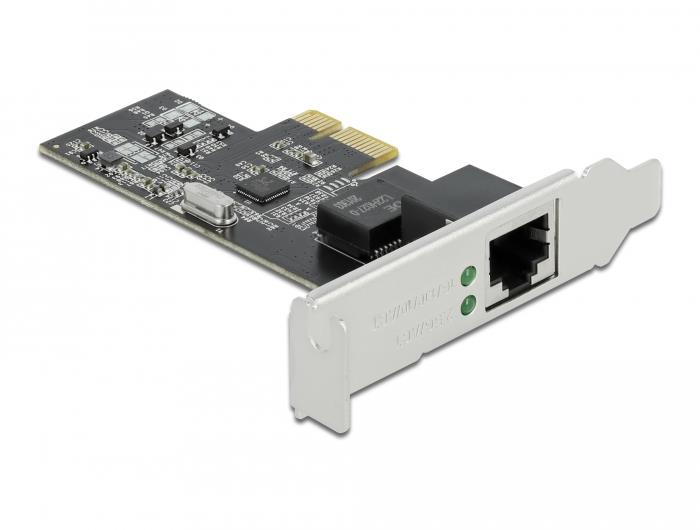

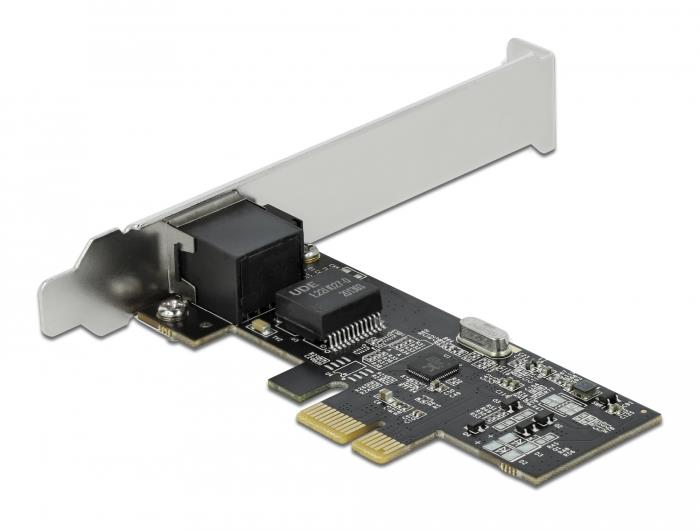

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.
**NBASE-T for higher speed
**Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
Specification
Connectors:
- external: 1 x 2.5 Gigabit LAN RJ45 jack
- internal: 1 x PCI Express x1, V2.1
- Chipset: Realtek RTL8125B
- Data transfer rate:
- Ethernet up to 10 Mbps (Half/Full Duplex)
- Fast Ethernet up to 100 Mbps (Half/Full Duplex)
- Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
- NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
- PCI Express x1 up to 2.5 Gbps
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports Wake On LAN (WOL)
- Supports IEEE 802.1P layer 2 priority encoding
- Supports IEEE 802.3x full duplex flow control
- Supports IEEE 802.1Q Virtual LAN (VLAN)
- Supports 9k Jumbo Frames
- LED indicator for link and activity
System requirements
Windows 8.1/8.1-64/10/10-64
PC with one free PCI Express slot
PCI Express card
Low profile bracket
Driver CD
User manual
Package
Retail Box
Förpackningsinfo
- Förpackningsstorlek
- 209 x 152 x 37 mm
- Förpackningsvikt
- 159 g
