Datasheet

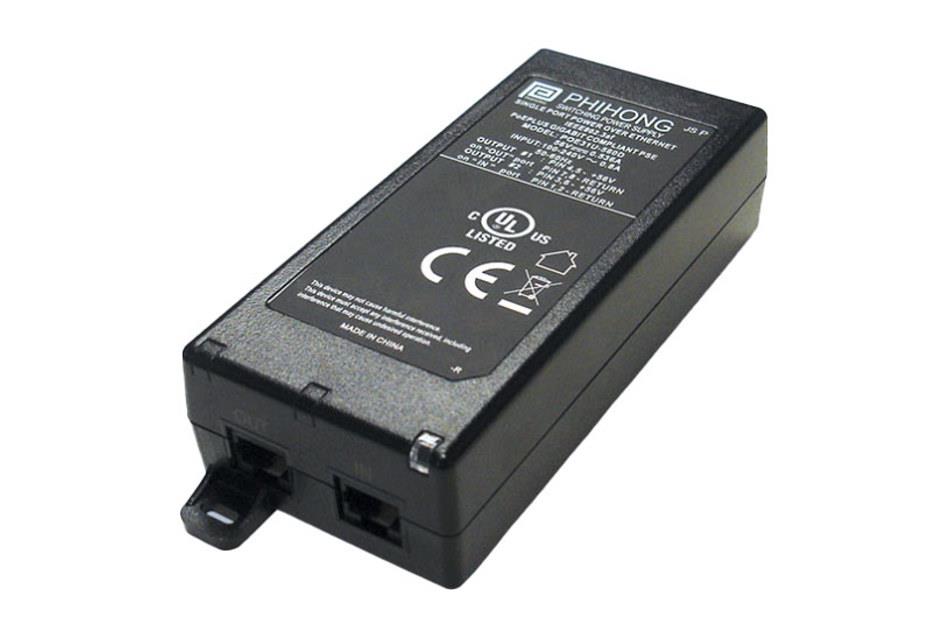

The POE90U1BT Single Port PoE Injector from Pelco is designed to meet the data rate and power requirements of IP cameras with high-quality streaming video capabilities. It provides total power output of 90W, which meets the IEEE 802.3bt standard for detection, connection, disconnection, and fault protection. It is compatible with 10/100/1000Base-T systems. This injector supports AC input voltage of 100 to 240 VAC ± 10% and an input frequency of 47 to 63 Hz. The maximum output load current is 1.6A at 56 VDC.

Features :
.

  • Diagnostic LEDs
  • Broken wire detection
  • Overcurrent and overvoltage protection
  • The output can be shorted permanently without damage
  • Power cord required for operation (available separately)


General

Farge
Svart

Størrelse & Vekt

Width
80 mm
Dypde
166 mm
Høyde
44 mm
Net weight
0,5 kg

Pakkeinformasjon

Pakkestørrelse
219 x 152 x 65 mm
Pakkevekt
757 g
Strekkode
700880440346
