10/100/1000 Mbps Intelligent Media Converter with Optional PoE+

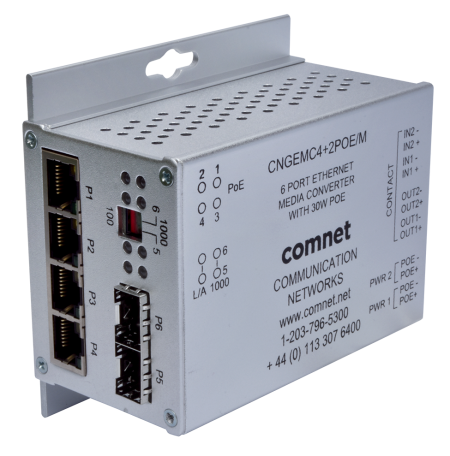

ComNet CNGEMC4+2[POE][HO]/M is a four port intelligent Media Converter. It provides four 10/100/1000Base-T(X) copper ports and two 100/1000Base-FX SFP ports. The CNGEMC4+2[POE] [HO]/M provides exclusive functionality for easy field deployment including DIP switch based operation of RSFP (redundant SFP) for creating redundant fiber connections and MUX feature for port isolation preventing network video flooding of multicast traffic. Copper ports 1 through 4 can optionally supply up to thirty (30) watts of power per port based on the IEEE 802.3at standard.
An optional High Output (HO) version is also available that can supply up to sixty (60) watts of PoE from copper ports 1 through 4. This product is fully compatible with the ComNet exclusive CopperLineĀ® SFP modules for operation over extended distance UTP or Coax cable. The ComNet exclusive Port Guardian feature provides additional cybersecurity protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques.
