Experience Flexible 4K Streaming & Recording
Leveraging ever-expanding IP networks to push and pull content, networked technologies make it easier than ever to meet the growing demand for increased capacity and any-to-any connectivity. Compressed H.264 technology meets almost every need and requirement for quality, low bit rate streaming and recording—including 4K—and allows for multiple streams of almost every type of content to be delivered over standard 1 Gigabit Ethernet networks.

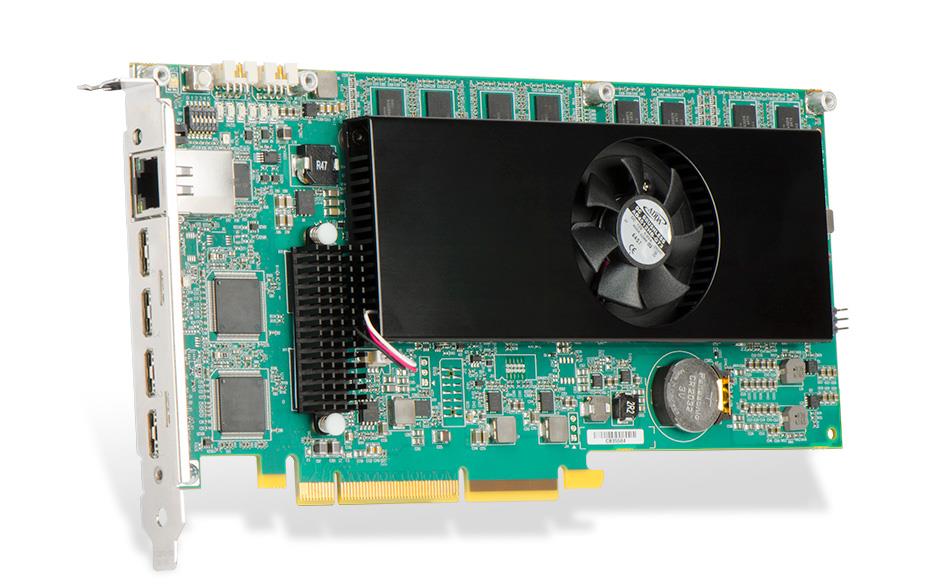

The Matrox Maevex 6100 Series is the next generation in Matrox’s AV-over-IP portfolio—the world’s first to deliver quad 4K input capture and encode for real-time streaming and/or recording four or more 4K/UHD and Full HD channels simultaneously. Ideally suited for process control, digital signage, military, healthcare, government, education, and other applications, the Maevex 6100 Series is available in two convenient form factors—Maevex 6100, a single-slot, high-density quad encoder card and Maevex 6150, a system-independent, standalone quad encoder appliance with zero-latency pass-through for each input.
Built on H.264, Maevex 6100 Series plug-and-play solutions fit seamlessly into existing infrastructures and interoperate with virtually any H.264 decode device, ensuring high-density content distribution and system scalability. Robust Matrox PowerStream Plus software—the market’s most advanced AV-over-IP software tool—completes the solution and provides flexible management of local or remote data across the entire network.
General
- Extender type
- Transmitter (Tx)
- Technology
- H.264 /MPEG-4 Part 10 (AVC)
Video specifications
- Max supported resolution
- 3840x2160 2x 3840x2160 @60Hz or 4x 3840x2160 @30Hz
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- Yes
- Video operation modes
- P&P - Split screen, PiP - Picture in Picture, Quad view - 4 split
Connections
- Video in
- HDMI x4 Mini HDMI (Type C)
- Video out
- IP stream (RJ-45)
- USB passthrough
- No
Communication
- Req. Network Switch
- 100/1,000 base-T Ethernet
Energy
- Power Supply
- 35w consumtion
Dimensions and weight
- Net weight
- 0.3 kg
Additional information
- Warranty
- 2 years limited warranty with free online or telephone support
