A new class of computing for simple and flexible signage
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 7th generation Intel® Core™ i processors deliver crisp 4K UHD playback through a new class of computing power available on our next generation
of OPS Slot-in computing. Configuring the Slot-in PCs to meet customers’ demands with a tailor-made solution is easy through a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi, TPM and 4G connectivity. The majority of NEC Large Format displays plus PX and PH Installation projectors feature the OPS option slot for seamless integration.

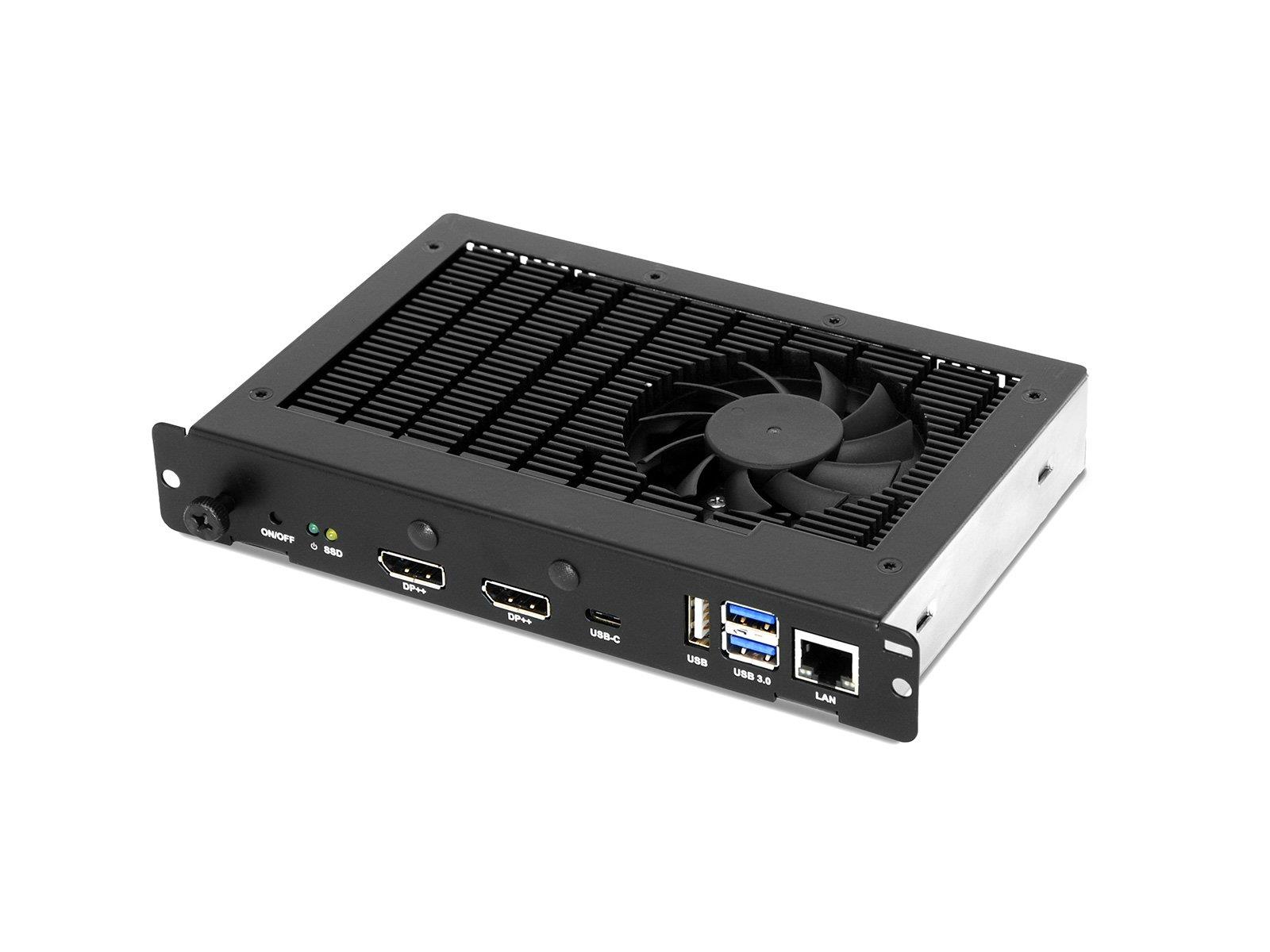

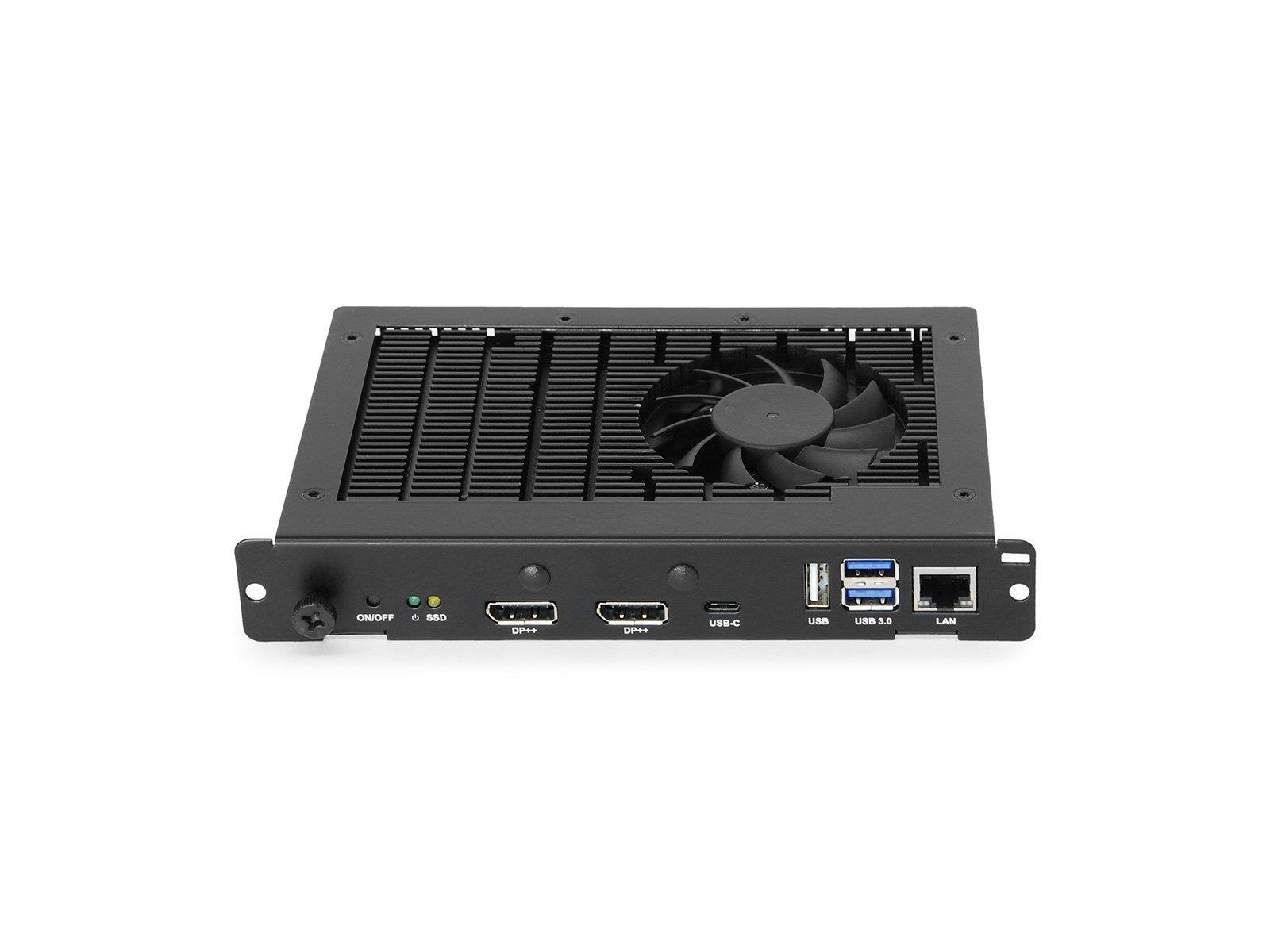

Format: OPS Slot-in PC; Processor: Intel Kaby Lake 7th gen. Core i7- 7820EQ 8M Cache; 4x 3.0 Ghz; vPro; intel HD Graphics 630; 16GB dual channel RAM; 256GB SSD; /W10pro; WiFi; Trusted Platform Module (TPM); Model: B; [Interfaces: 2x USB 3.0 , 1x USB 2.0; 1x USB -C; 1x Ethernet RJ45; 2x Displayport] Compatible with Standalone Adapter (100013143)
General
- Operating System
- Win 10 Pro
Processor
- CPU Model
- Core i7- 7820EQ Intel Kaby Lake 7th gen.
Memory
- Memory
- 16 GB
Graphics
- GPU Model
- Intel HD Graphics 630
- Video memory
- 16 GB
Storage
- Storage type
- SSD
- Storage size
- 256 GB
Connections
- DisplayPort
- Yes x2
- USB type-A
- Yes x3
- USB type-C
- Yes x1
Communication
- Ethernet
- Yes
- Wi-Fi
- Yes
Packaging info
- Packaging size
- 260 x 190 x 70 mm
- Packaging weight
- 1,000 g
