LED S-Box
LED Signage Box (S-Box) condenses the delivery of content to a single, centralized device. The S-Box transmits FHD content across multiple LED displays without requiring external boxes or splitters, helping businesses enjoy a faster and more cost-efficient operations.
MagicINFO solution
Compatibility with the MagicINFO solution enables the S-Box users to create, schedule and deploy content across an entire display network. Users likewise can monitor and adjust display settings and troubleshoot potential performance issues from any locations via remote access.
Key Features:
• FHD ResolutionSupport
• S-Box Grouping (Framelock) not supported
• Maximum 3m image transmission through direct connection of OCM cable
• LED HDR –FHD Dynamic peaking only
• HDR10, IPv6 Support
Compability:
IE025R, IE025R-F, IE040R, IE040R-F
Video specification
- Resolution max out
- 1920x1080
- Refresh rate
- 60 Hz

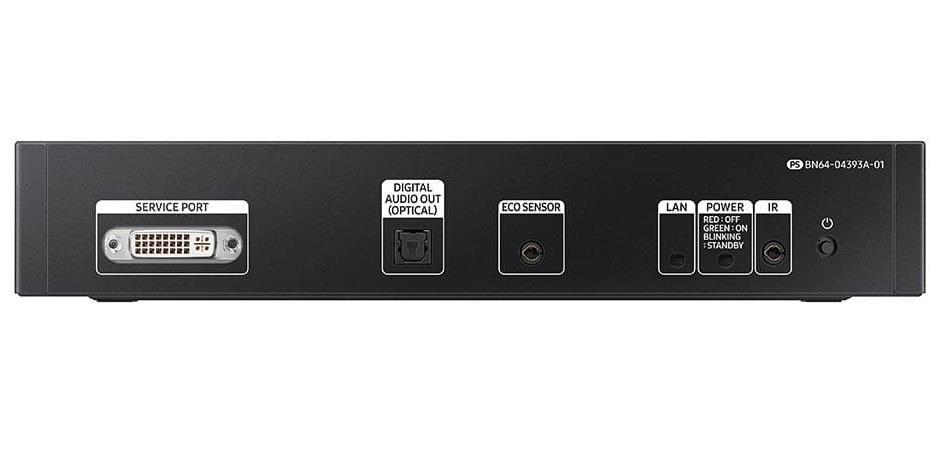

Connections
- Video inputs
- 1
- Video outputs
- 1
- Video in
- HDMI
- Audio outputs
- Optical Digital
Functions
- Control
- Ethernet/IP (RJ-45), RS-232
Energy
- Power Supply
- DC 14V External Power Supply, Power Consumption; Max 21W
Dimensions and weight
- Width
- 253.6 mm
- Depth
- 153.8 mm
- Height
- 45 mm
- Net weight
- 1.1 kg
Additional information
- Installation
- Freestanding/Shelf
Packaging info
- Packaging size
- 224 x 352 x 167 mm
- Packaging weight
- 2.30 kg
