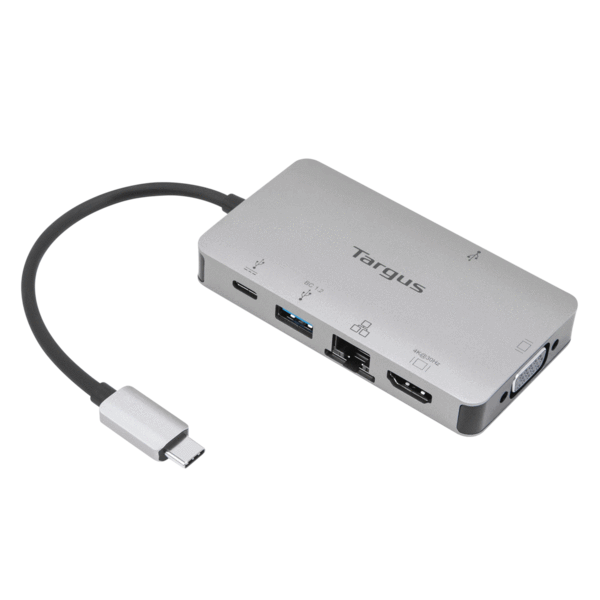

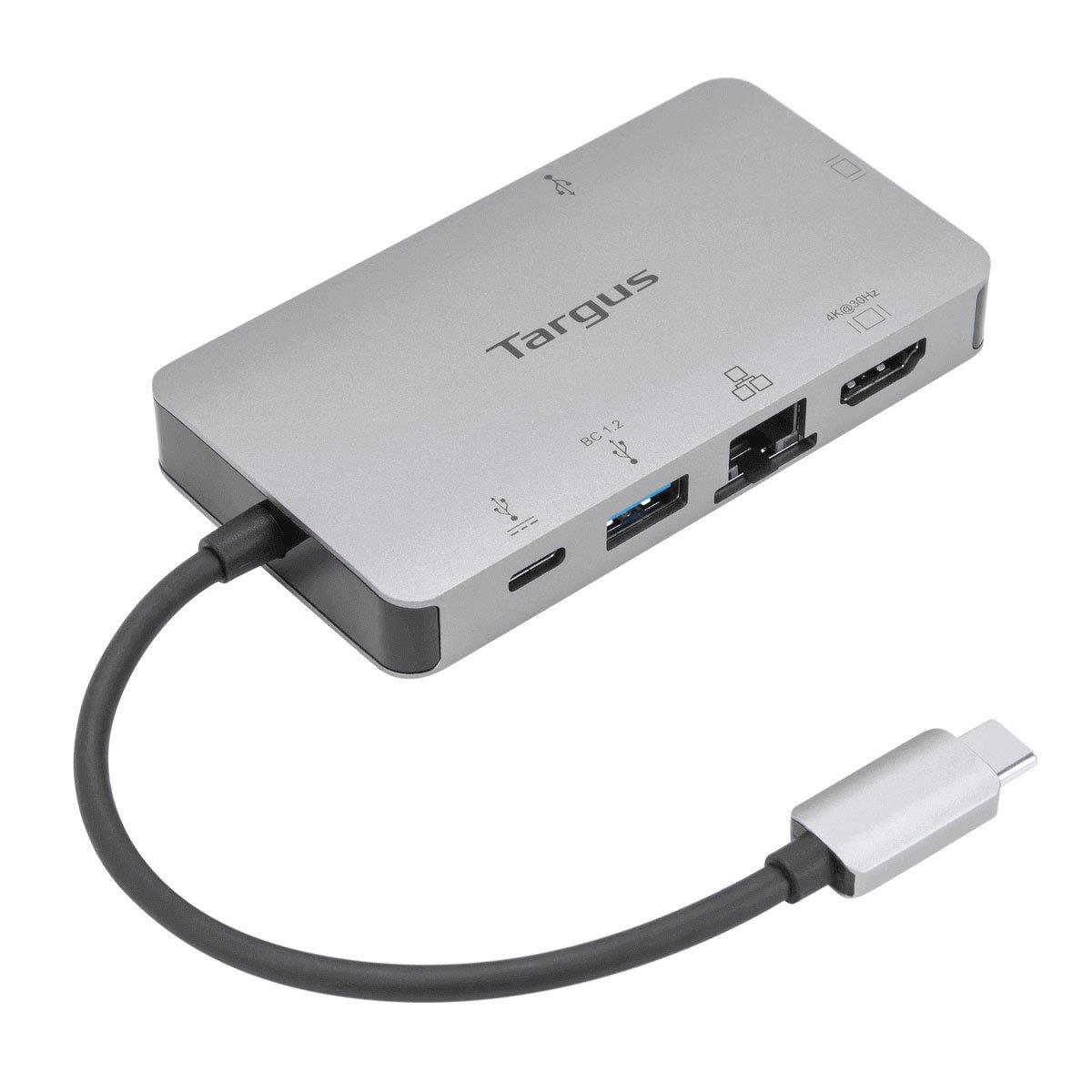

USB-C DP Alt Mode Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru

  • Connect one external HDMI display (max resolution 4K@30Hz) or one VGA display (max resolution 1920x1200@60Hz)*
  • Connect quickly and securely to the internet with the Gigabit Ethernet port
  • Add 2 USB-A 3.2 Gen 1 ports (1 fast charging)** and 1 USB-C 3.2 Gen 1 port to your host
  • Supports up to 5Gbps data transfer rate per USB-A or USB-C port
  • Connect a USB-C device or power adapter to the USB-C port
  • USB-C (3.2 Gen 1 SuperSpeed 5Gbps) port supports power delivery pass-through***
  • USB-C (3.2 Gen 1 SuperSpeed) connector supports power delivery up to 100W upstream**** and Power Delivery 3.0 Fast Role Swap*****
  • Thunderbolt™ 3 host compatible
  • Windows®, MacOS®, Chrome OS™ compatible
  • 2-year warranty

Turn your laptop into a workstation with the compact USB-C DP Alt Mode Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru.

Connect your USB-C-enabled devices to a single HDMI or VGA display, while also connecting to a Gigabit Ethernet network, and plugging in your key peripherals – like mice, keyboards, flash drives or hard drives – into the USB-A and USB-C ports. You can even keep your laptop charged and powered by connecting your laptop’s USB-C power adapter to the USB-C port on the dock.

It supports up to 100W (20V/5A) charging max. This dock also provides transfer speeds up to 5Gbps per port. Compact and lightweight, it’s easy to take it along with you anywhere you go.

HD or 4K UHD Display
Whether you want to run a presentation on a larger display or use an external display, this single video docking station supports either one VGA display up to 1920x1200@60Hz or one HDMI display up to 4K@30Hz.

Connectivity Made Simple
Enhance your productivity and connect to more with 2 USB-A 3.2 Gen 1 ports (1 fast-charging) and 1 USB-C 3.2 Gen 1 port.

Charge and Power Host Device
With up to 100W Power Delivery pass-through, this dock allows you to power and charge your USB-C laptop or host simply by connecting the laptop’s power adapter into the USB-C port. Great for those laptops with only one USB-C port.

Perfectly Portable
Slim and light, this dock is perfect for the home, office or anywhere in between. Great for mobile workers or those in hoteling or hot-desking environments.

Plug and Play Simplicity
With no need for additional software, this adapter easily attaches to your USB-C or Thunderbolt™ 3 host device (e.g. laptop) to help you connect to a wired network, more peripherals, and transfer data.



General

Maximum Power
100 W Pass-Thru
Compatibility Mac
Yes
Compatibility PC
Yes
Compatibility Chromebook
Yes

Connection

USB/Data connection from
USB-C
HDMI
Yes 1x (max resolution 4K@30Hz)
VGA
Yes 1x (max resolution 1920x1200@60Hz)*
Ethernet
Yes Gigabit Ethernet Port
Thunderbolt
Yes Thunderbolt™ 3 host compatible
USB-C PD
Yes 1x USB-C 3.2 Gen 1 port to your host
USB type-A
Yes 2x USB-A 3.2 Gen 1 ports (1 fast charging)

Additional Information

Color
Grey
Warranty
2 years Limited 2-Year Warranty

Packaging info

Packaging size
155 x 25 x 91 mm
Packaging weight
122 g

Packaging info (20 pcs)

Packaging size
322 x 277 x 120 mm
Packaging weight
2.94 kg
Barcode
25051794030338
