Description

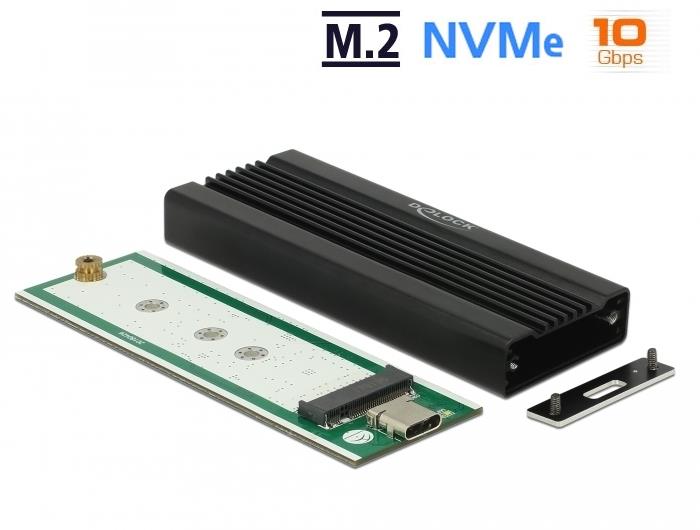

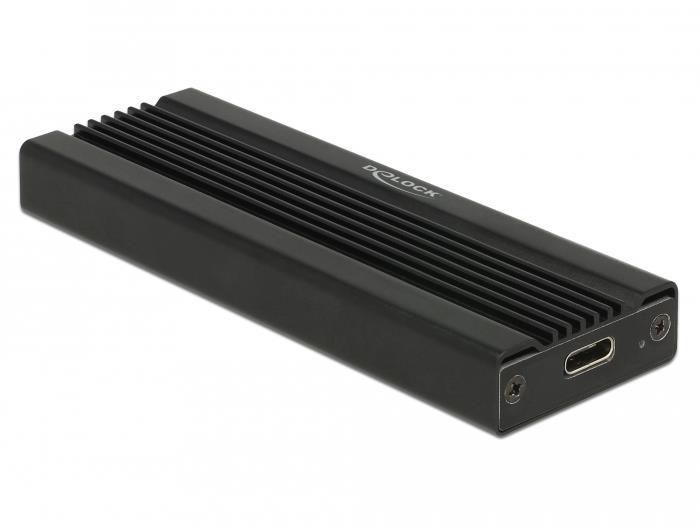

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, it can be connected via USB to the PC or laptop. The robust metal housing with cooling fins on the top ensures an optimum temperature of the memory.
Note
There is no support for SATA M.2 SSD.
Specification
- Connectors:
- external:
- 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
- internal:
- 1 x 67 pin M.2 key M slot
- Chipset: JMicron JMS583
- Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
- key B+M based on PCIe (NVMe)
- Maximum height of the components on the module: 1.5 mm,
- application of double-sided assembled modules supported
- Supports NVM Express (NVMe)
- Bootable
- Data transfer rate up to 10 Gbps
- LED indicator for power and access
- Dimensions (LxWxH): ca. 102 x 34 x 12 mm
- Hot Plug, Plug & Play
System requirements
Chrome OS
Linux Kernel 4.6 or above
Mac OS 10.13.3 or above
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC or laptop with a free USB Type-C™ port
Package content
External enclosure M.2
Screwdriver
Mounting material
Cable USB-C™ male to USB-C™ male, length ca. 30 cm
1 x thermal pad
User manual
Package
Retail Box
Ports
- USB type-C
- Yes
Dimensions and Weight
- Width
- 34 mm
- Height
- 12 mm
- Depth
- 102 mm
Additional Information
- Form factor
- M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
- Operating System
- Chrome OS, Linux 4.6 or above, MacOS 10.13.3 or above, Windows 10/7/8/8.1 32/64-bit
- Data transfer speed
- 10 Gbit/s
- Included Accessories
- USB 3.2 Gen 2 cable (C-to-C) 30 cm, screwdriver, mounting material, 1 x thermal pad, user manual
- Color
- Black
Packaging info
- Packaging size
- 164 x 101 x 25 mm
- Packaging weight
- 105 g
