- The cabinet features a highly integrated, lightweight, and streamlined design with a magnetic butterfly-frame, enabling fast horizontal splicing and flexible combinations.
- Incorporates proprietary lossless image processing and ultra-low grayscale control technologies, delivering delicate, smooth visuals and outstanding dynamic color performance.
- Supports multiple remote content management methods, including local control, USB drive input, and PC-based operation.
- Fully self-developed display control system ensures end-to-end stability, security, and controllability. System modules can be easily maintained or replaced, with front-access LED modules supporting single-pixel repairs.
- Allows for multi-unit cascading display with a built-in sending card, eliminating the need for external control devices.

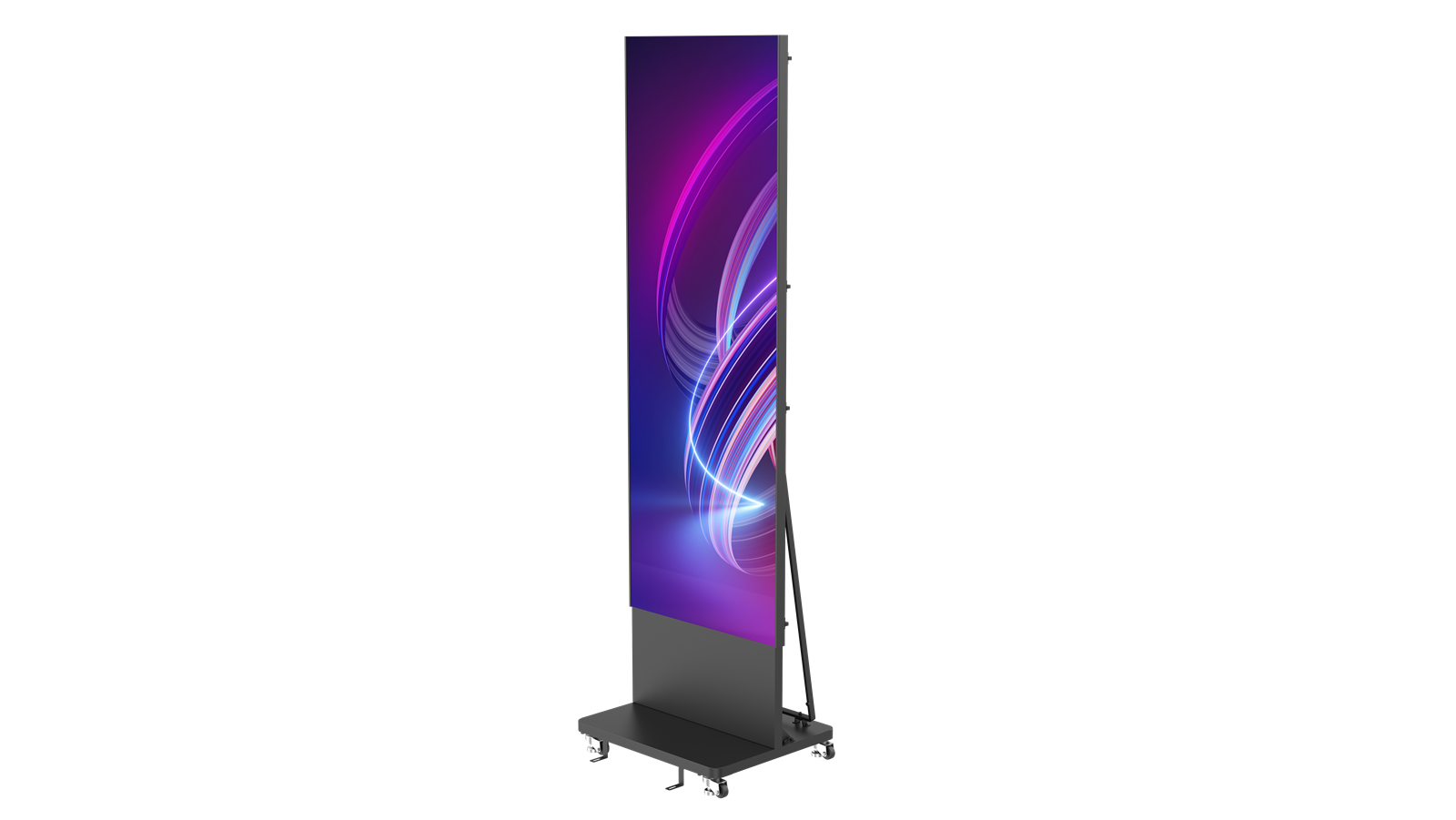

- Multiple installation options available: built-in angled support bracket, mobile stand, wall mount
- Optimized for close-range viewing scenarios with HOB LED panel protection, offering enhanced resistance to moisture, impact, and environmental stress.
- Supports multiple configuration methods including local remote control, software, and web interface, offering more convenient operation.
Display
- Display Resolution
- 320x900
- Pixel pitch
- 1.8 mm
- Diode Type
- SMD Triad LED (with glue)
- Refresh rate
- 3,840 Hz
- Brightness (Max)
- 600 Nits
- Viewing angle
- 160 °
LED Module/Cabinet
- No. cabinets/display (WxH)
- 5
- No. modules/cabinet (WxH)
- 2x2
Energy
- Power Supply
- 100~240 VAC ± 10％
- Consumption Max/m2
- 430 W
Dimensions and weight
- Width
- 600 mm
- Height
- 1,687.5 mm
- Depth
- 29.5 mm
Additional information
- Service access
- Front service
- Operating Temperature min
- -10 Celsius
- Operating Temperature max
- 40 Celsius
- Included Accessories
- 50 LED lamp beads, 10 IC chips, 1 network cable, 1 power cable, 1 HDMI cable, 1 multilingual user manual, 1 remote control, 1 magnetic adjustment rod, 1 cable clip, 1 Phillips screwdriver, 1 hex key wrench, 1 power cable, 2 spare LED modules, 1 spare HUB Board
