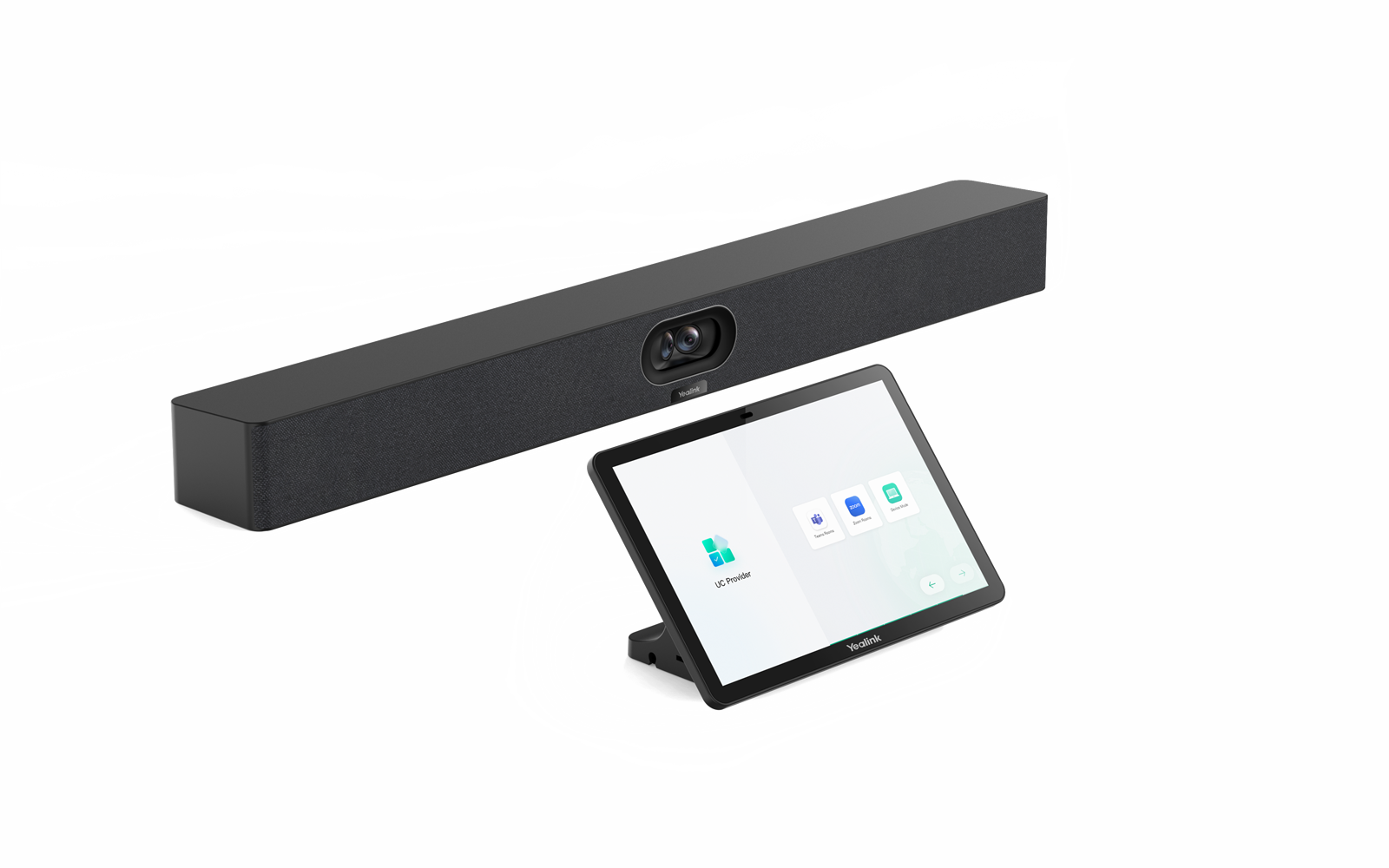

All-in-One, Plug-and-Play
The UVC40 features a high-quality AI-powered camera, microphone arrays and speaker, all of which are integrated into a single device to create an elegantly streamlined audio-video meeting endpoint, combining a highly compact design with rich camera performance.
Thanks to USB plug-and-play capability, built-in Wi-Fi module and broad applicability with mainstream video conference platforms, this elegant device is easy to use and flexible enough for work, home or school.
Key Features
- Ultra HD picture quality
- High-quality audio pickup experience
- Compatible with Microsoft's MDEP
- Multi-Platform Flexibility
- Simple deployment
- Remote device management
- Ultra HD picture quality
Get started with the UVC40 - BYOD
Simply mount the device underneath a TV monitor, on a wall or tabletop, and plug it into your PC and get ready for the meeting. The device can be remotely managed by Yealink Device Management Platform by switching on Wi-Fi.
AI-powered Camera
The premium 20-megapixel camera with ultra-wide-angle lens and Auto Framing feature helps put everyone in frame and captures every meeting in detail. The UVC40 creates more engaged and interactive meetings for the participants thanks to AI-powered voice tracking features that allow the device to switch automatically between active speakers.
8 MEMS Microphone Array
With Yealink Noise Proof Technology, dereverberation and full-duplex features, the built-in 8 MEMS microphone array and speaker allow users to hear and to be heard clearly and without distraction.
Creative Electrical Lens Cap
The electric lens cap is designed for privacy protection. It can be turned on or off automatically according to the meeting status. When a meeting ends, the shutter automatically closes.
CTP25 Touch console
The CTP25, a cutting-edge touch console specifically designed for meeting control. With its user-centered interactive design and a 10.1-inch touchscreen, users can effortlessly join and manage meetings with ease. Say goodbye to the complexities of video conferencing as CTP25 simplifies the process, delivering an enhanced meeting experience. It seamlessly integrates essential meeting functions, including direct connection to the system, screen sharing, BYOD, and PD charging capabilities. Elevating communication efficiency to new heights.
Key features CTP25
- 10.1 inches, and ultra-high screen-to-body ratio
- Support Android 13 (continue to update)
- MDEP Supported（in September）
- USB-C wired content sharing/BYOD/power
- Ultrasonic technology
- Multiple deployment methods
General
- Application/Certification
- H.323, Microsoft Teams Room
- Application/Certification
- USB BYOD Device mode
- Application/Certification
- Zoom
- Platform/OS
- Android Android 13 OS
- Room Size
- Medium room 4-8p
- Room Size
- Small room 3-6p Up to 8 people
Camera
- Camera type
- Video soundbar
- Resolution
- 3840x2160 60 Hz
- Framerate
- 60 FPS
- Optical zoom
- 0 x
- Digital zoom
- 6 x
- Field of view (horizontal)
- 110 ° 120 degrees diagonal FOV
- Programmable presets
- Yes 9 presets
- Auto framing/tracking
- Yes Intellifocus, Auto Framing, Speaker Tracking, People counting, Multi-focus Framing, Picture-in-Picture, Smart Gallery (Zoom only)
Audio specifications
- Built-in microphone
- Yes 8 element MEMS microphone array
- External microphone
- Yes VCM35 (Up to 2), VCM36 (Up to 2) as Expansion Mic. CM20 (Up to 2) as External Mic
- Audio pickup range
- 6 m 4-meter high-quality pickup distance
- Built-in speaker
- Yes 2x 10W speakers with frequency response: 80-18KHz and Max SPL 112dB
- External speaker
- Yes CS10 (Up to 2)
Communication
- Ethernet
- Yes 10/100/1000 M Ethernet
- Wi-Fi
- Built-in Wi-Fi 6, Dual-band 2,4 / 5 GHz, 802.11a/b/g/n/ac/ax
- Content sharing
- Yes, via USB-C connection to CTP25
- Wired BYOD
- Yes, via USB-C connection to CTP25
Connections
- Video in
- USB-C Wired content sharing / BYOD / Power delivery PD2.0 up to 45W (via CTP25)
- Video out
- HDMI x2 For Dual Display Support, with CEC support
- Audio inputs
- 3,5mm tele
- Audio inputs
- Mic port (RJ-45) 1x Yealink VCH port for external/expansion mics (future functionality)
- Audio outputs
- 3,5mm tele
- USB connection
- USB-A
- USB connection
- USB-C Wired content sharing / BYOD / Power delivery PD2.0 up to 45W (via CTP25)
- USB standard
- 2.0
Energy
- Power Supply
- External Power Supply. Power Adapter: AC 100~240V input
Dimensions and weight
- Width
- 650 mm
- Depth
- 62 mm
- Height
- 80 mm
- Net weight
- 5.54 kg
Additional information
- Color
- Grey
- Included Accessories
- A40 Meetingbar, 2x HDMI cable, Network cable, TV-Clip mount, wallmount, CTP25 touch console, 7,5m Ethernet cable, 1,2m USB-C cable, Power Adapter (65W), Screwdriver, High stand, Cable management cover, 10x M3 screws, 5x Cable ties, QSG
- Warranty
- 3 years
Packaging info
- Packaging size
- 700 x 308 x 245 mm
- Packaging weight
- 6.03 kg
