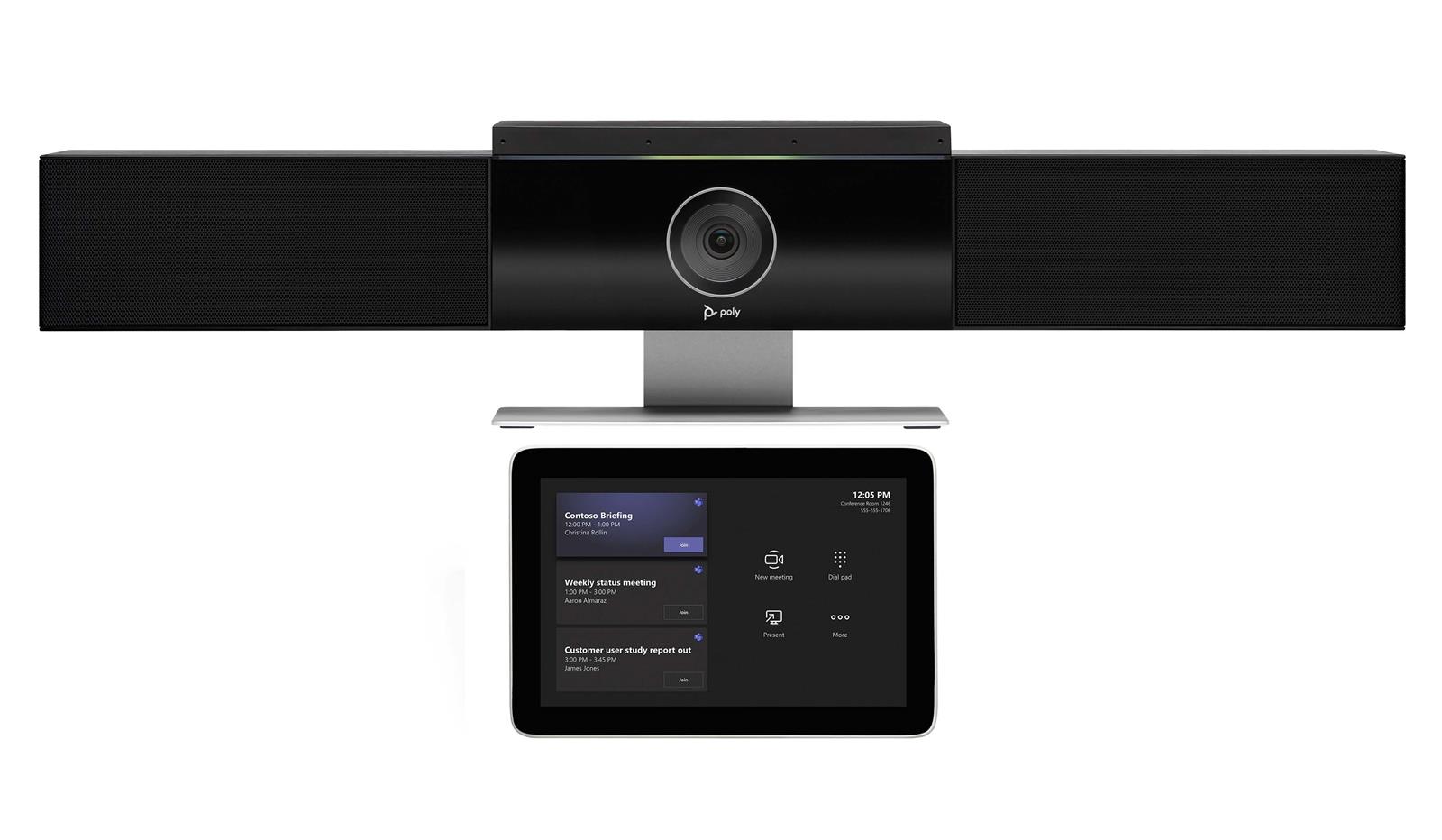

POLY ROOM SOLUTIONS FOR MICROSOFT TEAMS ROOMS ON WINDOWS

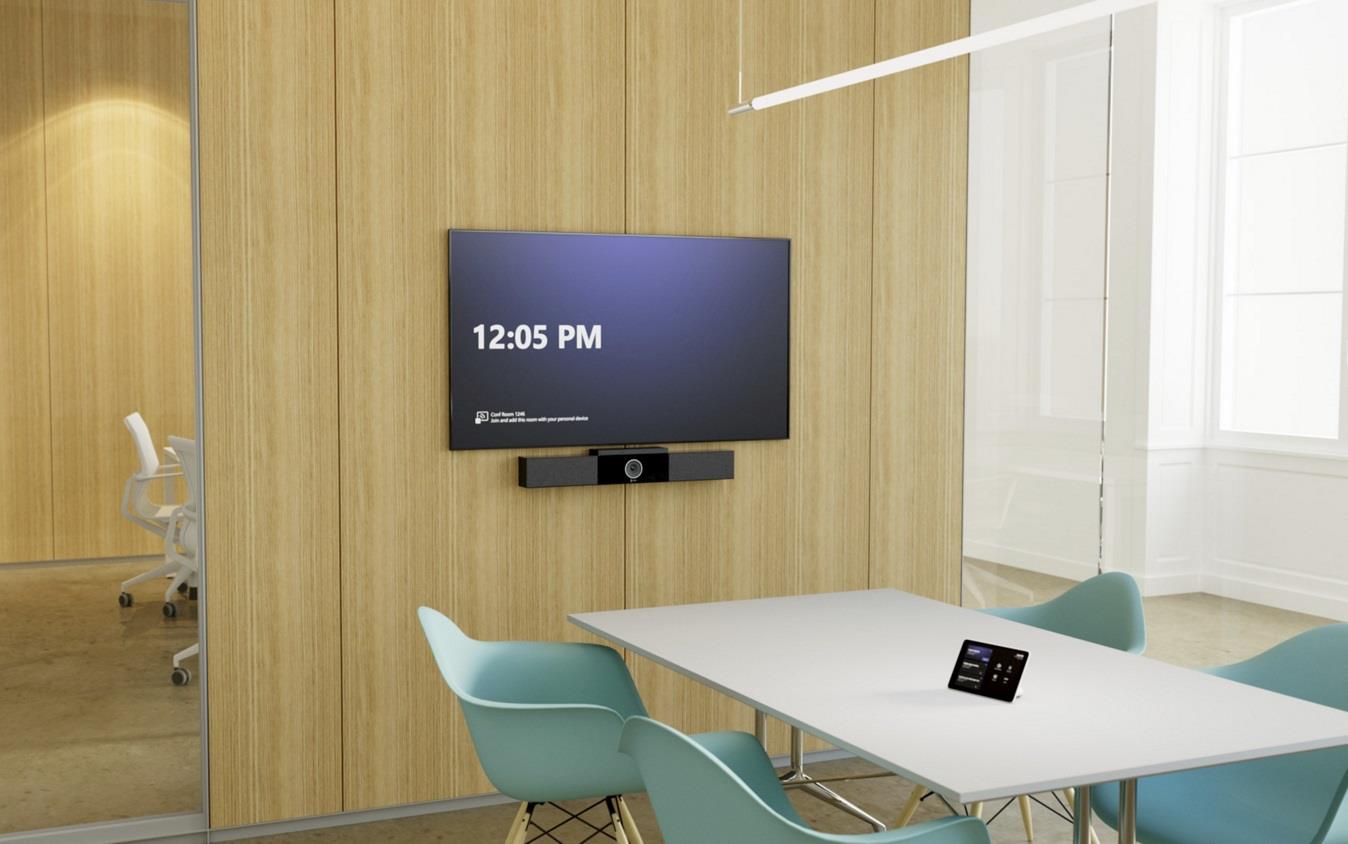

Poly Studio Room Kits for Microsoft Teams Rooms on Windows deliver a simple, clutter free user experience with brilliant video and audio features for focus rooms all the way up to large boardrooms. All-in-one video bars free up the conference table surface especially in smaller rooms, while the tabletop touch controller connects to the dedicated collaboration PC securely stowed in the cabinet or on the wall with a single cable.
• For Small to Medium Rooms (4,5m x 6m)
• Pinpoint-accurate speaker tracking and professional-quality group framing from
Poly DirectorAI technology
• Prevent distracting noises and side conversations from interrupting your meetings with Poly NoiseBlockAI and Acoustic Fence technology
• Choice of PCs from world-renowned manufacturers like Lenovo and Dell
• All Poly Studio Room Kits are clutter-free and simple to set up. Keep your meetings rooms neat. Tuck the compute appliance in a cabinet or behind the monitor and set the touch controller on a conference table
• Arrange the conference room to fit your needs with the generous 10m USB cable (25m/40m
options available)
• For content sharing, connect a PC to the Poly GC8 via HDMI (cables found under "accessories" tab)
• A USB speakerphone can also be connected to the Poly GC8 (Option)
Note!
• The room display needs to support/enable CEC (Consumer Electronics Control) feature of HDMI so that it can switch automatically to an active video source from standby mode.
• The system needs Ethernet connection, Wi-Fi is not adviced to use.
• When using 4K/UHD displays a EDID Emulator (option) is needed. For example Kramer PT-1C (see accessories).
For more information, read attached document "Known Issues".
POLY STUDIO
• You’ve never heard a USB video bar sound this good-Poly Studio has the absolute best audio quality and voice clarity in its class
• Distracting sounds are eliminated by our patented NoiseBlock technology-and this is the only USB video bar that does it
• Be more productive on both ends of your video conference with a smart camera that automatically frames the room or tracks the person speaking for deeper engagement
• Eliminate “sneakernet” with centralized management, enabling high-scale deployments without added burden on IT.
Key Features:
• 4K camera with integrated privacy shutter
• 120° Diagonal Feald of view
• Automatic camera framing (Max 5x dig zoom)
• 3x Microphone array with up to 3,7m pickup range
• Built-in Stereo speaker
• Active Echo Cancellation
• Poly NoiseBlockAI
• Poly Acoustic Fence
Mandatory support
From 1/7-2022 min. one year of support is required for each unit of Poly Room Kit Family, incl. Poly GC8.
• Recommend Poly+ three-year.
• Support must be ordered with hardware.
• Gives customers the best experience and assured 24/7 support and advance parts replacement.
• Includes coverage for up to three years on the Poly Room Kit PC.
• Options for year four and five available.
General
- Application/Certification
- Microsoft Teams Room
- Platform/OS
- Windows
- Room Size
- Medium room 4-8p, Small room 3-6p
Camera
- Camera type
- Videobar
- Resolution
- 3840x2160 (Requires USB 3.0 cable)
- Optical zoom
- 0 x
- Digital zoom
- 5 x /EPTZ with Auto-Framing
- Field of view (horizontal)
- 120 °
- Programmable presets
- Yes 2x digital EPTZ presets, via remote
- Auto framing/tracking
- Yes Poly DirectorAI including group framing, speaker framing, presenter tracking, and conversation mode
Audio specifications
- Built-in microphone
- Yes 6x element Beamforming Microphone Array
- External microphone
- Yes 1x Poly Studio Expansion Microphone can be connected to Poly Studio (accessory) or a USB speakerphone can be connected to GC8 (accessory)
- Audio pickup range
- 3.7 m
- Built-in speaker
- Yes Integrated Stereo speaker
- External speaker
- Yes USB speakerphone can be connected to GC8 (accessory)
Communication
- Ethernet
- No
- Content sharing
- HDMI Content ingest/present via GC8 (cable optional)
Connections
- Video in
- HDMI mini Content ingest/present via GC8 (cable optional)
- Audio inputs
- External microphone input Poly Studio
- USB standard
- 2.0 (Poly Studio)
- USB standard
- 3.0 (Poly Studio)
Energy
- Power Supply
- Poly Studio: 12VDC/5A External DC power supply, GC8: powered from PC via USB
Dimensions and weight
- Width
- 700 mm Poly Studio
- Depth
- 70 mm Poly Studio
- Height
- 105 mm Poly Studio
- Net weight
- 2.34 kg Poly Studio
Additional information
- Color
- Black
- Included Accessories
- Poly GC8, 10m USB 3.1 AOC Cable, Poly Studio, IR Remote, 2x AAA batteries, Power adapter, 5m USB 2.0 cable (Type-C - A), Wall mount kit, Setup sheet
- Warranty
- 1 years 1-year warranty, parts and labor, Poly+ Service available for premium support features (Mandatory from 1/7-2022)
Packaging info
- Packaging size
- 475 x 805 x 170 mm
- Packaging weight
- 8.28 kg
