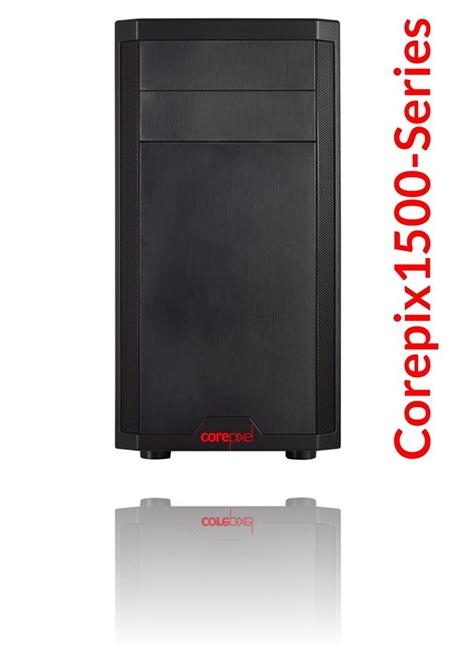

Corepix1509-G2
NVR for up to 350* FHD CAM cameras - Intel i9 with liquid cooling, 16GB DDR4 Ram memory - W11 Pro, VGA/DVI-D/HDMI - 2xGbit network, mouse and keyboard - NOTE NEW BIG size (WxHxD): 240 x 475 x 547mm - NOTE! Choose up to 3 3.5" HDD storage disks separately!
***Recording test criteria: Codec H264, 1920x1080, 25fps, 4,5Mbit stream, Motion Detection on all key-frames. Test made on Milestone XProtect VMS.
NOTE: All data based on use of this hardware as pure recording server, no live views.
And very important that all settings are done according to the VMS vendors guidance, such as hard disk format, turning off indexing and using LIVE disk (optional) if needed.
Feel free to contact us for information on how repsktive VMS should be set up for optimization according to the manufacturers.**
- Input channels
- 350 Channels
- Storage size
- 88 TB
- Consumption Max
- 600 W
- Data transfer speed
- 1,350 Mbit/s
- Number of RJ-45 Ports
- 2 pcs.
- HDDs installed
- OS 128 Gb SSD
Chassi
- Device Type
- Sata 4x SATA port on board
Storage
- Drive Bays
- 3 pcs. 3x 3.5", 1x 2.5"
Ports
- HDMI
- Yes
- DisplayPort
- No
- USB type-A
- Yes
Communications
- LAN Speed
- Gbit
Dimensions and Weight
- Width
- 240 mm
- Height
- 475 mm
- Depth
- 547 mm
- Weight
- 15.98 kg
Additional Information
- Warranty
- 1 years
Packaging info
- Packaging size
- 620 x 570 x 505 mm
- Packaging weight
- 15.59 kg
