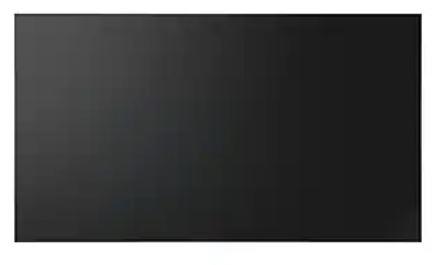

ALL-IN-ONE (IAC) 1.5mm SMD

  • Quick Build
  • Built-in Control Box
  • All inclusive Components

This is the true all-in-one
Discover a true all-in-one LED display. Experience easier installation than ever with Samsung's exclusive Quick Build technology. It only takes two hours to install a giant screen in your space. All you have to do is enjoy its brilliant performance. This is Samsung's promise of all-in-one.

*Install time estimate based on internal testing.

Quick install. Big impact.
With Quick Build structure, Samsung’s all-in-one LED IAC series offers a drastically simplified installation unlike anything seen before. Dock the two background plates and hang just four preset modules, and that’s it. In just two hours you will have a giant 130-inch screen to transform your spa

Auto configuration setup
Time-consuming configuration between control box and cabinet is no longer needed. The IAC series integrates the control box so it’s built into the display, eliminating a cumbersome configuration process to get the display up and running faster.

No extra peripherals needed
Samsung’s IAC series includes everything you need to begin operations - from the control box and wall brackets to speakers and deco bezels. No additional purchases or components are required.

Best-in-class LED picture quality
Drawing on Samsung’s industry leadership experience and years of innovation in visual display technology, the IAC series produce images with vivid color expression, reduced noise and a full range of grays and blacks.

Clearly refined visuals
LED HDR turns any content into HDR-level without requiring special metadata. Samsung’s Dynamic Peaking technology analyzes content in real-time and manages power consumption, therefore producing brilliant content that catches the eye against any background.

Bring content to a bigger screen
Deliver your vision on a bigger screen. Samsung’s IAC series allows users to combine multiple displays side by side for simultaneous use, expanding business possibilities for large meeting spaces.



Skærm

Billed diagonal
130 "
Skærmopløsning
1920x1080
Pixel pitch
1,5 mm
Diode Type
SMD (Surface Mount Device) LED(3-in-1 1212)
Opdateringshastighed
3.840 Hz 60hz Video Rate
Brightness (Max)
500 Nits
Viewing angle
160 ° (Horizontal/Vertical)

Tilslutninger

Video ind
DisplayPort 1.2
Video ind
HDMI 2.0 x3
Audio Udgange
3,5mm tele
USB connection
USB-A 2.0 x2
Ethernet
Ja

Energi

Strømforsyning
100~240V AC

Yderligere oplysninger

Min driftstemperatur
0 Celsius
Max driftstemperatur
40 Celsius
Garanti
3 år

Forpakningsinfo

Forpaknings størrelse
1.850 x 1.982 x 815 mm
Forpaknings vægt
210,00 kg

Tilbehør
