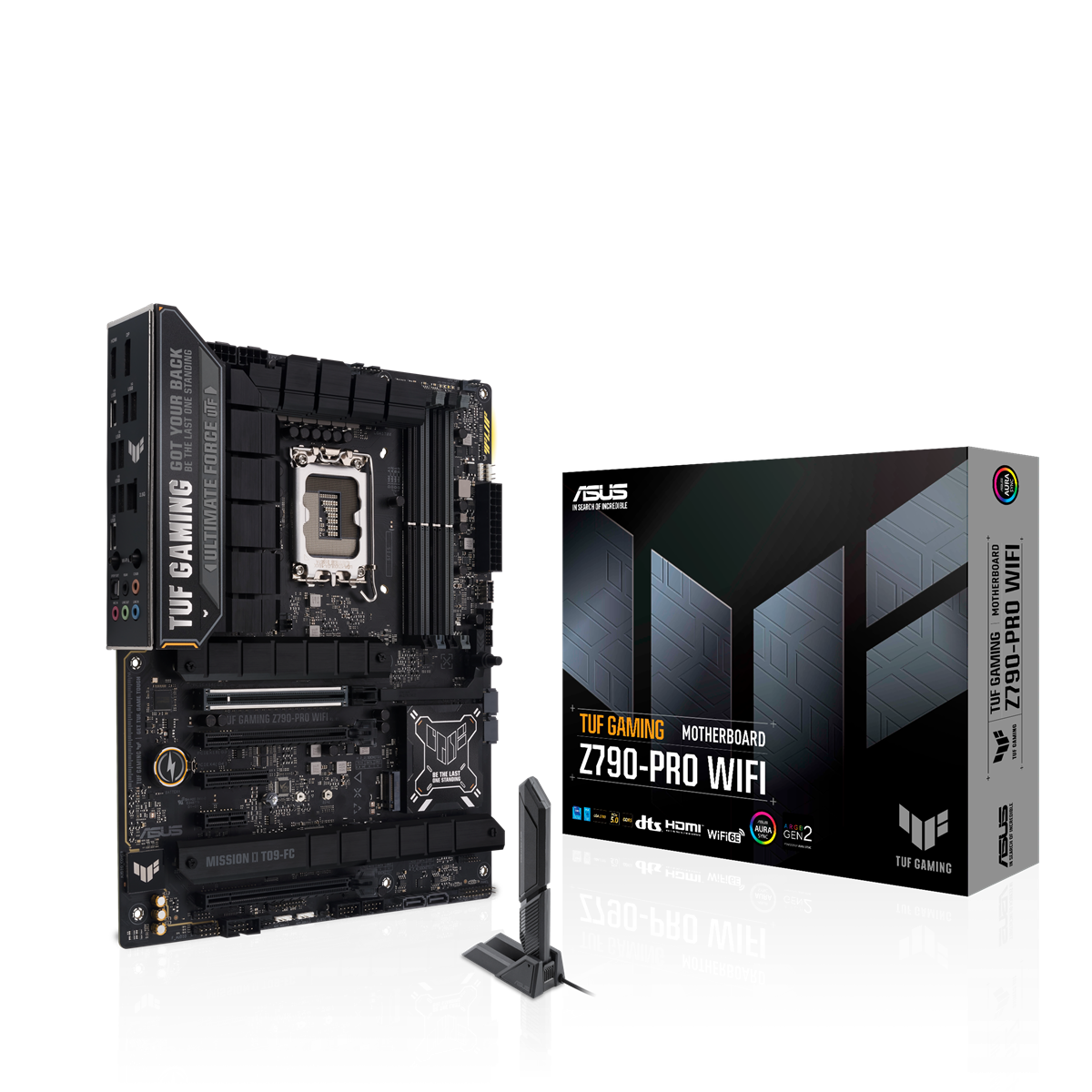

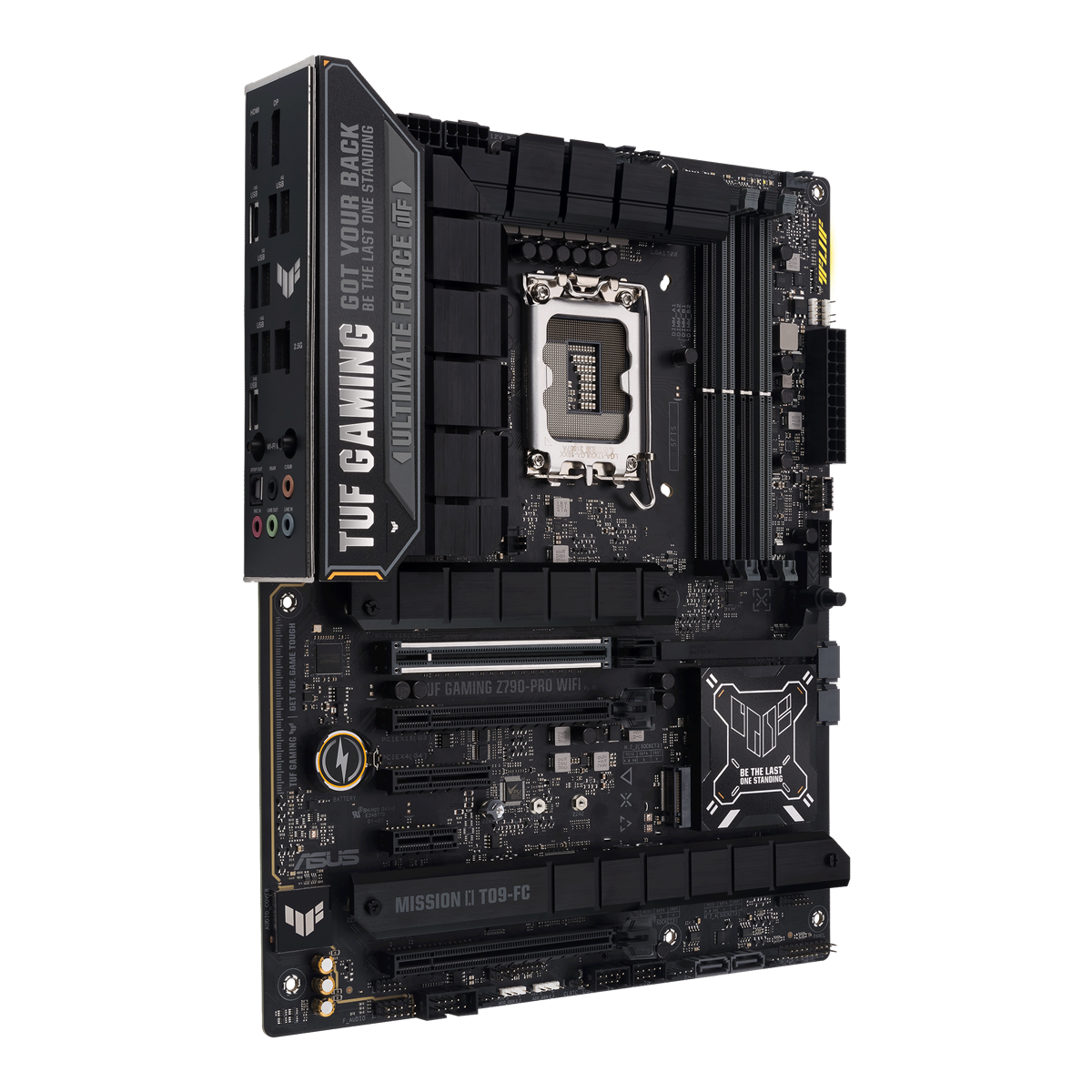

TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.
INTELLIGENT CONTROL
The TUF GAMING Z790 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING Z790-PRO WIFI is the perfect foundation for your next Intel battle rig.
Premium Power Delivery
16+1+1 power stages are each rated to handle up to 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
EASY PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- Z790
- Form factor
- ATX
Hukommelse
- Memory Type
- DDR5
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 4.800 MHz
- Memory frequency (OC)
- 7.800 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 192 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 3 pcs.
- PCIe x1
- 1 pcs.
- PCIe x4
- 1 pcs.
Lagerenheder
- M.2 slots
- 4 pcs.
- M.2 support
- 2242/2260/2280/22110
- M.2 generation
- PCIe 4.0 x4
- M.2 interface
- PCIE 4.0 x4 and SATA modes
- SATA ports
- 4 pcs.
Kommunikation
- WiFi
- Ja
- WiFi Standard
- Wi-Fi 6E
- Bluetooth
- Ja
- Bluetooth standard
- 5.3
- LAN controller
- Intel®
- LAN hastighed
- 2.5Gb Ethernet
Internal I/O Connectors
- RGB
- Ja
- Fan Connector (4-pin)
- 7 pcs.
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- AUX ud
- Ja
- Ethernet
- Ja
Dimensioner og vægt
- Bredde
- 24,4 mm
- Længde
- 30,5 mm
Forpakningsinfo
- Forpaknings størrelse
- 362 x 279 x 76 mm
- Forpaknings vægt
- 1,93 kg
Forpakningsinfo (4 pcs)
- Forpaknings størrelse
- 450 x 400 x 350 mm
- Forpaknings vægt
- 9,50 kg
