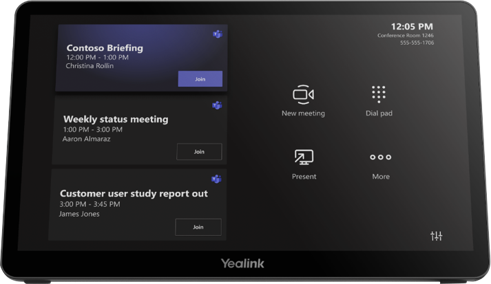

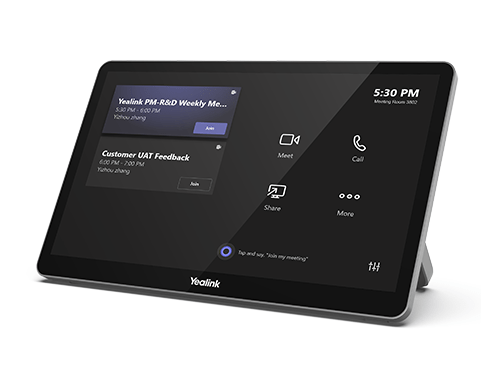

MTouch Plus Touch Panel
Yealink MTouch Plus is the specific-designed Yealink third-generation touch panel with a unique appearance and all-in-one features. With an 11.6-inch anti-fingerprint and anti-glare IPS large screen, MTouch Plus provides you with a more comfortable control experience during the meeting. Yealink MTouch Plus supports controlling meetings by multiple touch panels simultaneously* and allowing multiple participants to control the meeting synchronously. It supports screen sharing via third-party* and wireless BYOD features*, and you can join the meeting with only one-time touch and share your screen anytime. With more deployed methods for MTouch Plus, you can mount it on the wall and lay it flat or fix it on the desktop according to your needs through a cleverly designed expansion bracket. Working with the RoomSensor, it can automatically detect participants entering the meeting room and automatically wake up the whole system, allowing you to experience different meeting room features.

Flexible installation
You can install it in different ways - on the wall, flat on a surface, or fixed on a desktop. The cleverly designed expansion bracket makes it possible to adapt to various spaces as needed.

Automatic Wake-up
Paired with Yealink RoomSensor, the Mtouch Plus can automatically wake up when the RoomSensor detects people entering the room.

Power Supply for PC
When the MTouch Plus is connected to a PD power supply, connecting the laptop to the MTouch Plus via USB-C allows for both content sharing and power supply to the laptop.

  • 11.6-inch IPS 1080P screen, more comfortable operation
  • Optional PD power supply to power the laptop when projecting (supported)
  • With CTP28, multi-session screen control can be realized (H2 support)
  • Support WPP30 wireless screen sharing
  • Support RoomSensor, automatic wake-up covering a larger area and more accurate area. (Supported)
  • MTouch Plus supports both table-top fixed and wall-mounted deployments


Generelt

Installation
Table, Wall
Interface type
Touch display

Tilslutninger

Control ports
Ethernet/IP (RJ-45)
Ethernet
Ja
WiFi
Ja IEEE 802.11 a/b/g/n/ac/ax

Energi

Strømforsyning
PoE

Dimensioner og vægt

Nettovægt
0,97 kg

Yderligere oplysninger

Farve
Sort
Inkluderet tilbehør
• MTouch Plus Touch Panel • Mounting Bracket • Double-Coating Tape • USB Type-C Cable (with HDMI Adapter) • 7.5m Ethernet Cable • WPP30 (Optional) • 65W PD Power Supply (Optional)
Garanti
1 år

Forpakningsinfo

Forpaknings størrelse
341 x 225 x 111 mm
Forpaknings vægt
1,93 kg
