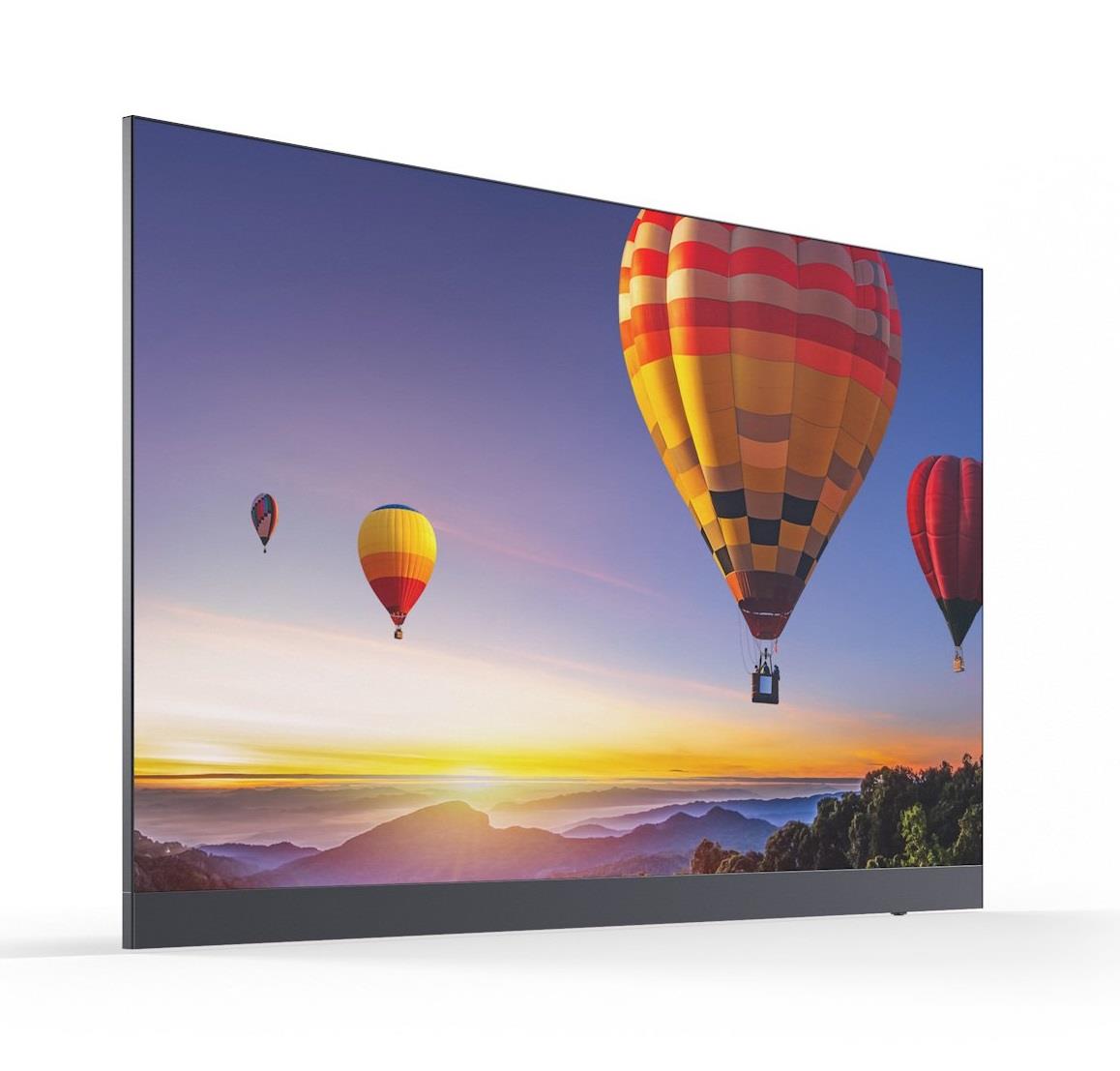

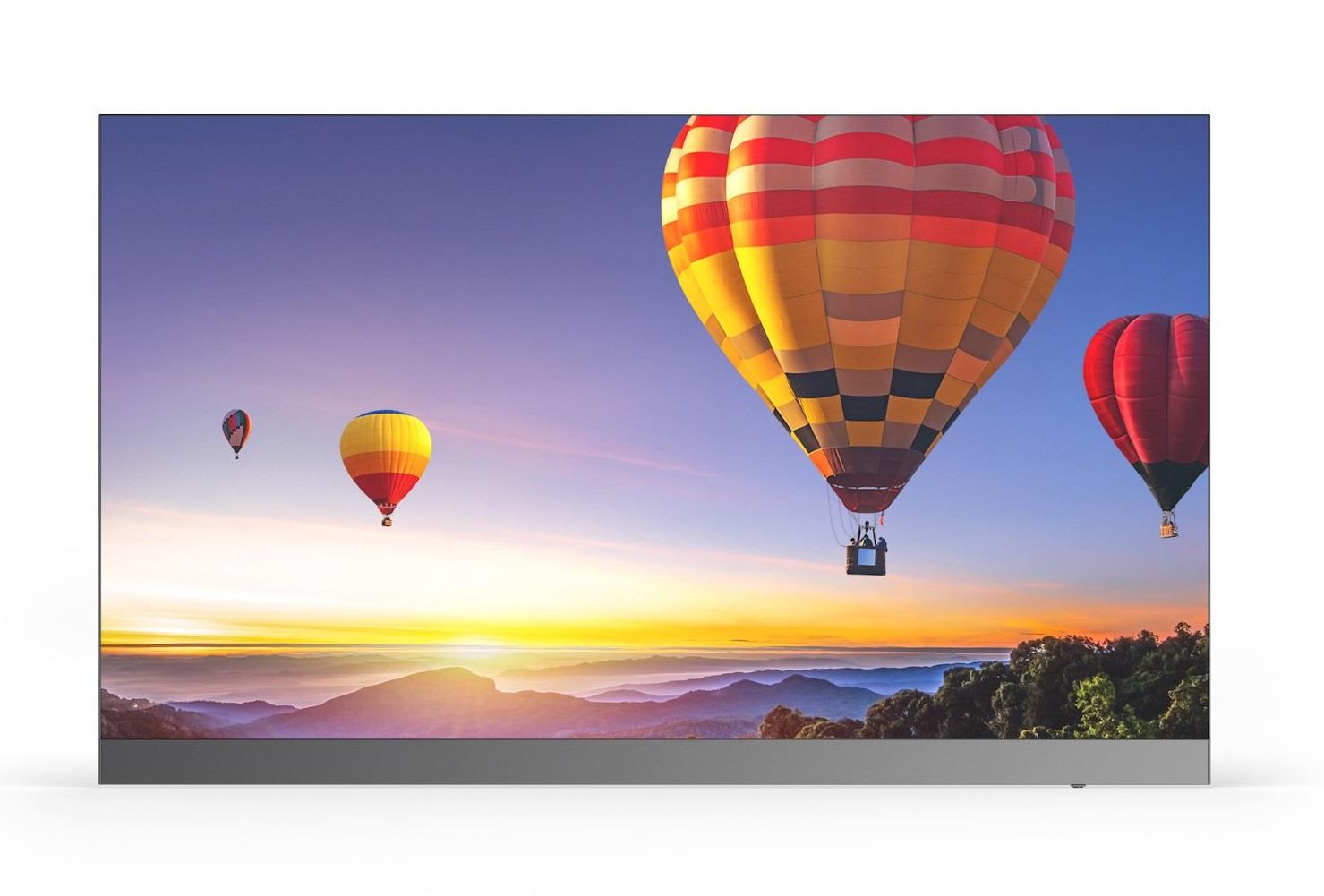

Large Image Presentation, Small Budget Preservation
Bringing all the advantages of fine-pitch LED to more cost-conscious applications in corporate meeting rooms and digital signage, the E series lacks nothing in high impact content delivery. The pre-bundled solution includes everything you need to implement large surface visualisation without hindrance from bezels, with superb brightness and high contrast which gets noticed even in areas of high ambient light.
Designed for quick and easy set-up, the product is light weight and super slim for unobtrusive integration either free-standing or wall mounted. Front serviceable, all components are easily accessed for maintenance.
As you would expect from a quality manufacturer, there is no compromise to reliability, longevity and safety in offering this low-cost solution. Consistent with all LED products from Sharp/NEC, the chassis is of metal construction making it suitable for use in public spaces where fire-retardancy is mandatory.
Benefits:
• Trouble-free installation – for wall mounted or freestanding deployments, the mechanical cabinet design makes installation quick and easy.
• Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
• Low-profile integration – the super slim and light weight modules align with perfection to create a large digital canvas which integrates unobtrusively into any environment.
• Front serviceable modules – with front access to the LED modules, maintenance is easy.
• Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
- Kablet BYOD
- 600x338 mm
- Test application
- 1GbE
- Opløsning
- 1920x1080
- Portræt
- Nej
Skærm
- Billed diagonal
- 162 "
- Pixel pitch
- 1,8 mm
- Diode Type
- SMD (1415)
- Brightness (Max)
- 800 Nits
LED Modul/kabinet
- Cabinet Resolution
- 320x180 Pixel
- Modul opløsning
- 80x180 Pixel
Tilslutninger
- Video ind
- 3G-SDI x1
- Video ind
- DVI-D x1
- Video ind
- HDMI x1
- Ethernet
- Ja
Energi
- Strømforsyning
- 100 V AC to 240 V AC, 50 Hz/60 Hz
- Consumption Max/m2
- 1.548 W
- Consumption Max tot.
- 4.500 W
Dimensioner og vægt
- Bredde
- 3.612 mm
- Højde
- 2.131 mm
- Dybde
- 47 mm
- Nettovægt
- 196,2 kg
Yderligere oplysninger
- Service access
- Front
- IP Classification
- IP20 Front/Back
- Inkluderet tilbehør
- 1x LED Controller; LED Modules (36 Cabinets, 144 Pixel Cards); Overframe Kit (6x6); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (6x6)
- Garanti
- 2 år
Forpakningsinfo
- Forpaknings størrelse
- 1.200 x 800 x 1.400 mm
- Forpaknings vægt
- 362,50 kg
