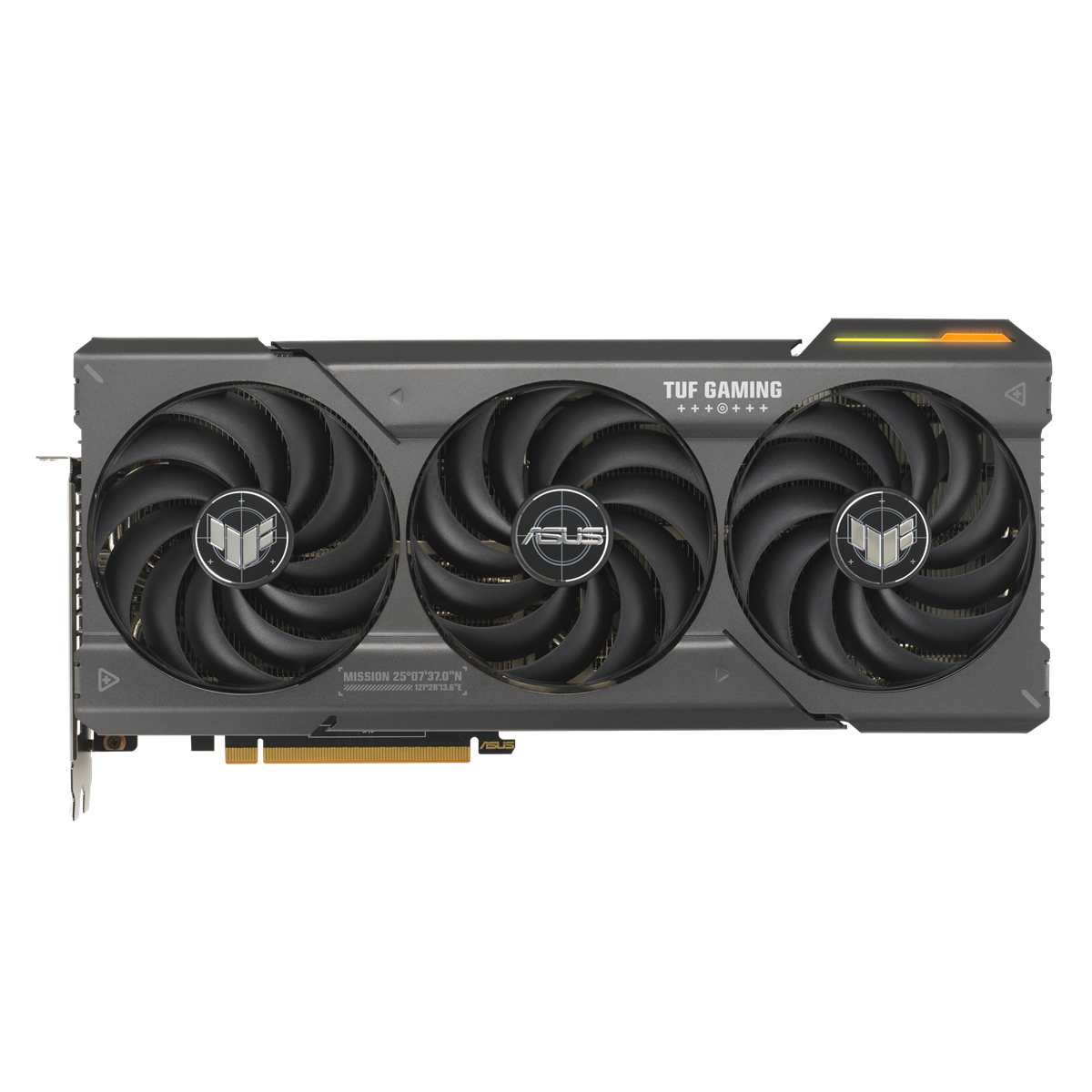

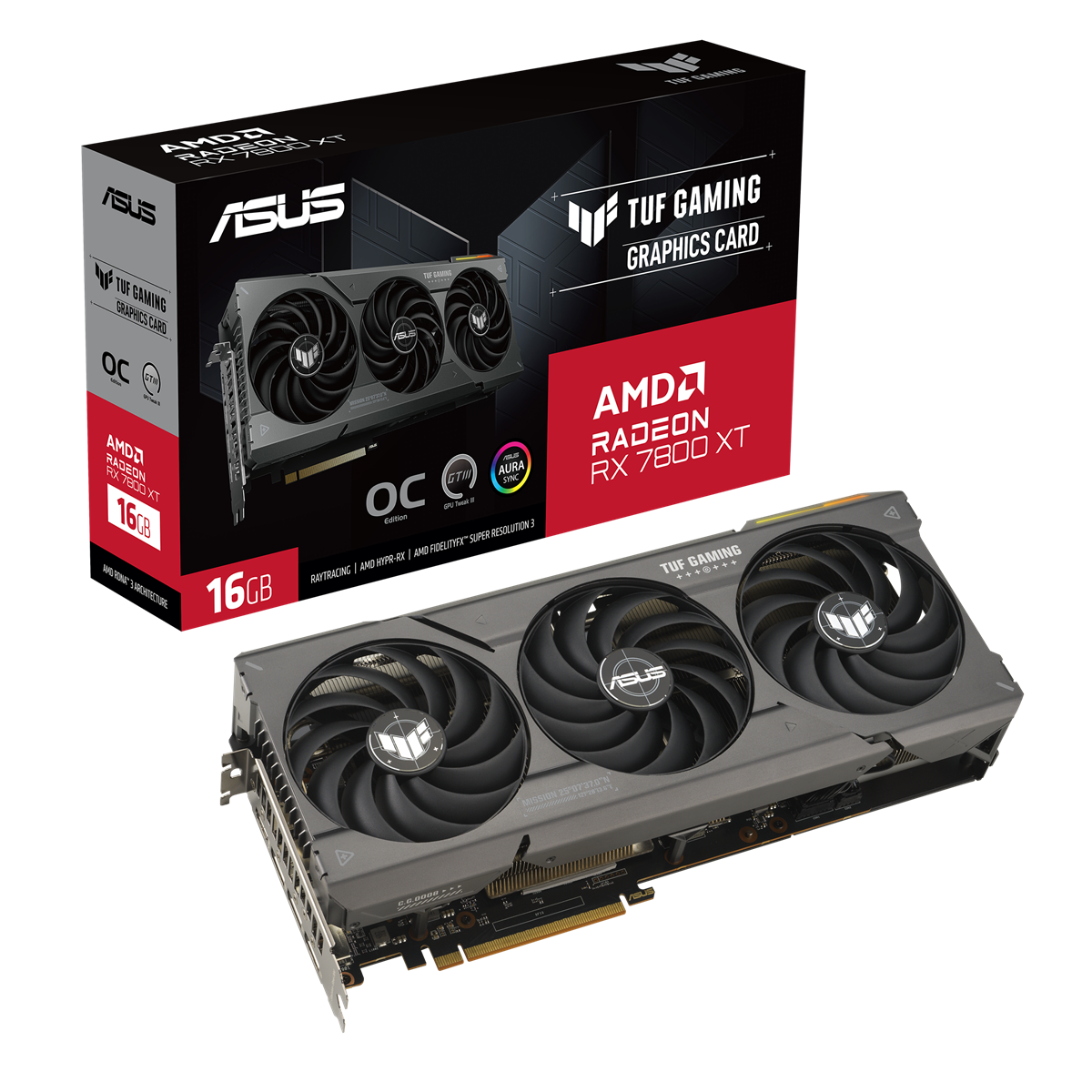

ASUS TUF Gaming Radeon™ RX 7800 XT OC Edition 16GB GDDR6 optimized inside and out for lower temps and durability.
- Axial-tech fans scaled up to deliver 24% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
FLYIN’ TUF
The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming Radeon™ RX 7800 XT.
AXIAL-TECH UPGRADES
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 24% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
NEW DIRECTION
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
2.96-SLOT DESIGN
A generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7800 XT GPU, allowing it to be whisked away by the three Axial-tech fans.
MILITARY-GRADE 20K CAPACITORS
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
METAL EXOSKELETON
An aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.
AURA SYNC
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
GRAPHICS CARD HOLDER
Pillar of Support. The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
Generelt
- Mærke
- AMD
- Model
- Radeon RX 7800 XT
- Core Clock
- 2.565 MHz
- Stream processors
- 3.840 pcs.
- Interface
- PCI Express 4.0
Hukommelse
- Video hukommelse
- 16 GB
- Memory Type
- GDDR6
- Memory Interface
- 256 bit
- Effective Memory Clock
- 19,5 GHz
Tilslutninger
- HDMI
- Ja
- DisplayPort
- Ja
Power
- Anbefalet PSU
- 750 W
Dimensioner & Vægt
- Expansion slots
- 2,96 pcs.
- Bredde
- 59,2 mm
- Højde
- 150,9 mm
- Længde
- 319,8 mm
- Vægt
- 1,48 g
Forpakningsinfo
- Forpaknings størrelse
- 427 x 230 x 93 mm
- Forpaknings vægt
- 2,12 kg
Forpakningsinfo (6 pcs)
- Forpaknings størrelse
- 500 x 500 x 450 mm
- Forpaknings vægt
- 14,43 kg
