All light on the projection screen, not into the speaker’s eyes.

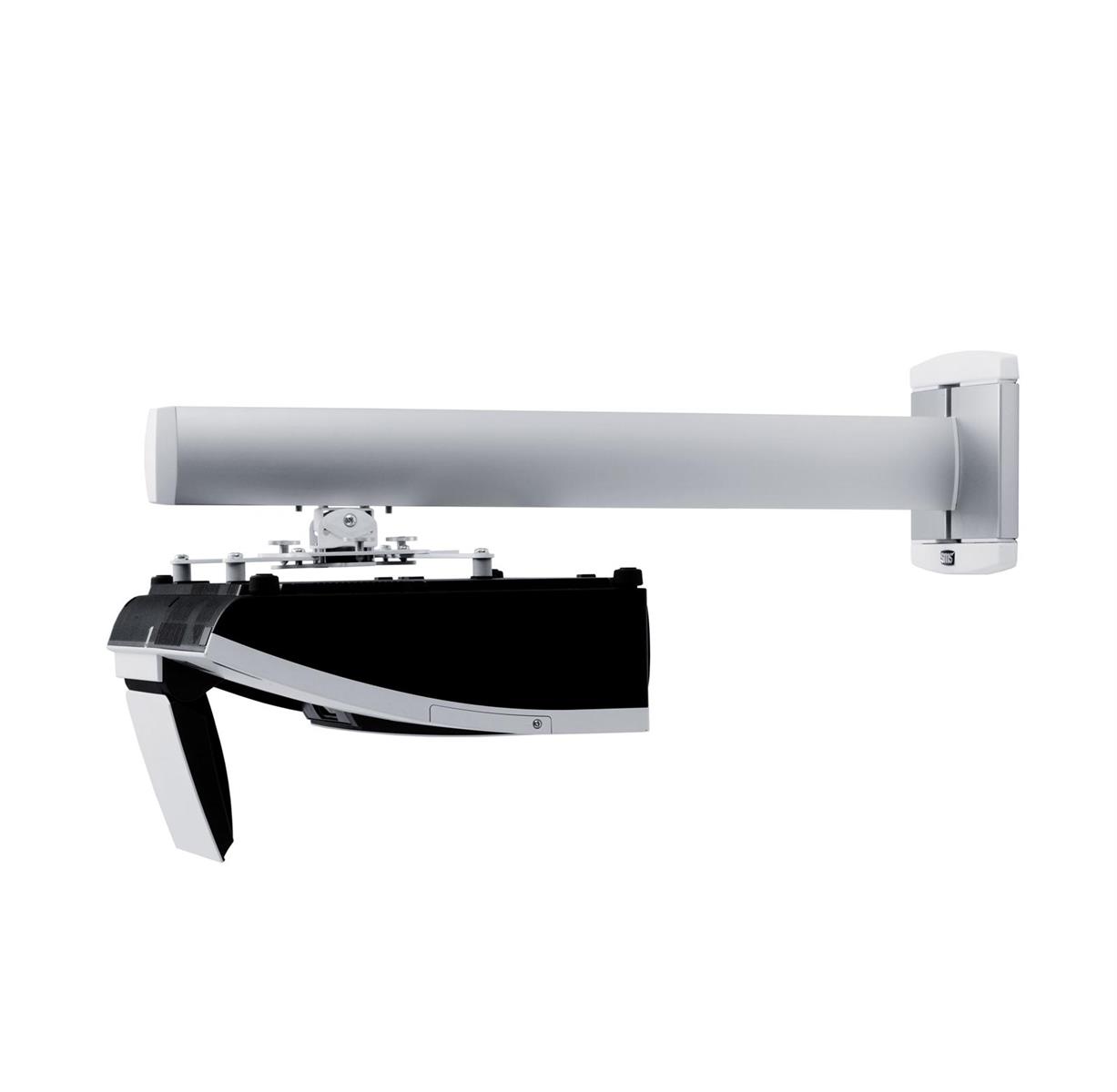

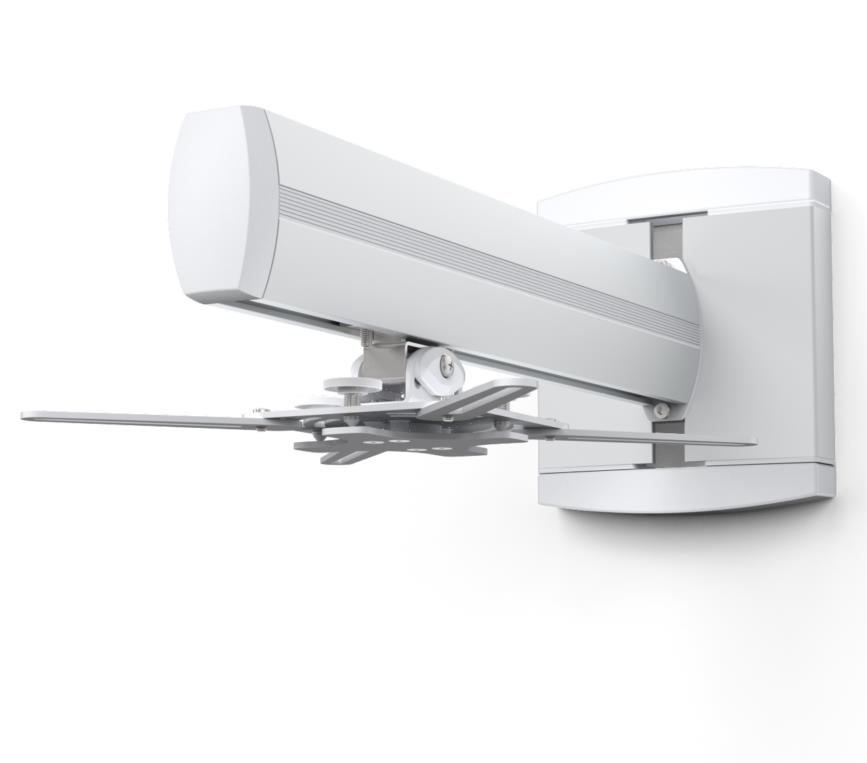

A wall bracket with generous adjustment facilities to obtain the best possible image quality at all positions. The projector can be suspended at any location along the pillar for depth adjustment. Furthermore, the wall plate can be adjusted both horizontally andvertically. Fine adjustment is very easy with the aid of adjustment knobs on the universal slide.

To get a complete product two articles are required:

  • One article including the wall bracket and Short Throw unislide
  • One article including the projector pillar (in proper length):
    • FS000450AW-P2 SMS Proj ShortThrow 450 A/W
    • FS000680AW-P2 SMS Proj ShortThrow 680 A/W
    • FS001202AW-P2 SMS Proj ShortThrow 1200 A/W
    • FS001450AW-P2 SMS Proj ShortThrow 1450 A/W
    • FS001600AW-P2 SMS Proj ShortThrow 1600 A/W


Generelt

Applikation
Wall
Farve
Hvit, Sølv

Funktioner

Kolonne type
Column not included
Tilt
Ja +/-12°
Drejbar
Ja
Roterbar/Pivot
Ja +/-12°
Låsbar
Nej

Dimensioner og vægt

Max vægts kapacitet
12 kg
Bredde
188 mm
Højde
211 mm
Dybde
40 mm

Additional information

Inkluderet tilbehør
Wallbracket, short-throw unislide
Garanti
5 år

Forpakningsinfo

Forpaknings størrelse
252 x 200 x 86 mm
Forpaknings vægt
2,24 kg
