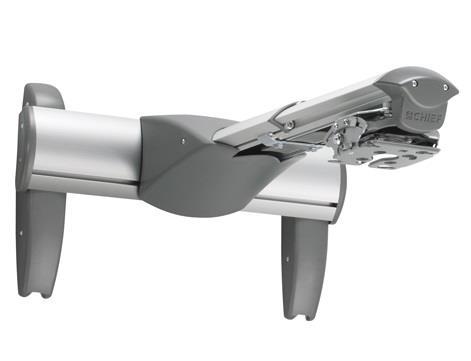

The WM210AUS projector short throw kit includes dual stud short throw extension arm (WM210S) and Universal Mini RPA Elite projector mount (RSMAUS) to provide unparalleled flexibility, precision and strength.

Also supports wall-mounted long-throw projectors.

Key Features

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Integrated lateral shift
  • Extension from wall, 324-495mm
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
  • Includes short throw arm and RSMAUS Universal Mini RPA Elite projector mount
  • Now includes new universal interface to further reduce installation time
  • Includes hardware for wood stud, steel stud and concrete wall construction
  • Also supports long-throw projectors


Generelt

Applikation
Wall
Farve
Sølv

Funktioner

Kolonne type
Adjustable
Tilt
Ja +/-15°
Drejbar
Ja +/-360°
Roterbar/Pivot
Ja +/-3°
Låsbar
Ja Key and lock system (4 key options), with all-points security hardware

Dimensioner og vægt

Max vægts kapacitet
11,3 kg
Kolonne længde min
403 mm From wall
Kolonne længde max
586 mm From wall

Additional information

Inkluderet tilbehør

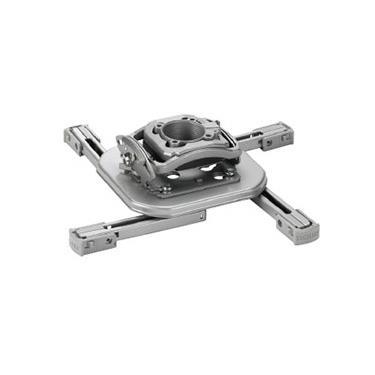

RSMAUS - Universal Mini RPA Elite projector mount
Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
565 x 304 x 330 mm
Forpaknings vægt
11,61 kg
