Native Microsoft Teams Rooms system BaseKit - Without Camera/Audio

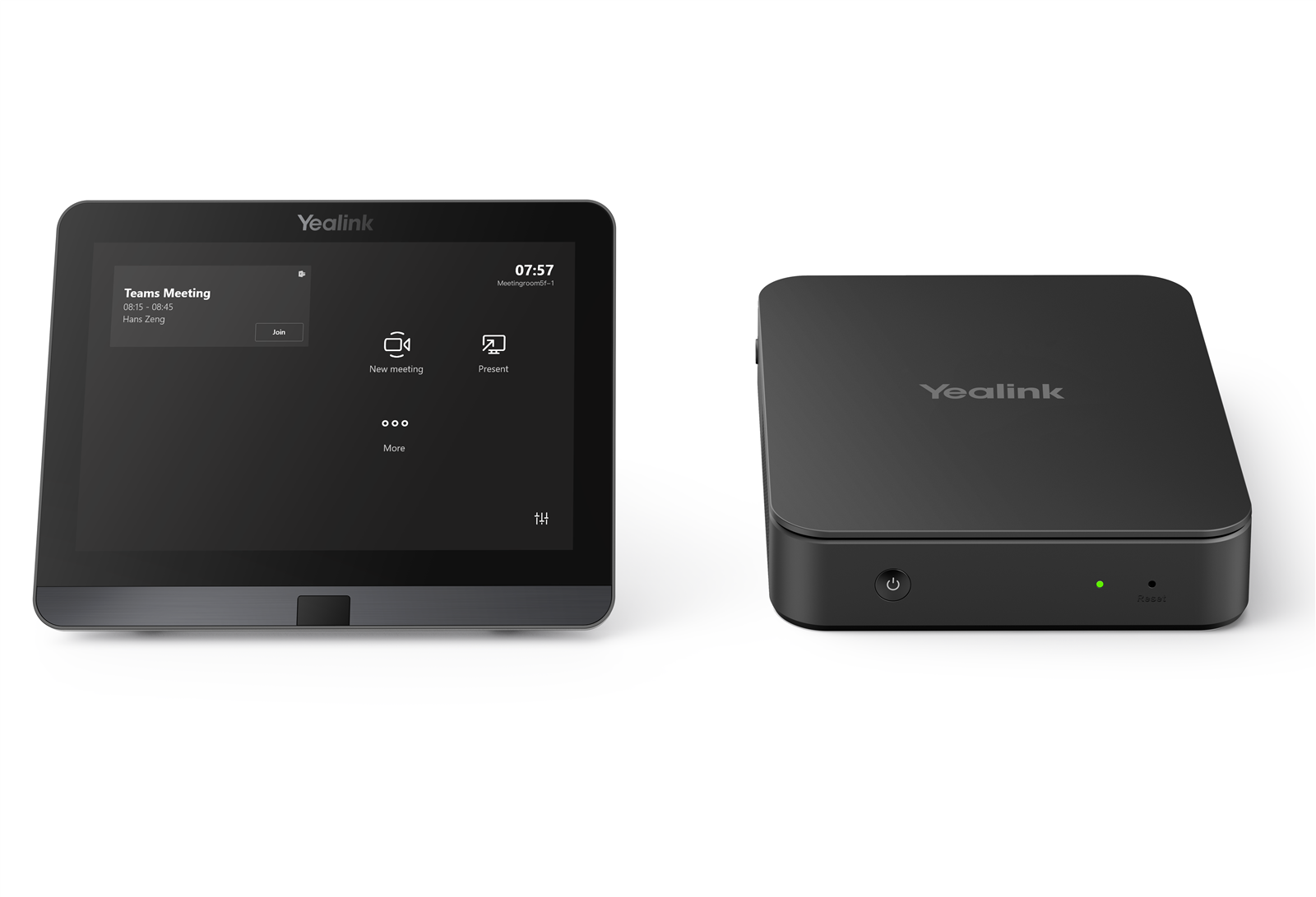

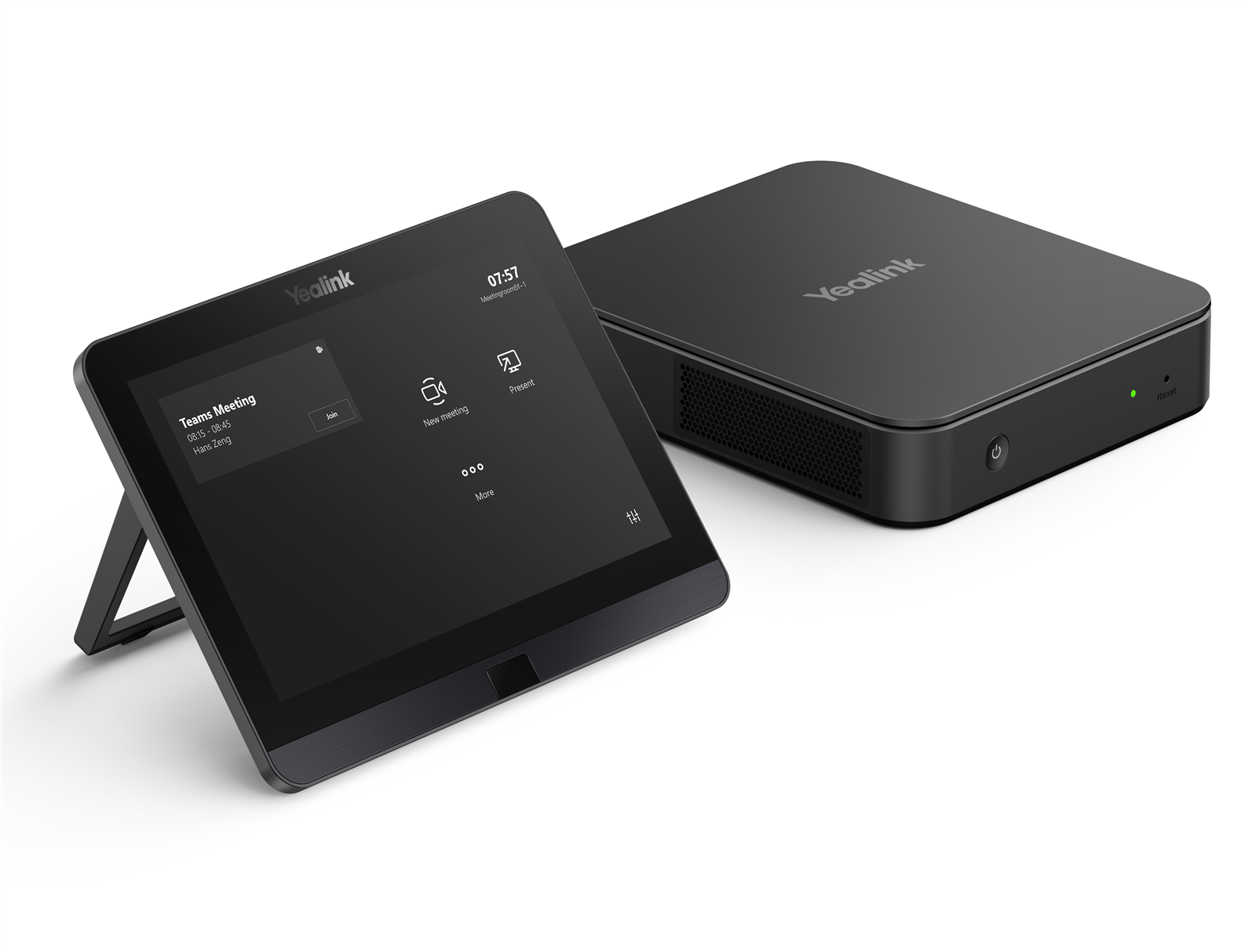

Engineer Your Teams Meeting with MCore Kit-MS
Design your own solution for Microsoft Teams Rooms with the MCore Pro mini-PC and MTouch E2 touch panel.
Users can choose camera and audio equipment. The bundle solution brings a premium and native Microsoft Teams Room meeting experience you need to interact, connect and collaborate with internal and external users seamlessly and intelligently.
Note! Add camera + audio equipment for a complete system.

Multi-mounting Options Simplified Connections
The MCore Pro mini-PC can be set up on the wall or on a conference table in Microsoft Teams room according to particular room layout. Also, in all Yealink MVC room systems, the MCore cable management solution integrates data and power supply into one CAT5e cable, simplifying the complicated connections and reducing the deployment time of video conference equipments.

MTouch E2 Touch Panel
MTouch E2 is Yealink’s third-generation conference touch panel. It is an enhancement of MTouch II. Designed with the idea of multi-function all-in-one, the MTouch E2 touch panel allows you easily perform call control, camera control, content sharing and other functions. At the same time, MTouch E2 has a built-in Human Motion Sensor that the conference system can automatically wake up and you can immediately start the conference.

Remote Management
Yealink MVC series video conference room solution supports the Yealink Device Management Platform/Cloud Service. You can manage, monitor, configure, update and diagnose all Yealink audio and video devices within the video conference kits and peripherals on this platform remotely.

MCore Pro (v2) Mini-PC

  • CPU: Intel 11th-gen Intel i5-1135G7
  • RAM: 8 GB Ram
  • Storage: 128 GB SSD
  • Metal dustproof heat sink
  • Support TPM 2.0
  • 3x HDMI out, support future upgrades for triple screen and 21:9 displays
  • Built-in CEC chip, compatible with TVs certified by the CEC Association
  • Built-in EDID module, configurable to the appropriate HDMI output resolution

MTouch E2 Touch panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° - 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C video input

Included in the kit:
• 1x Mini-PC with INTEL Core™ i5 quad-core CPU with Power Supply, Mount Bracket, 3x HDMI Cables.
• 1x MTouch E2 8 inches touch console
• The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Microsoft Teams Rooms App, as well as Yealink Camera Control Plug-in
• Including 3-year hardware warranty.



Generelt

Ansøgning/Certificering
Microsoft Teams Room
Platform/OS
Windows

Kamera

Kamara type
No Camera

Lydspecifikation

Ekstern mikrofon
Ja Add optional external microphones like VCM34/VCM38/CPW90
Ekstern speaker
Ja Add optional speakers like MSpeakerII Soundbar

Kommunikation

Ethernet
Ja 10/100/1000M Ethernet Port
Wi-Fi
Built-in Built-in to MCore Pro Mini-PC; IEEE 802.11 a/b/g/n/ac/ax, Built-in to MTouch E2 Touch Panel (for Yealink wireless presentation device only)
Content sharing
Yes, USB-C with HDMI adapter connected to MTouch E2 Touch Panel
Trådløs billeddeling
Yes, via optional WPP30 wireless share pod/dongle connected to MTouch E2 Touch Panel
Kablet BYOD
No
Trådløs BYOD
No

Tilslutninger

Video ind
USB-C With HDMI adapter to MTouch E2 Touch Panel
Video ud
HDMI x3 with CEC support, with built-in EDID adapter. HDMI 1 supports 5K 21:9 resolution
USB connection
USB-A x4 on MCore Pro Mini-PC
USB standard
3.0

Energi

Strømforsyning
Mini-PC: Input: 19V, 4.74A

Dimensioner og vægt

Bredde
168 mm Mini-PC
Dybde
197 mm Mini-PC
Højde
39 mm Mini-PC
Nettovægt
0,69 kg Mini-PC

Yderligere oplysninger

Farve
Sort
Inkluderet tilbehør
See product text above
Garanti
3 år

Forpakningsinfo

Forpaknings størrelse
316 x 220 x 286 mm
Forpaknings vægt
3,40 kg

Tilbehør

Artikel nummer 2351773
