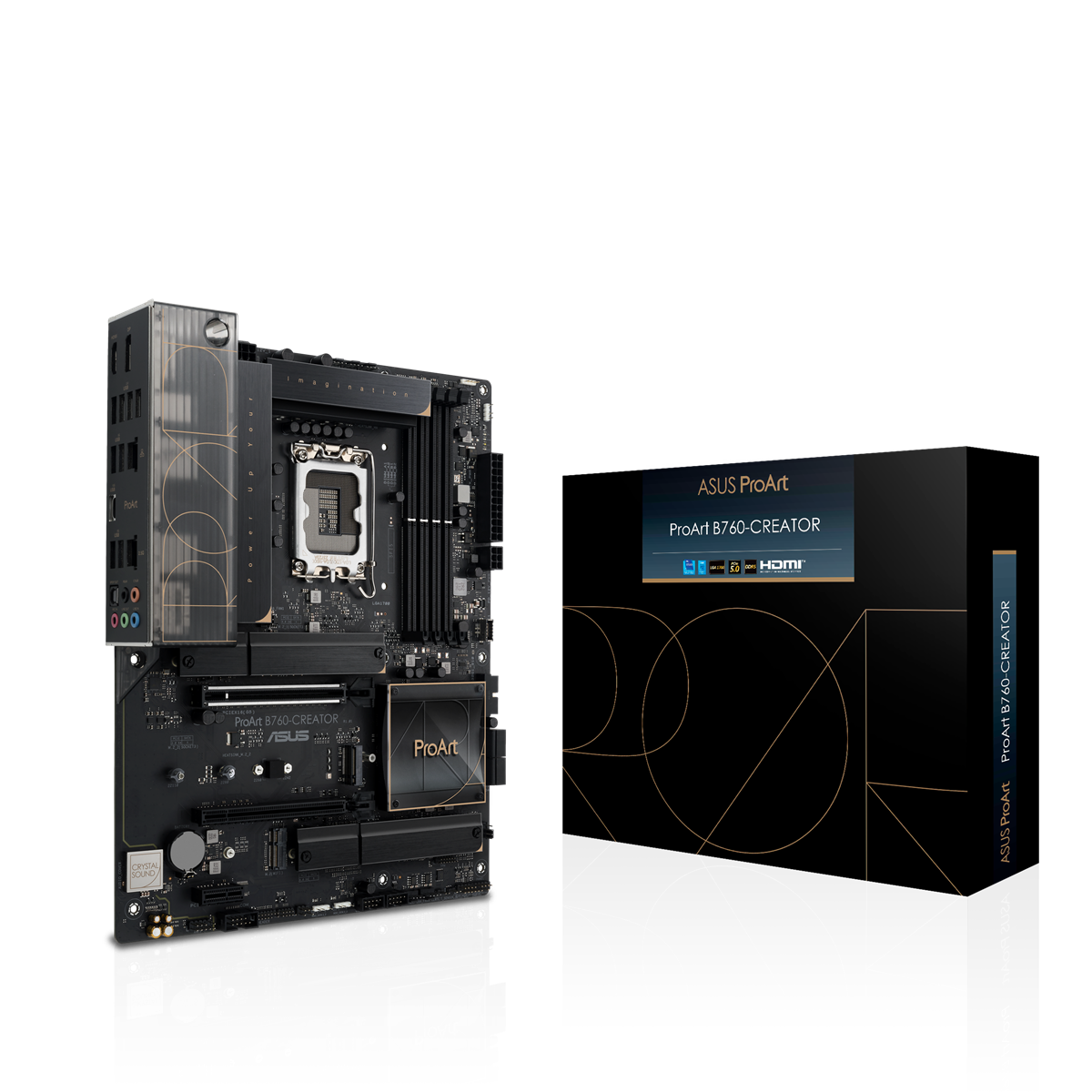

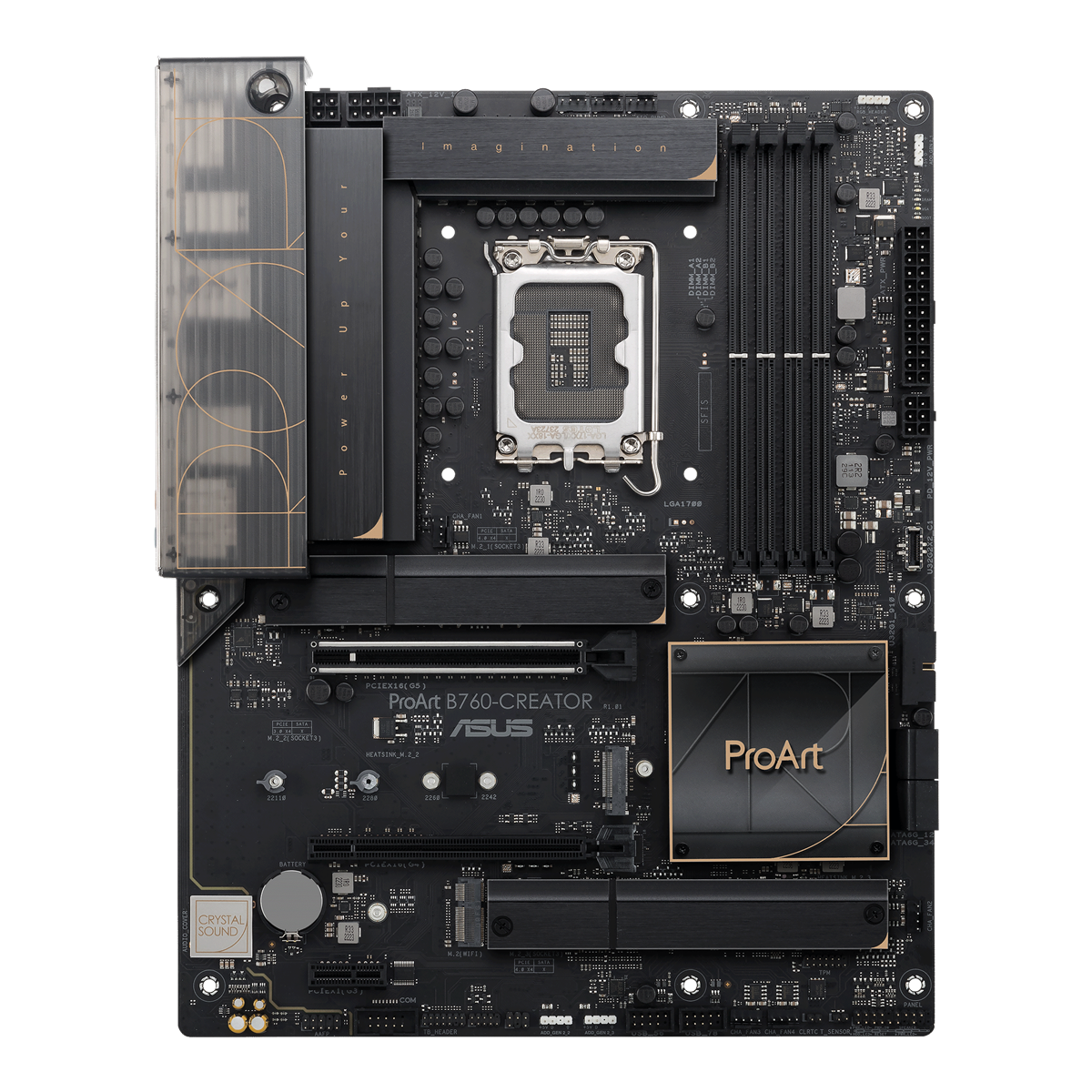

ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
Comprehensive Connectivity
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
Thunderbolt™ / USB4® support
The ProArt B760-Creator features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
*ASUS add-on card is sold separately.
USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- B760
- Form factor
- ATX
Hukommelse
- Memory Type
- DDR5
- Kanal understøttet
- Dual Channel
- Memory slots
- 4 pcs.
- Max Memory
- 128 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 2 pcs.
- PCIe x1
- 1 pcs.
Lagerenheder
- M.2 slots
- 3 pcs.
- M.2 support
- 2242/2260/2280/22110
- M.2 generation
- PCIe 4.0/ 3.0 x4
- M.2 interface
- PCIE 4.0 x4 and SATA modes
- SATA ports
- 4 pcs.
Kommunikation
- LAN controller
- Intel® & Realtek
- LAN hastighed
- 2.5Gb & 1Gb Ethernet
Internal I/O Connectors
- Fan Connector (4-pin)
- 7 pcs.
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- AUX ud
- Ja
- Ethernet
- Ja
Dimensioner og vægt
- Bredde
- 305 mm
- Længde
- 244 mm
Forpakningsinfo
- Forpaknings størrelse
- 347 x 281 x 76 mm
- Forpaknings vægt
- 1,84 kg
Forpakningsinfo (4 pcs)
- Forpaknings størrelse
- 350 x 300 x 300 mm
- Forpaknings vægt
- 10,00 kg
