Wireless Lavalier Microphone System with ADX10, A-band: 522 MHz — 554 MHz

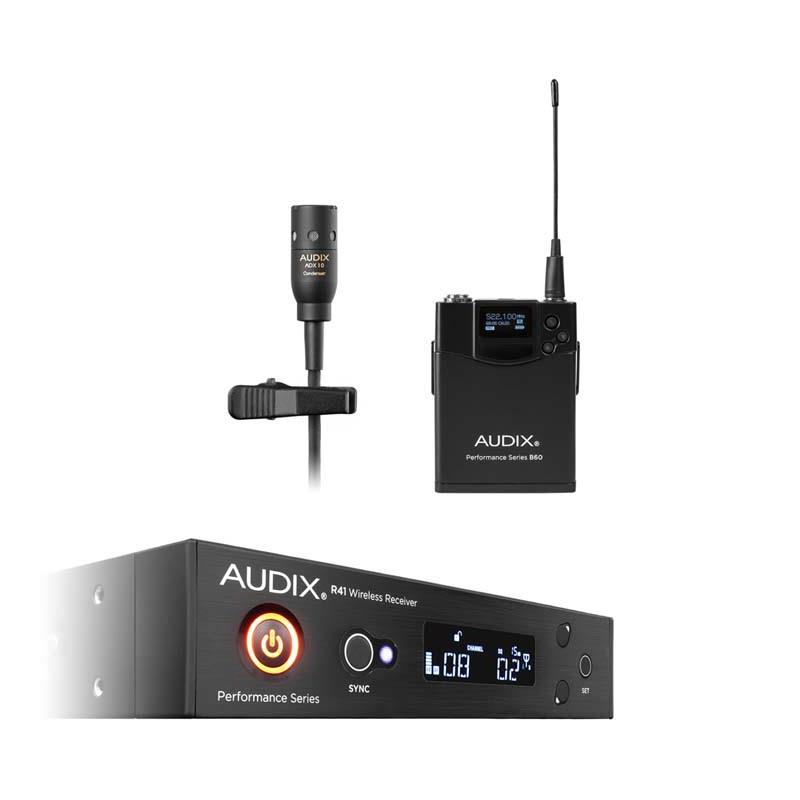

WIRELESS MICROPHONE SYSTEM – R41 DIVERSITY RECEIVER, B60 BODYPACK TRANSMITTER WITH ADX10 LAVALIER MICROPHONE
A value-packed bodypack diversity wireless system featuring the ADX10 cardioid miniature condenser microphone.
The ADX10 is a lightweight, low-profile mic designed for lavalier applications such as speech, presentation, and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with an exceptional response that is resistant to feedback and easy to use.
AVAILABLE FREQUENCY BANDS
A = 522 MHz – 554 MHz
B = 554 MHz – 586 MHz

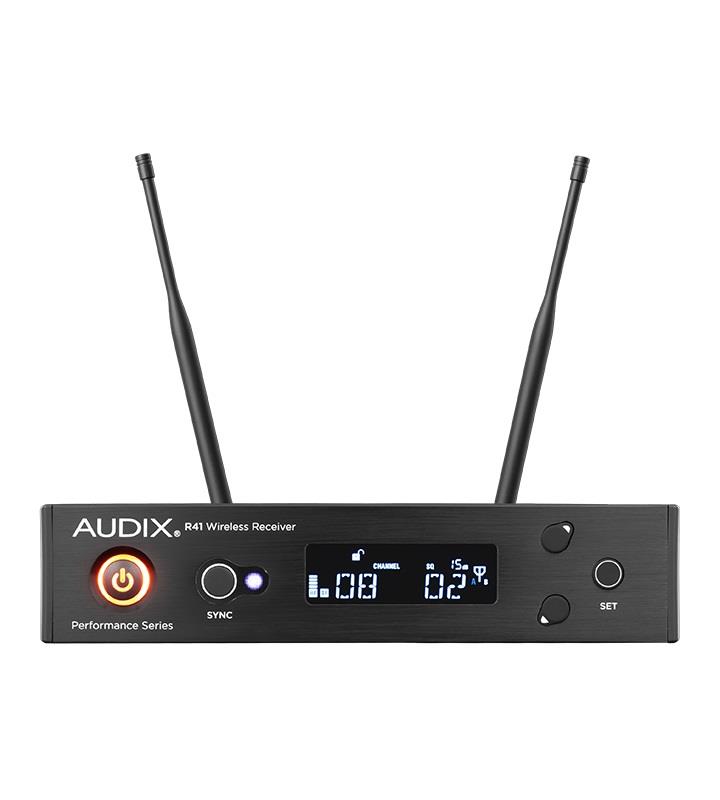

R41 Diversity Receiver
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
B60 L10 Bodypack Transmitter
- 64 MHz Wide spectrum transmitter with ADX10 lavalier
- Durable metal housing
- 14 Hour run time – AA batteries
Generelt
- Mikrofon applikation
- Lavalier
Lydspecifikation
- Microphone type
- Condensor Pre-polarized Condenser Vocal Microphone
- Direktivitet
- Cardioid
- Audio pickup range
- 20 cm 15-20cm
- Frequency range Min
- 50 Hz
- Frequency range Max
- 18.000 Hz
- Signal-to-noise ratio
- 65 dB
Tilslutninger
- Audio Udgange
- 6,3mm tele Unbalanced
- Audio Udgange
- XLR Balanced
Trådløse specifikationer
- Radiofrekvens
- 522 MHz - 554 MHz
- Antal kanaler
- 1 pcs.
- Samtidige kanaler
- 16 pcs.
- Trådløs rækkevide
- 91 m
Energy
- Strømforsyning
- 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Batteri
- 2x AA, 1,5V
- Batteritid
- 14 h
Dimensioner og vægt
- Bredde
- 205 mm Reciever
- Dybde
- 206 mm Reciever
- Højde
- 44 mm Reciever
- Nettovægt
- 0,87 kg Reciever
Additional information
- Inkluderet tilbehør
- R41 Reciever, Rackmount Hardware, 2x Antennas, Audio Cable, Carrying Case, Power Supply, User Guide, B60 L10 Bodypack Transmitter, 2x AA 1.5 V batteries, ADX10 Lavalier Microphone
- Garanti
- 3 år
Forpakningsinfo
- Forpaknings størrelse
- 395 x 304 x 76 mm
- Forpaknings vægt
- 2,71 kg
