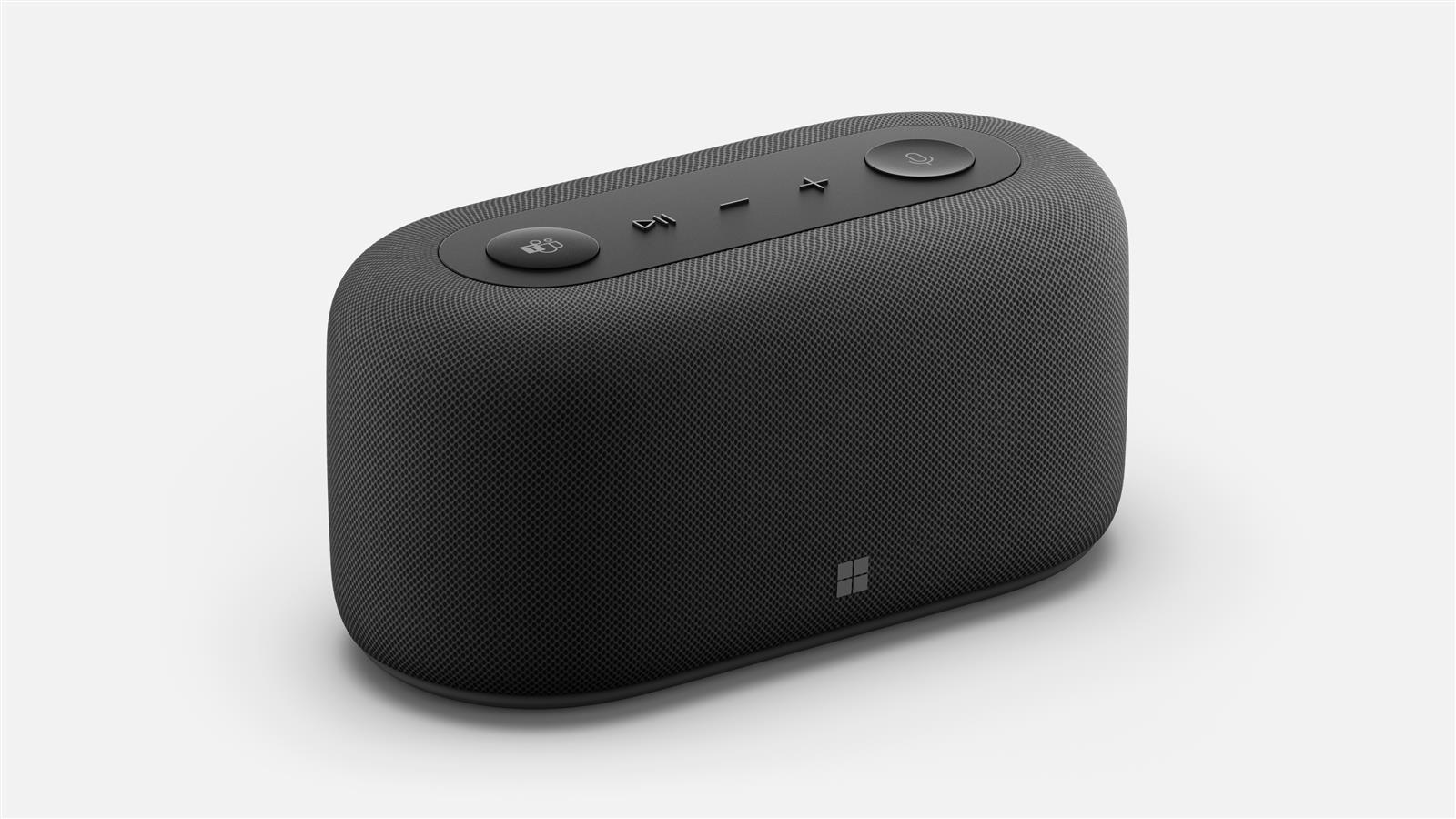

Reduce cord clutter, simplify your desktop, and upgrade your audio for meetings and music. All-in-one speakerphone connects your laptop to monitors and accessories while charging it—all with a single plug.
Expand your connections
Microsoft Audio Dock features four different ports (HDMI, USB-A, and two USB-C®) and a power pass-through to keep your PC fully charged all day. Connect up to two monitors with high-speed HDMI and USB-C® connections.
Be heard clearly during online meetings
Enjoy exceptional voice capture and reduced background sound thanks to dual forward-facing, noise-reducing microphones.
Multi-dimensional sound for music and meetings
Built-in Omnisonic® speakers deliver premium audio quality for any task during your day with 15-watt woofer and 5-watt tweeters. Control your listening experience with built-in volume up and down and pause and play.
Compatible with the apps you use today
Enjoy exceptional performance with online meeting and streaming apps.*
Join the conversation when you’re ready
Quickly join a meeting and raise your hand to participate with the integrated Microsoft Teams button.
Never hear 'you're on mute' again
Integrated mute control with status light ensures you don't get caught talking to yourself.
Certified for Microsoft Teams
Microsoft Audio Dock achieves high-quality voice and audio specifications and testing standards, with integrated app controls for an enhanced, reliable experience.
[*] Some accessories and software sold separately.
Speakers (qty)
Tweeter: OD25.9 x H11.6mm
Woofer: L54 x W48.8 x H41.5mm
Sound pressure level output
Up to 90 dB SPL
Frequency Response
70Hz ~ 20kHz for music playback
200Hz ~ 8KHz for conference
Audio Codec
Codec RK2108
Amp TAS5805
Microphones
Two omni-directional microphone arrays
Dock Connections
1 USB-C® (USB3.1 Gen 2, power up to 7.5 W)
Support DP alt mode, up to Dual Display ***
1 USB-C® (USB 3.1 Gen 2 data only, power up to 7.5 W)
1 USB-A 3.2 (USB 3.1 Gen2)
1 HDMI 2.0 port with 4K@60Hz
Support MST in USBC and HDMI port
Support USBC PD charging (up to 60 W)
Compatibility
Operating System:
Windows 11 Home/Pro, Windows 10, MacOS
Conference Software **
Microsoft Teams, Zoom, Google Meet
Connection to PC
USB-C
USB Cord Length
1 meter

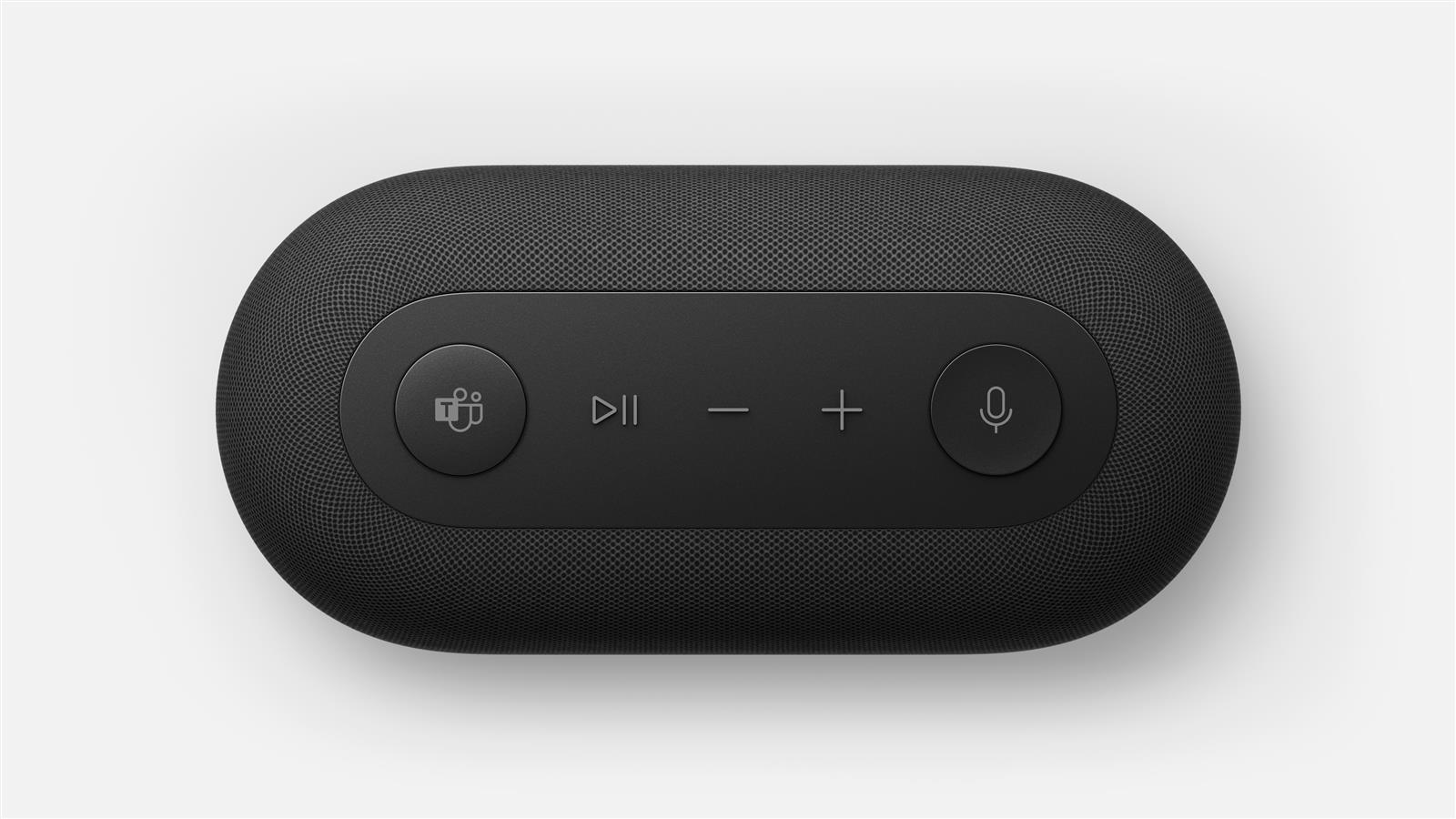

Button/Controls
Microsoft Teams button, Mute button, Volume up button, Volume down button, Play/Pause button
[ **] Some software sold separately.
[ ***] Dock could support dual 4k @ 60Hz display if host supports DSC.
Generelt
- Mac kompatibel
- Ja MacOS | Microsoft Teams, Zoom, Google Meet
- PC kompatibel
- Ja Windows 11 Home/Pro, Windows 10 | Microsoft Teams, Zoom, Google Meet
Dimensioner & Vægt
- Bredde
- 167,6 mm
- Højde
- 80,2 mm
- Dybde
- 81 mm
- Vægt
- 650 g
Yderligere oplysninger
- Farve
- Sort
Forpakningsinfo
- Forpaknings størrelse
- 225 x 210 x 93 mm
- Forpaknings vægt
- 1,51 kg
Forpakningsinfo (3 pcs)
- Forpaknings størrelse
- 279 x 229 x 238 mm
- Forpaknings vægt
- 5,39 kg
