ASUS ROG STRIX B550-F GAMING (WI-FI) II (ATX, B550, AM4)

Artikel nummer
1904000
Producent varenummer
90MB19V0-M0EAY0
EAN
4711081453314
På lager
Se priser og bestil

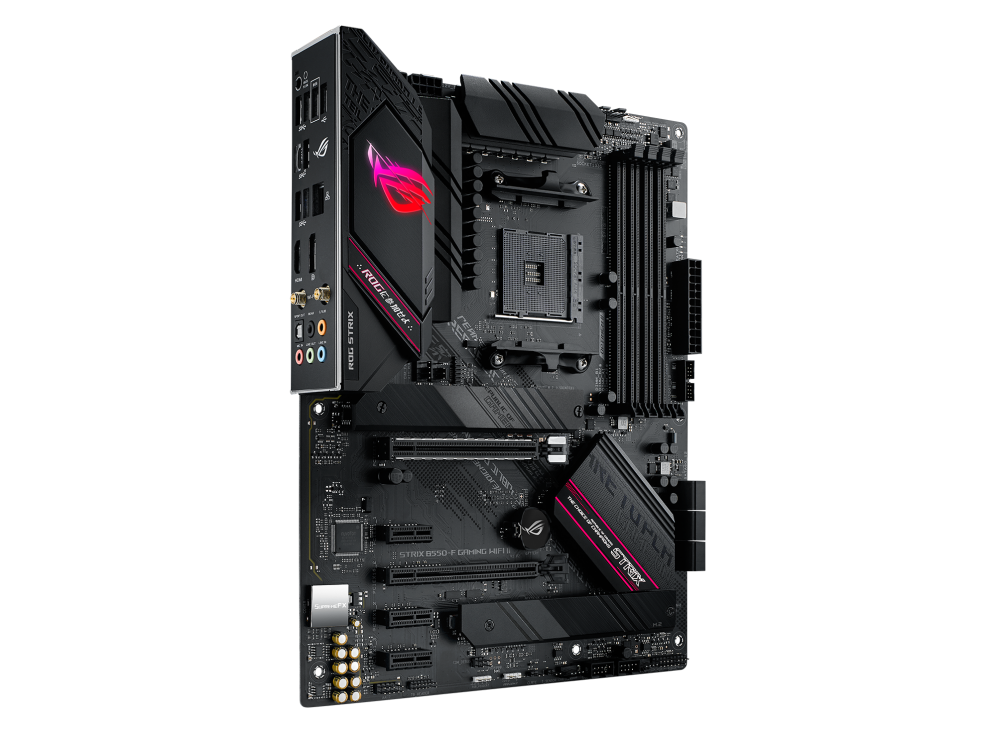

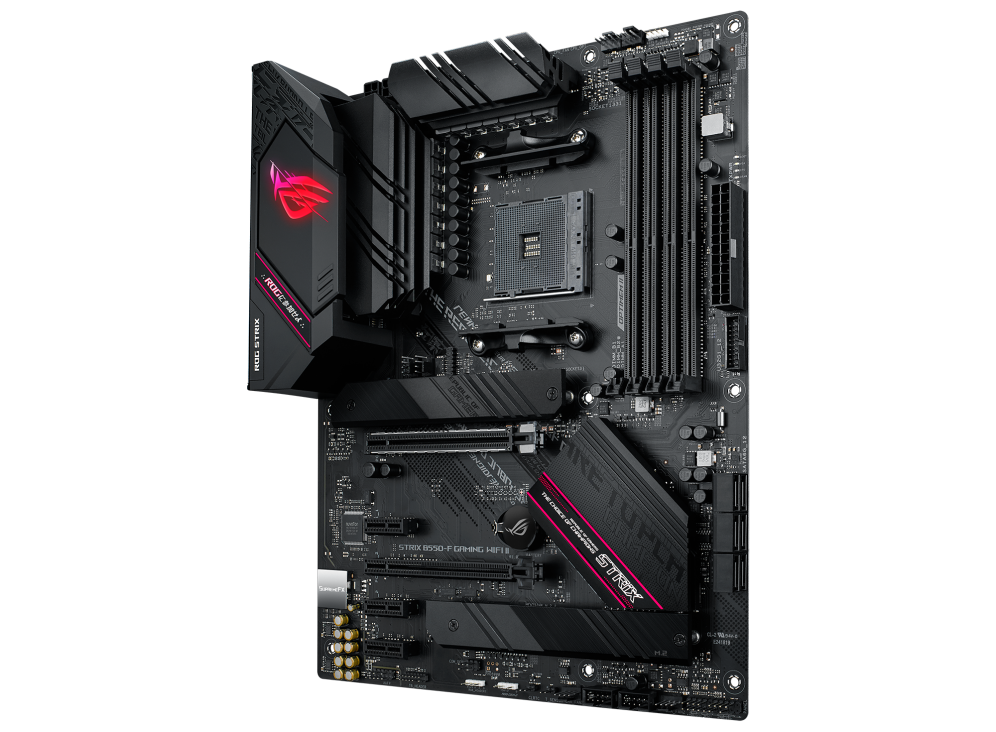

AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.

  • AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
  • Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
  • Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
  • Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound

    • Generelt

    CPU-Socket
    AMD AM4
    Chipset
    AMD B550
    Form factor
    ATX

    Hukommelse

    Memory Type
    DDR4-SDRAM
    Kanal understøttet
    Dual Channel
    Memory frequency (base)
    2.133 MHz
    Memory frequency (OC)
    4.600 MHz
    Memory slots
    4 pcs.
    Max Memory
    128 GB

    Expansion Slots

    PCIe x1
    3 pcs.

    Lagerenheder

    M.2 slots
    2 pcs.
    M.2 support
    M.2, SATA III
    SATA ports
    6 pcs.

    Kommunikation

    WiFi
    Ja
    WiFi Standard
    Wi-Fi 6 (802.11ax)
    Bluetooth
    Ja
    LAN controller
    Intel I225-V
    LAN hastighed
    2.5 Gigabit Ethernet

    Internal I/O Connectors

    RGB
    Ja

    Rear Panel Ports

    USB type-A
    Ja
    Ethernet
    Ja

    Dimensioner og vægt

    Bredde
    305 mm
    Længde
    244 mm
    Vægt
    945 g

    Forpakningsinfo

    Forpaknings størrelse
    349 x 276 x 73 mm
    Forpaknings vægt
    1,79 kg

    Forpakningsinfo (4 pcs)

    Forpaknings størrelse
    450 x 400 x 400 mm
    Forpaknings vægt
    9,00 kg
