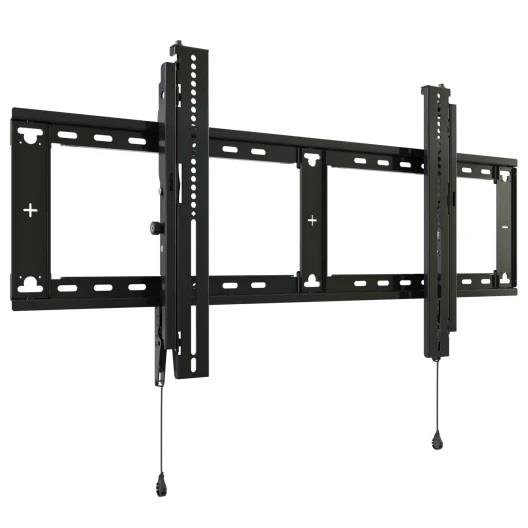

The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
- Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included

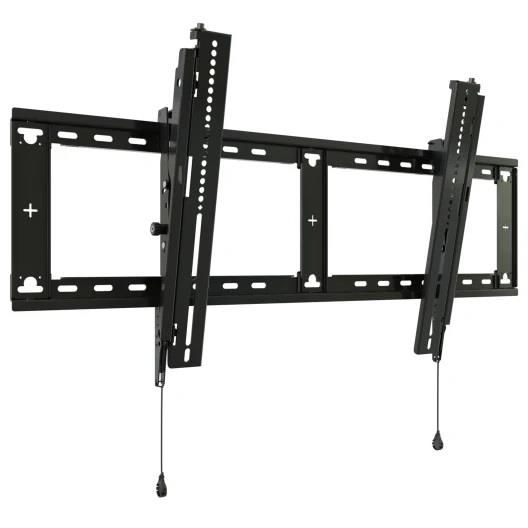

- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 450 mm
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
Generelt
- Antal skærme
- 1 pcs.
- Applikation
- Wall
- Farve
- Sort
- Display orientation
- Landscape
- Videovæg
- Nej
Funktioner
- Højdejustebar
- Ja 19,1 mm
- sidejustering
- Ja
- Dybde justering
- Nej
- Tilt
- Ja -12°
- Drejbar
- Nej
- Roterbar/Pivot
- Nej
- Motoriseret
- Nej
- Låsbar
- Ja With Padlock (Optional)
Dimensioner og vægt
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400, 900x100, 900x200, 900x300, 900x400
- Max vægt (pr skærm)
- 90,7 kg
Yderligere oplysninger
- Garanti
- 10 år
Forpakningsinfo
- Forpaknings størrelse
- 1.042 x 324 x 95 mm
- Forpaknings vægt
- 8,10 kg
