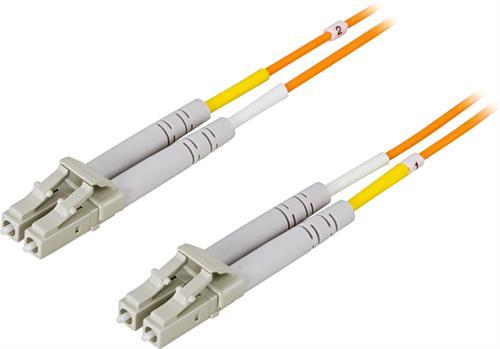

DELTACO OM1 fiber cable, LC - LC, duplex, UPC, 62,5/125, 10m, orange
A high-quality duplex cable where each channel is 2mm in diameter with an LSZH jacket. The connectors are UPC polished and have ceramic ferrules.
OM1 has a bandwidth of 200MHz/km with a transmission speed of 10Gb/s for up to 33m.
• Maximum 0.3dB insertion loss.
• More than 35dB return loss.
• OM1 Multimode 850nm/1300nm.
• 2mm in diameter.
• 62.5/125µm fiber core.
• LSZH jacket, free from chlorine.
• Beige plastic connector housings with strain reliefs.
• Ultra Physical Contact polished connectors.
• Individually tested and quality assured.
• Compatible with IEC61753-022-2.
Generelt
- Kabel type
- Installation cable
- Forbindelsestype 1
- LC
- Forbindelsestype 2
- LC
- Fibertype
- Multimode OM1
- Low smoke/halogen free
- Ja
Dimensioner & Vægt
- Længde
- 10 m
- Core diameter
- 62,5 µm
Yderligere oplysninger
- Farve
- Orange
- Garanti
- 25 år
Forpakningsinfo
- Forpaknings størrelse
- 100 x 100 x 20 mm
- Forpaknings vægt
- 30 g
