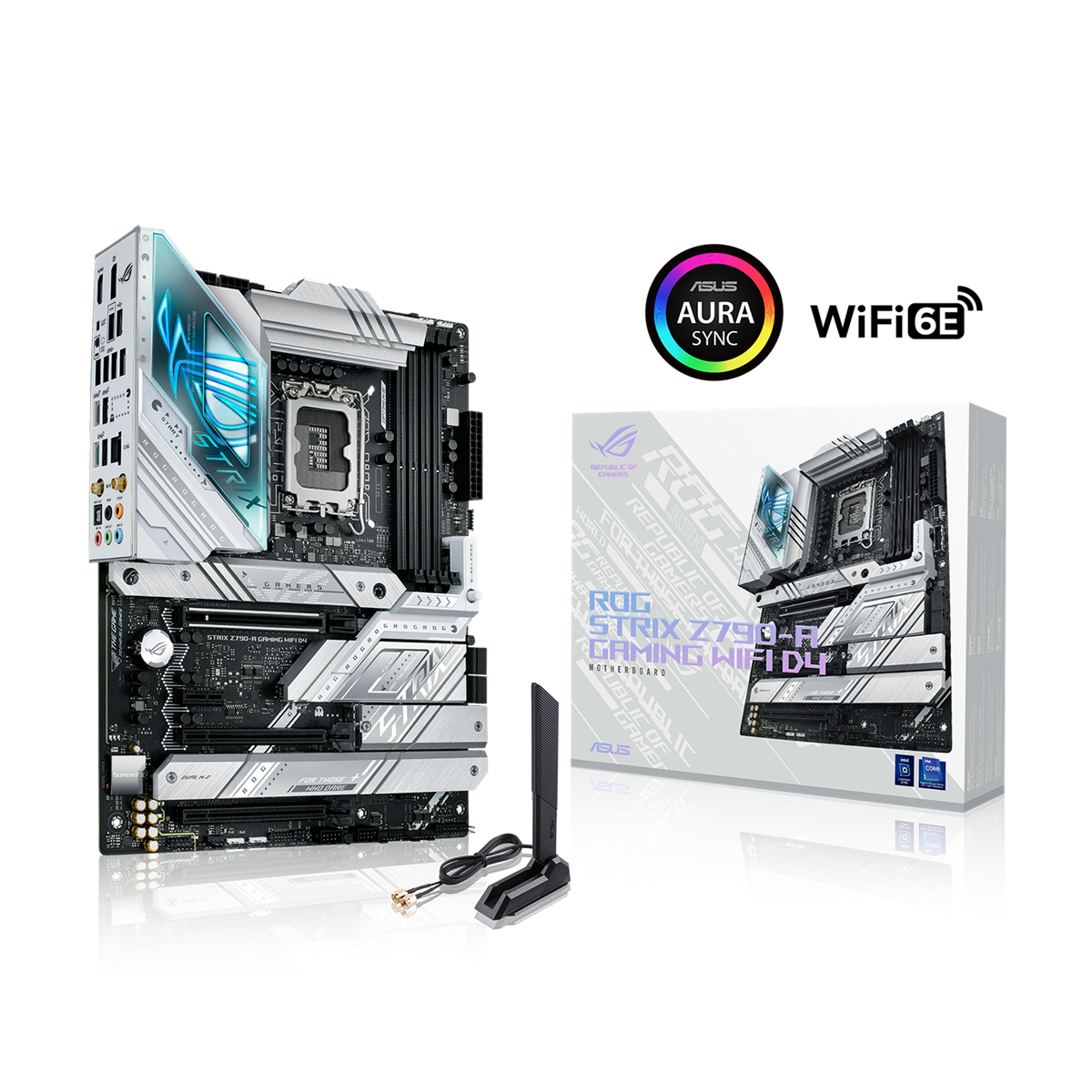

Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel® 13th Gen Core processors. PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.
DIY-FRIENDLY FEATURES
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
**BIOS FLASHBACK™
**BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-A at its center.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
PCIE 5.0
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.
POWER ARCHITECTURE
16 + 1 power stages rated to 70A each deliver ample current in order to drive 13th and 12th Gen Intel® Core™ Processors through any workload with ease.
OPTIMEM III
With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies.
VRM HEATSINKS
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
LEADING CONNECTIVITY
The ROG Strix Z790-A delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
USB 3.2 GEN 2X2
The Strix Z790-A comes loaded with two USB 3.2 Gen 2x2 Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.
SUPREMEFX AUDIO
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
PLAY IN STYLE
Bold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-A shine in every build.
Generelt
- CPU-Socket
- Intel 1700
- Chipset
- Z790
- Form factor
- ATX
Hukommelse
- Memory Type
- DDR4
- Kanal understøttet
- Dual Channel
- Memory frequency (base)
- 2.133 MHz
- Memory frequency (OC)
- 5.333 MHz
- Memory slots
- 4 pcs.
- Max Memory
- 128 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 3 pcs.
- PCIe x1
- 1 pcs.
Lagerenheder
- M.2 slots
- 4 pcs.
- M.2 support
- 2242/2260/2280/22110
- M.2 generation
- PCIe 4.0 x4
- M.2 interface
- PCIe 4.0 x4 & SATA modes
- SATA ports
- 4 pcs.
Kommunikation
- WiFi
- Ja, Nej
- WiFi Standard
- Wi-Fi 6E
- Bluetooth
- Ja
- Bluetooth standard
- 5.3
- LAN controller
- Intel®
- LAN hastighed
- 2.5Gb Ethernet
Internal I/O Connectors
- Fan Connector (4-pin)
- 8 pcs.
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- AUX ud
- Ja
- Ethernet
- Ja
Dimensioner og vægt
- Bredde
- 244 mm
- Længde
- 305 mm
Forpakningsinfo
- Forpaknings størrelse
- 348 x 286 x 78 mm
- Forpaknings vægt
- 2,25 kg
Forpakningsinfo (4 pcs)
- Forpaknings størrelse
- 400 x 400 x 450 mm
- Forpaknings vægt
- 11,00 kg
