Product page

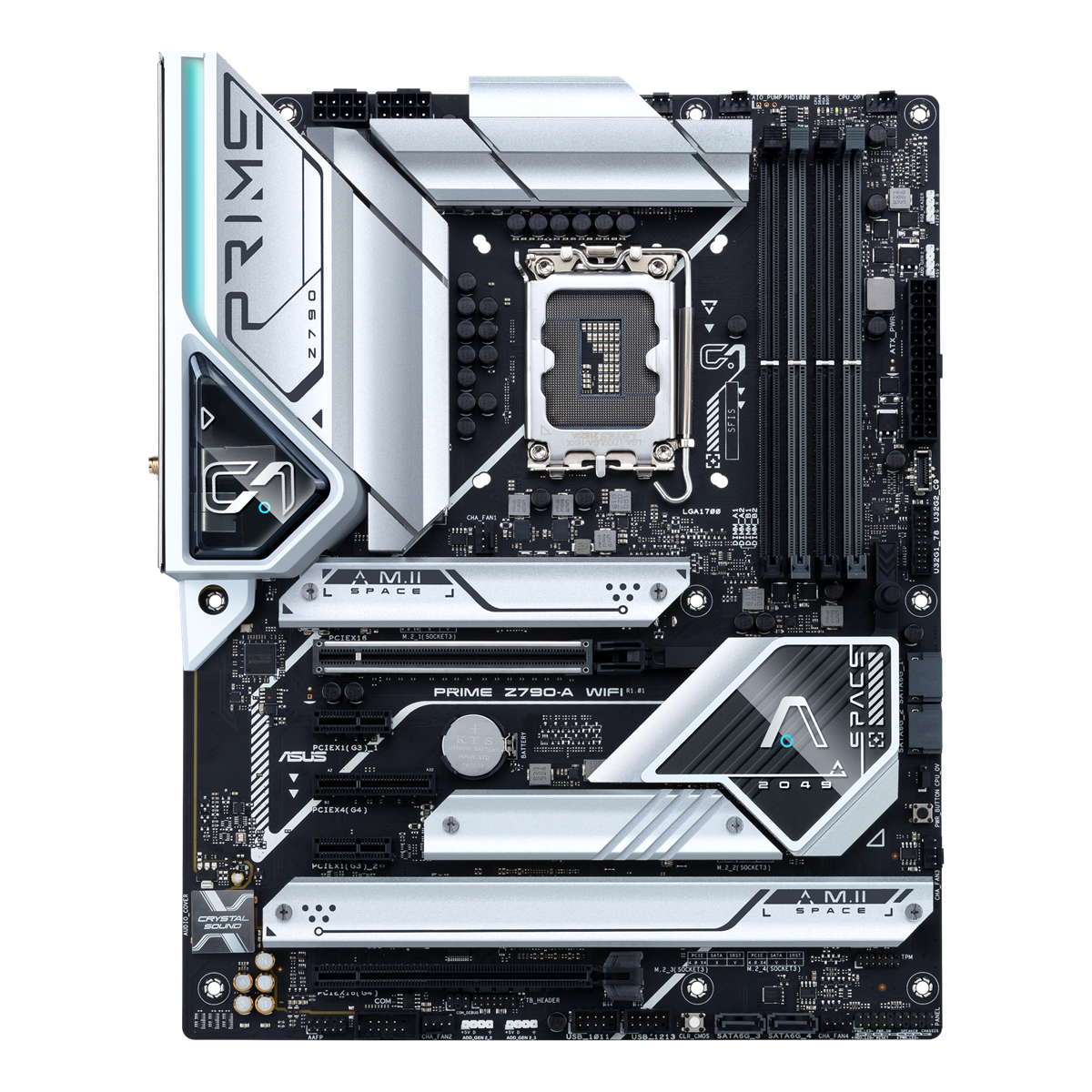

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

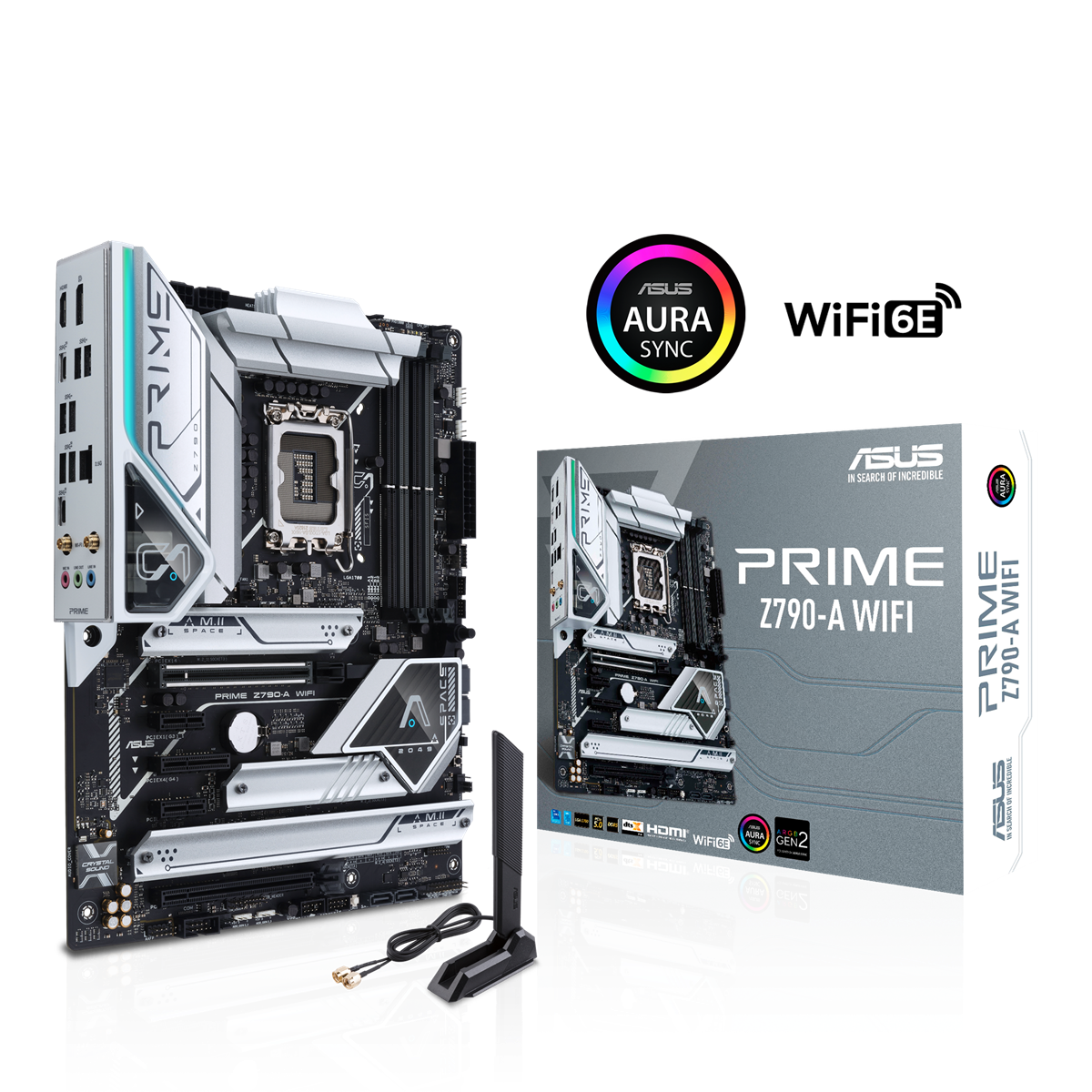

The ASUS PRIME Z790-A WIFI offers this all in a sleek, futuristic-looking package centered around a spaceship design aesthetic, with a silver-toned nameplate and chipset cover.

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-A WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME Z790-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsinks
Three M.2 heatsinks cover four M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

VRM Heatsinks and Thermal Pads
The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE
The PRIME Z790-A WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME Z790-A WIFI is geared to cater to the demands of these high-core-count CPUs.



Generelt

CPU-Socket
Intel 1700
Chipset
Z790
Form factor
ATX

Hukommelse

Memory Type
DDR5
Kanal understøttet
Dual Channel
Memory frequency (base)
4.800 MHz
Memory frequency (OC)
7.200 MHz
Memory slots
4 pcs.
Max Memory
128 GB

Expansion Slots

PCIe generation
PCIe 5.0
PCIe x16
2 pcs.
PCIe x1
2 pcs.
PCIe x4
1 pcs.

Lagerenheder

M.2 slots
4 pcs.
M.2 support
2242/2260/2280/22110
M.2 generation
PCIe 4.0 x4
M.2 interface
PCIe 4.0 x4 & SATA modes
SATA ports
4 pcs.

Kommunikation

WiFi
Ja
WiFi Standard
Wi-Fi 6E
Bluetooth
Ja
Bluetooth standard
5.3
LAN controller
Intel®
LAN hastighed
2.5Gb Ethernet

Internal I/O Connectors

Fan Connector (4-pin)
7 pcs.

Rear Panel Ports

USB type-A
Ja, Nej
USB type-C
Ja
HDMI
Ja
DisplayPort
Ja
AUX ud
Ja
Ethernet
Ja

Dimensioner og vægt

Bredde
244 mm
Længde
305 mm

Forpakningsinfo

Forpaknings størrelse
281 x 342 x 76 mm
Forpaknings vægt
1,93 kg

Forpakningsinfo (4 pcs)

Forpaknings størrelse
350 x 300 x 300 mm
Forpaknings vægt
8,00 kg
