Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
- Key Features:

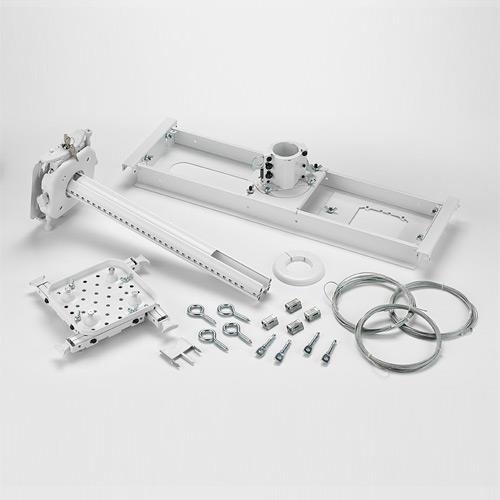

- System comes out of box in the order needed with mount and column preassembled

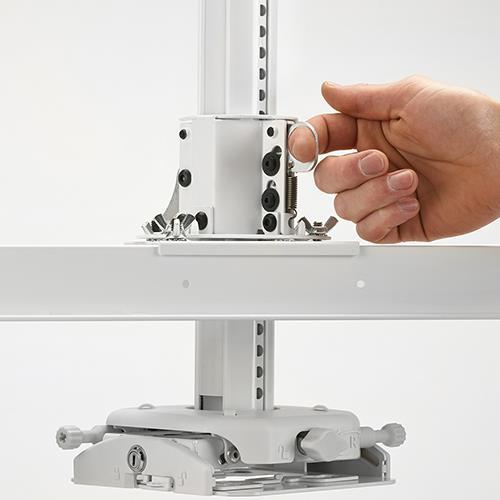

- Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids
- Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
- Detachable electric plate for pre-wiring
- Compatible with popular 2 gang adjustable mud rings
- Tool-FreeMicrozone adjustment eliminates the need for set screws
- CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
- Adjustable 0-12" column with dual inlay channels for high and low voltage cables
- Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
- Improved universal interface for easier lock/unlock at projector connection
Generelt
- Applikation
- Suspended Ceiling
- Farve
- Hvit
Funktioner
- Kolonne type
- Adjustable
- Vinklet loft
- Nej
- Tilt
- Ja +/-10°
- Drejbar
- Ja +/-360°
- Roterbar/Pivot
- Ja +/-3°
- Låsbar
- Ja Key and lock system with all-points security hardware
Dimensioner og vægt
- Max vægts kapacitet
- 15,9 kg
- Kolonne længde min
- 0 mm
- Kolonne længde max
- 305 mm
Additional information
- Garanti
- 10 år
Forpakningsinfo
- Forpaknings størrelse
- 749 x 223 x 204 mm
- Forpaknings vægt
- 9,01 kg
