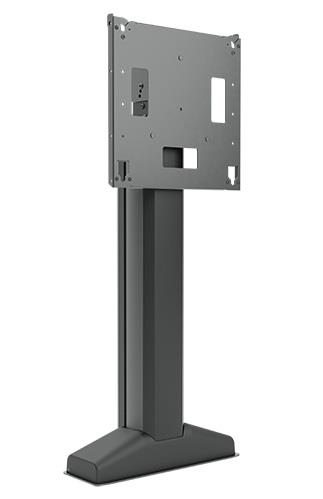

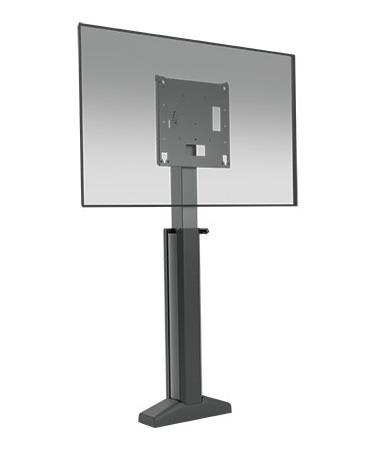

Ideal for interactive applications, mounts with electric height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides 26” (660 mm) of vertical lift.

Easy to install. Easy to adjust.

Key Features

  • Anti-collision sensor immediately halts, then reverses motion of display upon encountering an obstruction to avoid pinching fingers or damaging technology
  • Control pad included. Optional accessories sold separately; Remote Control Kit PACREM (includes remote and Bluetooth™ dongle) or choose Bluetooth Dongle PACBLU to access phone app
  • A full line of accessories can be installed with mount, including shelves, padlock and speaker adapters


Generelt

Antal skærme
1 pcs.
Display orientation
Landscape
Applikation
Floor
Farve
Sort
Videovæg
Nej

Funktioner

Kolonne type
Adjustable
Højdejustebar
Ja
Tilt
Ja +0-4°
Roterbar/Pivot
Ja +/-2,5° Flipable with PAC400 rotation adapter
Mobil
Nej
Motoriseret
Ja
Låsbar
Ja via optional padlock

Dimensioner og vægt

VESA mount interface (mm)
200x200, 200x300, 200x400, 200x500, 300x200, 300x300, 300x400, 300x500, 400x200, 400x300, 400x400, 400x500, 500x200, 500x300, 500x400, 500x500, 600x200, 600x300, 600x400, 600x500, 700x200, 700x300, 700x400, 700x500, 800x200, 800x300, 800x500, 800x500
Kolonne længde min
1.069 mm Floor to center of display
Kolonne længde max
1.719 mm Floor to center of display
Max vægt (pr skærm)
90 kg

Yderligere oplysninger

Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
1.231 x 647 x 254 mm
Forpaknings vægt
39,00 kg

Tilbehør
