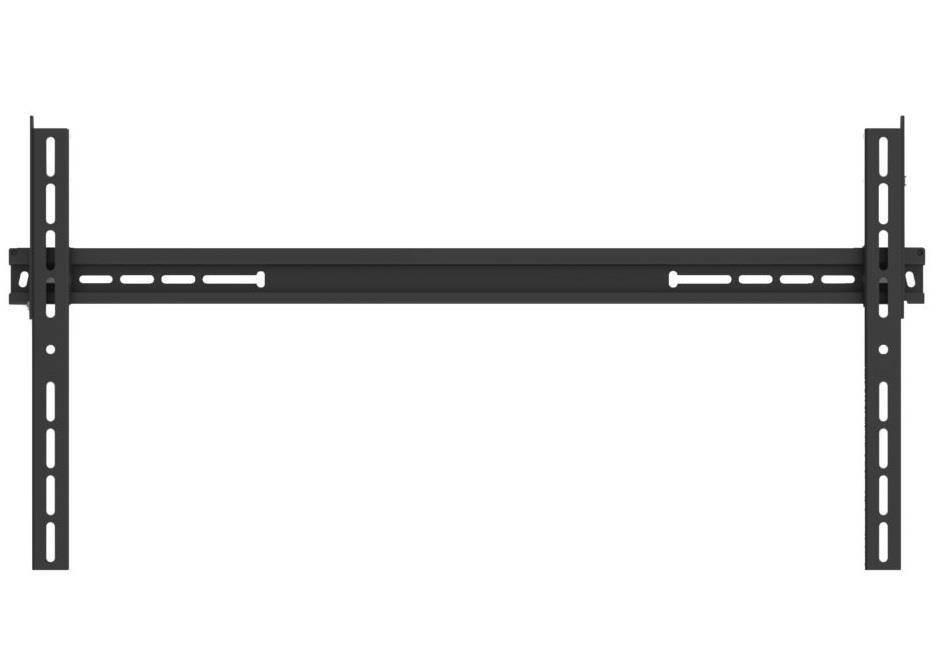

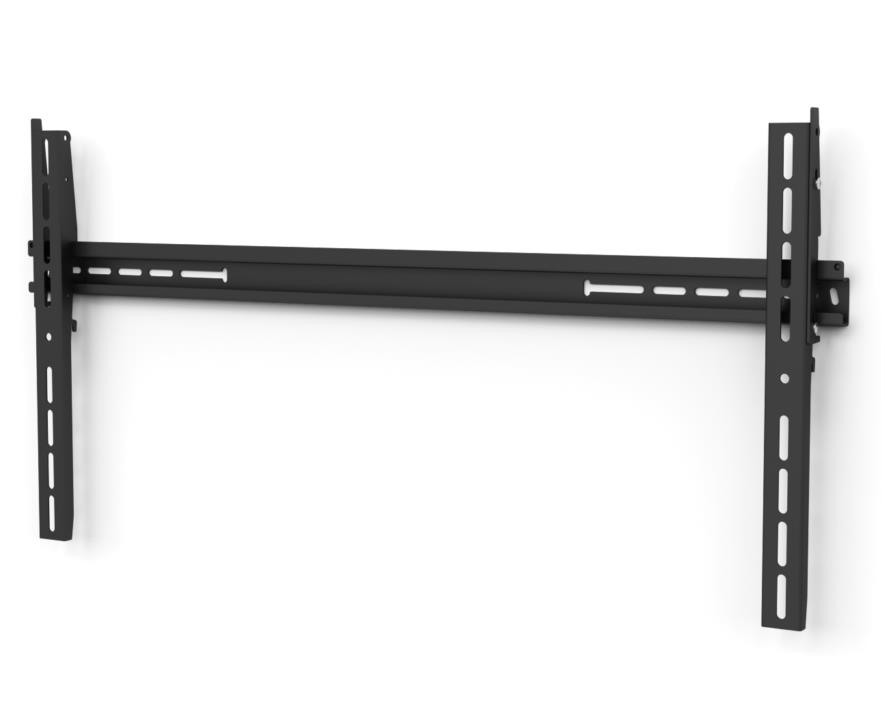

A universal wall bracket with fixed tilt
Simple to mount, the hole patterns have been designed such that the bracket fits exactly between two wall studs. Can be tilted in steps, and designed to be locked by a locking pin or padlock for improved personal safety and security from theft. Suitable for VESA hole patterns with maximum dimensions 800 x 400 mm and minimum dimensions 100 x 100 mm.
Generelt
- Antal skærme
- 1 pcs.
- Applikation
- Wall
- Farve
- Sort
- Display orientation
- Landscape
- Videovæg
- Nej
Funktioner
- Højdejustebar
- Nej
- sidejustering
- Ja, Nej
- Dybde justering
- Nej
- Tilt
- Ja 0° / +5°
- Tilt
- Nej
- Drejbar
- Nej
- Roterbar/Pivot
- Nej
- Motoriseret
- Nej
- Låsbar
- Ja With optional padlock
- Låsbar
- Nej
Dimensioner og vægt
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400
- Max vægt (pr skærm)
- 50 kg
Yderligere oplysninger
- Garanti
- 5 år
Forpakningsinfo
- Forpaknings størrelse
- 500 x 300 x 70 mm
- Forpaknings vægt
- 2,50 kg
