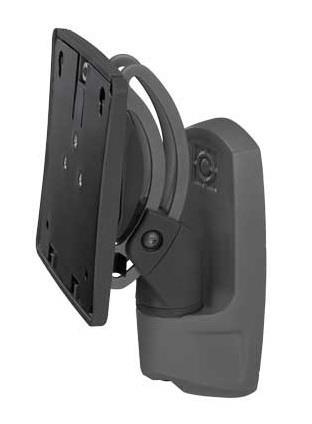

The new Kontour™ K0 Wall mounts, with Centris™ Extreme Tilt Pitch/Pivot, are great solutions for mounting a single monitor with exceptional range of motion. With an extremely low profile and sleek design, applications include public spaces, back-kitchen video monitoring, security monitors, or in the office.

  • Key Features
  • Sleek, solidly-constructed mounts in subtle semi-gloss silver & black finishes
  • Enhanced fingertip positioning of monitor(s) for optimal viewing comfort
  • Enhanced patented Centris™ Extreme Tilt provides +75°, -10° of effortless tilt
  • Adjustable tension settings on rotation & tilt allow free-moving or fully locked display positioning
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Wall Mounts easily install to any wall using the fast-installing Wall Plate
  • Pole Mounts easily clamp to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
  • OFB office furniture interface brackets available for most office systems
  • VESA® 75 x 75 mm and 100 x 100 mm compatible
  • FSB interface brackets available for non-VESA compliant monitors
  • 40 lb (18.1 kg) weight capacity for use with larger monitors, touch-panels, and all-in-one computers


Generelt

Antal skærme
1 pcs.
Applikation
Wall
Farve
Sort
Display orientation
Landscape, Portrait

Funktioner

Gas-fjeder dæmpning
Nej
Højdejustebar
Nej
sidejustering
Nej
Dybde justering
Nej
Tilt
Ja +75° / -10°
Drejbar
Ja
Roterbar/Pivot
Ja +/-90°
Låsbar
Nej

Dimensioner og vægt

VESA mount interface (mm)
100x100, 75x75
Max vægt (pr skærm)
18,14 kg
Dybde (Basen)
85 mm
Nettovægt
2,04 kg

Yderligere oplysninger

Garanti
10 år

Forpakningsinfo

Forpaknings størrelse
254 x 254 x 127 mm
Forpaknings vægt
1,33 kg
