High–performance, highly–scalable, AVoIP auto–switch encoder with Dante over 1G network

  • Outstanding end–user experience
  • Ideal for large–scale deployments
  • Robust security
  • Simple planning and rollout
  • Managed by KDS-7-MNGR

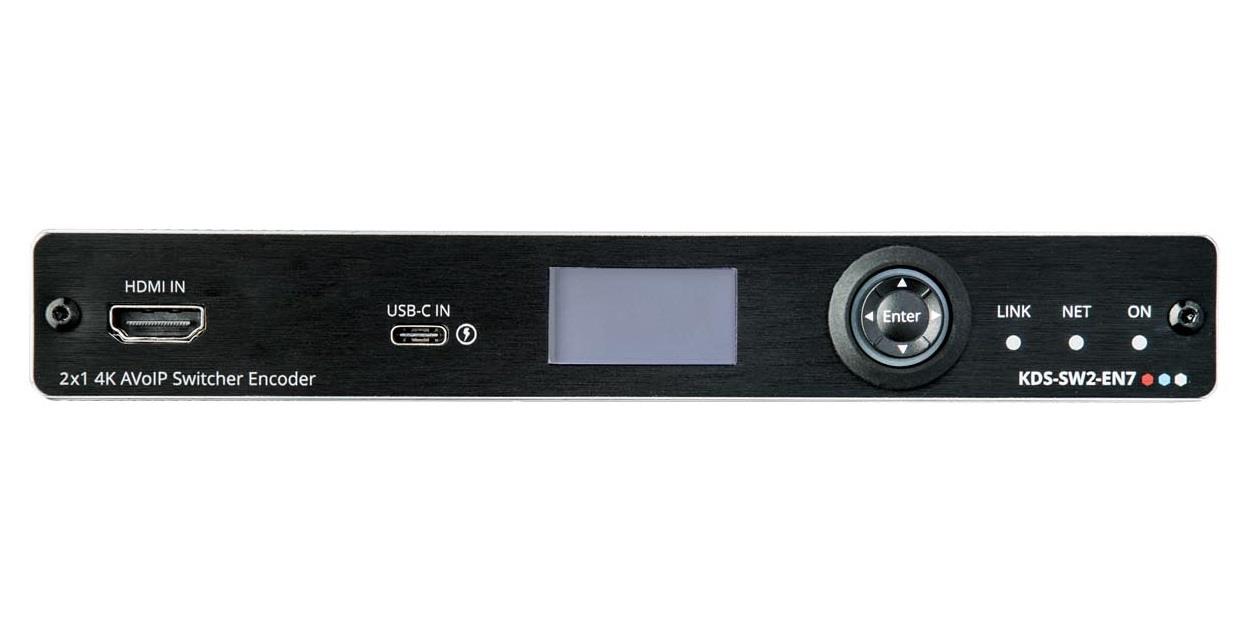

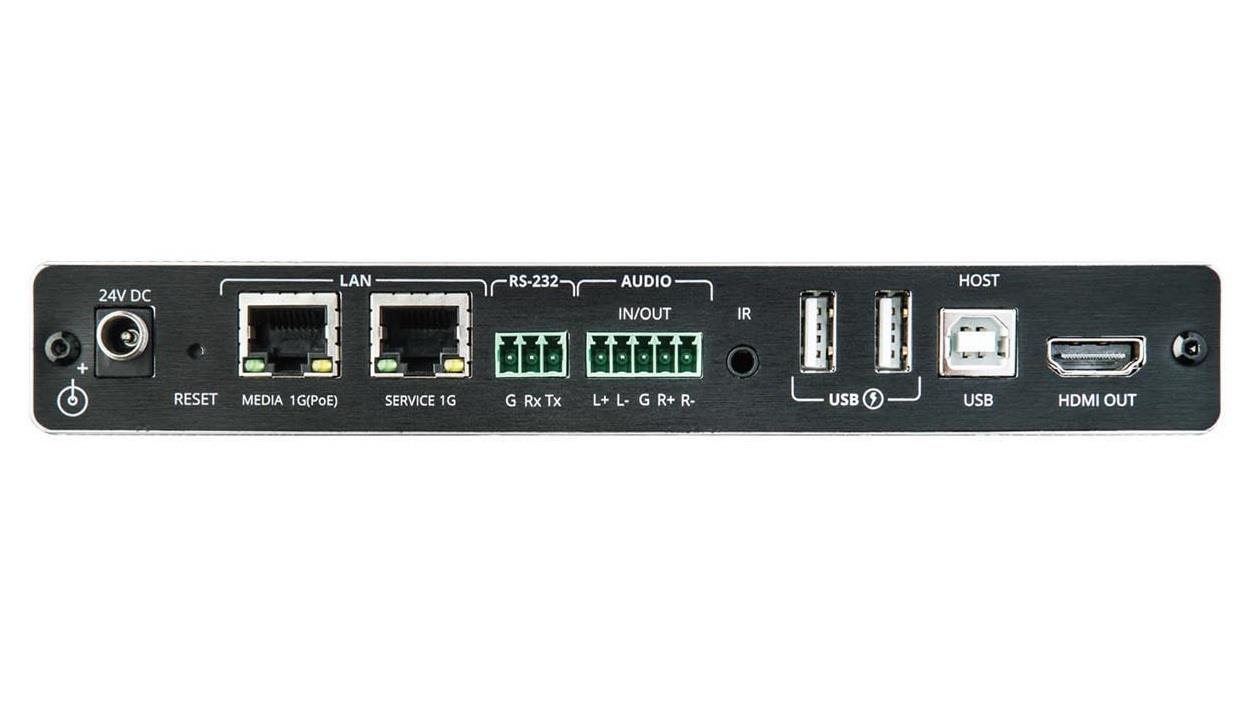

KDS−SW2−EN7 auto−switch encoder with HDMI and USB−C inputs and Dante embedding and de−embedding.

Outstanding end–user experience

  • 2 HDMI and 1 USB–C with charging capabilities for laptop
  • Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
  • Large scale video wall — up to 16x16
  • Instantaneous switching time — 1 second

Ideal for large–scale deployments

  • Highly scalable — 999 channels build in support
  • State of the art management device
  • Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration

Robust security

  • Cost–effective from day one
  • Full product range for any site, any application
  • Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

Simple planning and rollout

  • Cost–effective from day one
  • Full product range for any site, any application
  • Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

Dante Audio Stream

  • Input (2 channels) — Embedding to HDMI
  • Output (2 channels) — Embedding from HDMI OR Analog Input
  • Option to configure to be on a separate VLAN/subnet

Applications:

  • For real–time essential installations such as command and control rooms
  • For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
  • AV distribution systems with one or more sources and many displays in schools, universities, and public venues
  • For AV installations where low latency KM/KVM capabilities are required


Generelt

Extender type
Transmitter (Tx)
Teknologi
JPG 2000

Billedspecifikation

Max understøttet opløsning
3840x2160
Opdateringshastighed
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
Nej
Video operation modes
Videowall/Tileing Up to 16x16 displays

Yderligere oplysninger

Video ind
HDMI, IP stream (RJ-45), USB-C
Video ud
HDMI With CEC
Audio Udgange
Euroblock line 5-p Balanced Stereo Audio
Kontrol
Ethernet/IP (RJ-45), Front buttons, IR cable connection, On-screen display, RS-232, Web interface
USB passthrough
Ja 2x USB-A (Device) + 1x USB-A (Host), for KM/KVM use

Kommunikation

Switch Data Rate
1GbE
Req. Network Switch
1Gb Ethernet (PoE)

Energi

Strømforsyning
PoE on LAN port or 24V DC External Power Supply

Dimensioner og vægt

Bredde
189 mm
Dybde
145 mm
Højde
27,6 mm
Nettovægt
0,67 kg

Yderligere oplysninger

Installation
19" Rack, 1U With optional rack adapter
Installation
Freestanding/Shelf
Inkluderet tilbehør
2 Bracket sets, Quick start guide
Garanti
7 år

Forpakningsinfo

Forpaknings størrelse
317 x 182 x 81 mm
Forpaknings vægt
999 g
