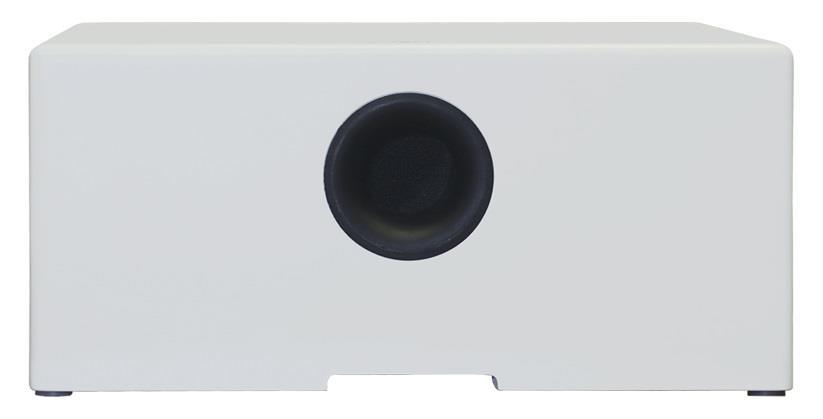

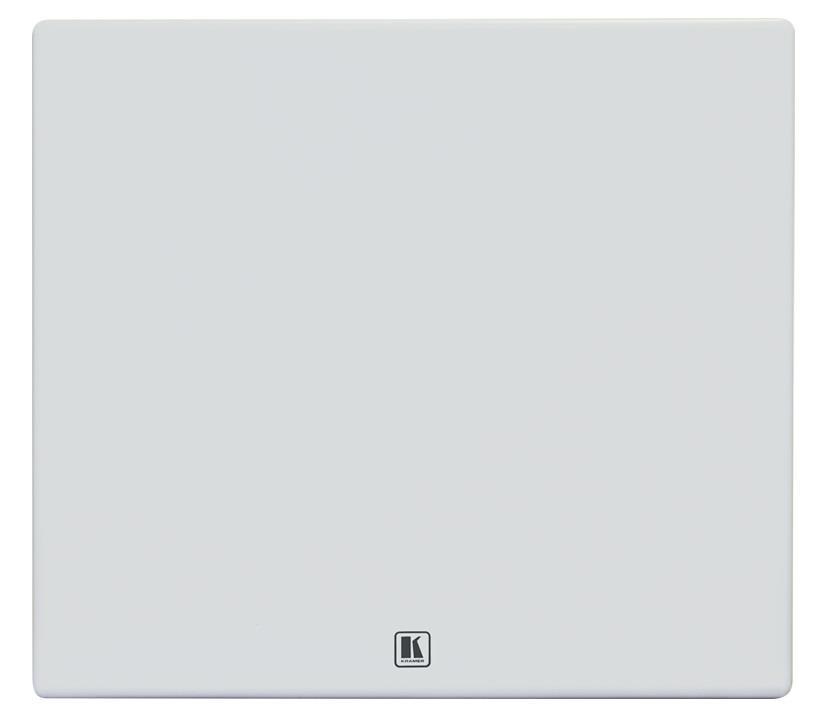

The Tavor 8−Sub is a powered subwoofer that can be mounted on the wall, the floor or next to the wall in a way that hides the control panel. The product reproduces low−range audio frequencies and includes auto standby and adjustable crossover frequencies.

Key Features:
• Type - Powered subwoofer.
• Woofer - 8" aluminum with rubber surround.
• Frequency Response - 30Hz to 600Hz @-10dB.
• Built In Power Amplifier - 50W RMS, 140W continuous program.
• Inputs - 1 line level stereo on RCA connectors, 1 LFE input on an RCA connector, 2 high-level inputs on binding posts for bypassing internal amplifier.
• Volume Level Knob.
• Crossover Frequency Adjustment - 65Hz to 150Hz on a control knob.
• Reverse Phase Selector - 0 or 180Deg.
• Optional Auto Standby.
• Selectable Power Settings - 110-120V AC, 220-240V AC.



Udendørs brug
Nej
Antal til levering
Single unit
WiFi
Nej

General

Speakerapplikation
Subwoofer, Wall
Aktiv/Passiv
Active
Farve
Hvit

Audio specification

Woofer
8 " Aluminum with rubber surround
Frequency range Min
30 Hz -10dB
Frequency range Max
600 Hz -10dB
Følsomhed (1W/1m)
95 dB 1W, 1m
Strømhåndtering
50 W RMS, 140W Program
Forstærker Power
50 W RMS, 140W Program
70/100 mode
Nej
Max SPL
108 dB Continuous, peak: 114dB

Connections

Audio indgange
RCA x1 (L/R or LFE) Line, Low-level Unbalanced
Audio indgange
Speaker binding post single x1 (L/R) High-level
Ethernet
Nej
Bluetooth
Nej

Energy

Strømforsyning
Selectable: 110–120V AC 60Hz or 220–240V AC 50Hz Built-in Power Supply

Measurements and weight

Bredde
450 mm
Dybde
400 mm
Højde
205 mm
Nettovægt
10,3 kg

Various

Inkluderet tilbehør
Power cable, 4 black rubber feet
Garanti
1 år

Forpakningsinfo

Forpaknings størrelse
450 x 400 x 205 mm
Forpaknings vægt
13,20 kg
