The VA−102P12 is a 10−output power supply that powers 12V DC powered devices. The VA−101P12 can supply a maximum of 1A of current to each of ten devices for a total of 10A. The power supply is especially useful in high−population installations for saving space and eliminating a large number of 12V DC power adapters. The MD model is suitable for medical applications.

Key Features:
· Space Saving - Replaces up to 10 individual 12V DC power supplies for Kramer TOOLS™, Kramer PicoTOOLS™, and Kramer 12V DC Desktop models.

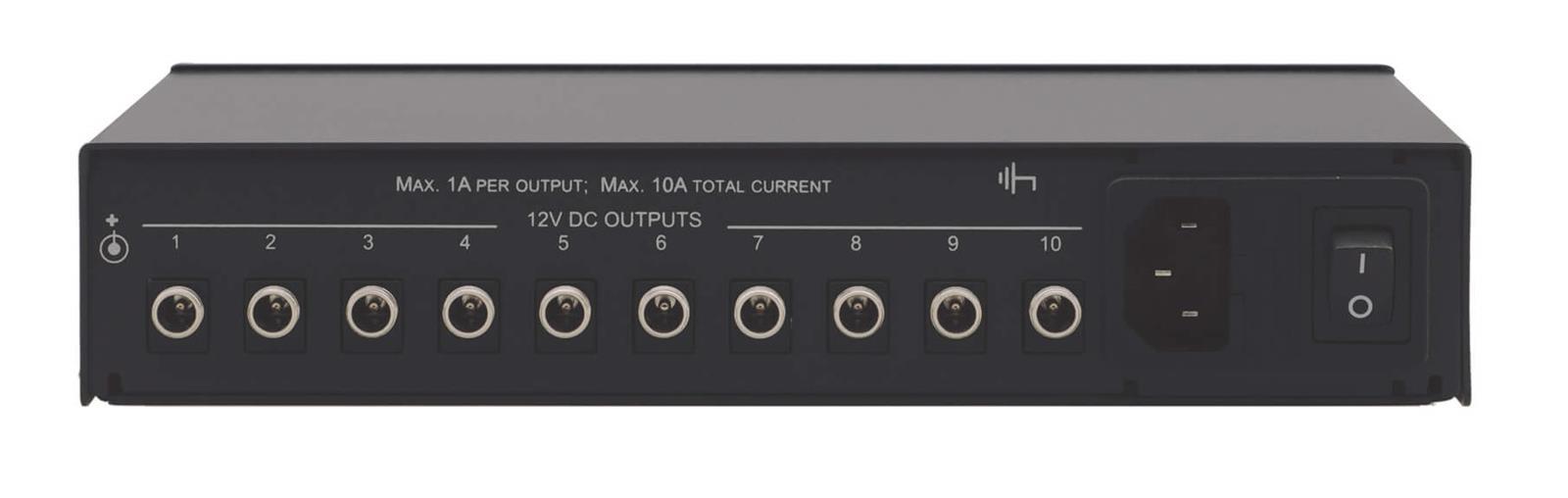

· Outputs - 10 12V DC outputs that supply 1A max. current for each output for a total of 10A total.

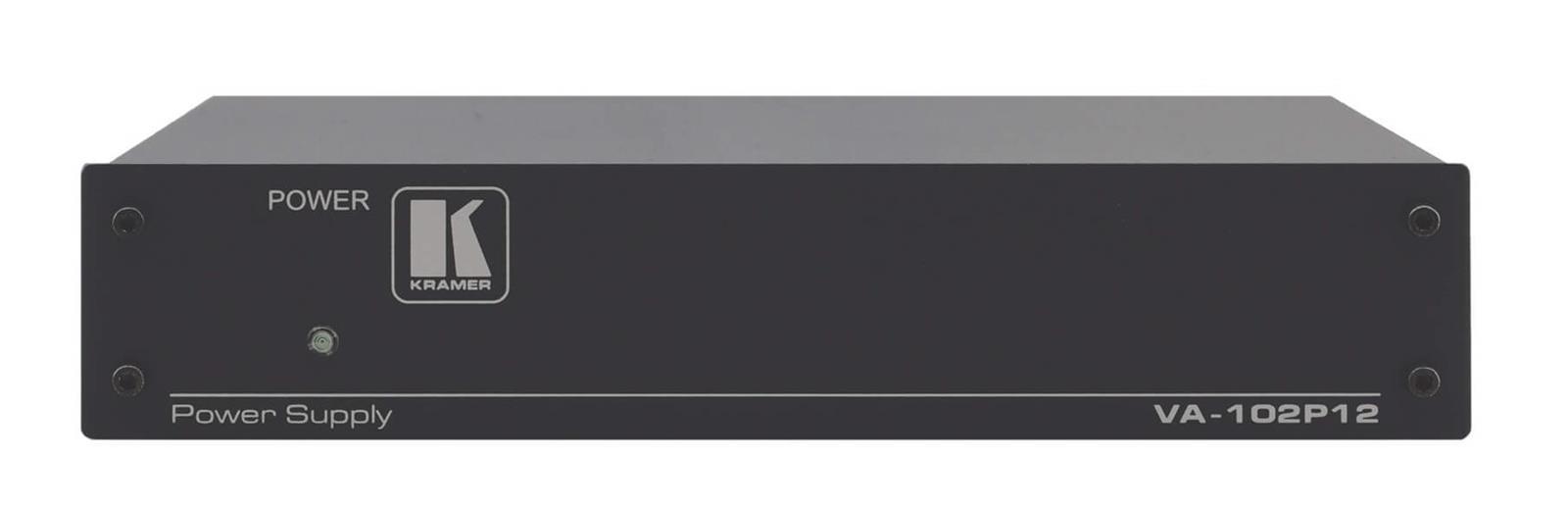

· Indicator - Power LED.
· Size - Desktop - Mount 2 units side-by-side in a 1U rack space with the optional RK-1 adapter.



Generelt

Farve
Sort

Dimensioner og vægt

Bredde
215 mm
Dybde
163 mm
Højde
43,6 mm
Nettovægt
1,2 kg

Yderligere oplysninger

Inkluderet tilbehør
10 DC to DC cables, 95cm per cable, AC Power Cable
Garanti
7 år

Forpakningsinfo

Forpaknings størrelse
351 x 212 x 72 mm
Forpaknings vægt
1,76 kg
