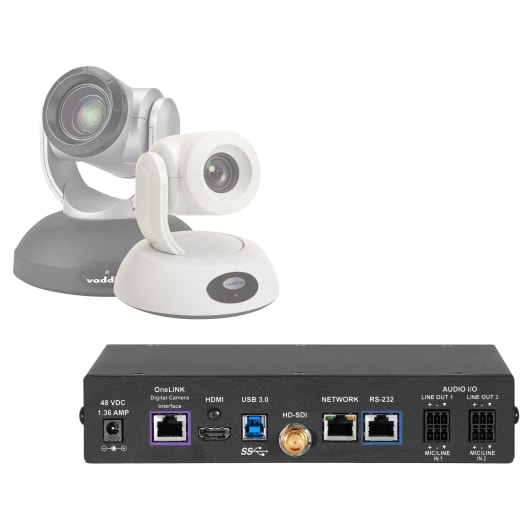

Brings your Vaddio HDBaseT camera and non-USB audio components into your USB conferencing environment and enables you to pair them with a Polycom codec for traditional videoconferencing quality. Extends power, video and control to your camera over a single category cable.

Packaged for Polycom 300, 310, 500 or 700 codecs; compatible with RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW and DocCAM 20 HDBT.

Key Features:

  • Simple, clutter-free camera extension with HDBaseT technology
  • Power, video and control over a single Cat-5e cable up to 70m, or over a Cat-6 cable up to 100m
  • Bridges audio and video for easy soft-client conferencing
  • Configurable audio matrix with AEC
  • Simultaneous HDMI, USB 3.0, IP Streaming, and HD-SDI outputs
  • Up to 1080p/60 resolution available over uncompressed USB

For Polycom RealPresence Group series 300, 310, 500 or 700 codecs; compatible with RoboSHOT 12 and 30 HDBT, RoboSHOT 20 UHD and RoboSHOT IW

More Flexibility for Room Design and Installation
Get more from your codec: Bridge traditional videoconferencing equipment into the USB-based conferencing applications such as Skype for Business, Google Hangouts, or Zoom.

Use the camera you want: OneLINK Bridge gives you the flexibility to pair a Vaddio camera with your Polycom codec.

Sounds complicated - but it's not. Tailored for Polycom codec systems and compatible with RoboSHOT 12 and 30 HDBT, RoboSHOT 20 UHD, and DocCAM 20 HDBT cameras, this OneLINK Bridge kit simplifies installation by extending power, video and control to your camera over a single Cat-5e cable up to 328 ft (100m).

Benefits include:

  • More flexibility in camera and/or codec placement – no longer dependent on the location of the codec
  • HDBaseT interface extends power, video and control up to 100 m – Polycom systems can now go into larger rooms
  • Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing, making traditional codecs more flexible
  • Connects to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
  • Plug and play usability for BYOD conferencing environments
  • Intuitive browser-based user interface for configuration and system administration

In the box:

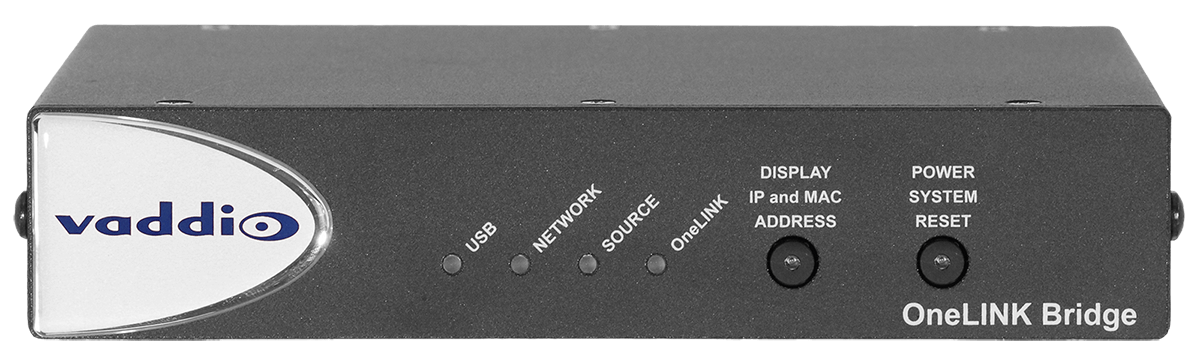

  • OneLINK Bridge Interface
  • Quick-Start Guide
  • 48V power supply with AC cord set(s)
  • 4x 3-position phoenix-style connectors
  • 0.6m fan-out cable for Polycom, codec side
  • 1.8m USB 3.0 cable, type A to B
  • EZCamera RS-232 Control Adapter


Extender type
Reciever (Rx)
Teknologi
HDBaseT 1.0 Class B
Rækkevidde
100 m over Cat-6 cable

Billedspecifikation

Max opløsning ud
1920x1080
Opdateringshastighed
60 Hz

Connections

Video ind
HDBaseT (RJ-45)
Video ud
HDMI, HD-SDI, USB-B
Audio indgange
Euroblock line x2 Line/Mic Balanced
Audio Udgange
Euroblock line x2 Line Balanced

Funktioner

Scaler
Nej
USB passthrough
Nej, Nej
Kontrol
Ethernet/IP (RJ-45) Telnet
Kontrol
Front buttons, RS-232

Energi

Strømforsyning
External Power Supply

Dimensioner og vægt

Bredde
213 mm Reciever
Dybde
152 mm Reciever
Højde
44 mm Reciever
Nettovægt
1,5 kg Reciever

Yderligere oplysninger

Installation
19" Rack, 1U with rack adapter (optional)
Installation
Freestanding/Shelf
Installation
Table Under table mounting with optional bracket
Inkluderet tilbehør
See product text above
Garanti
3 år

Forpakningsinfo

Forpaknings størrelse
460 x 280 x 130 mm
Forpaknings vægt
1,40 kg

Tilbehør

Artikel nummer 2380157
