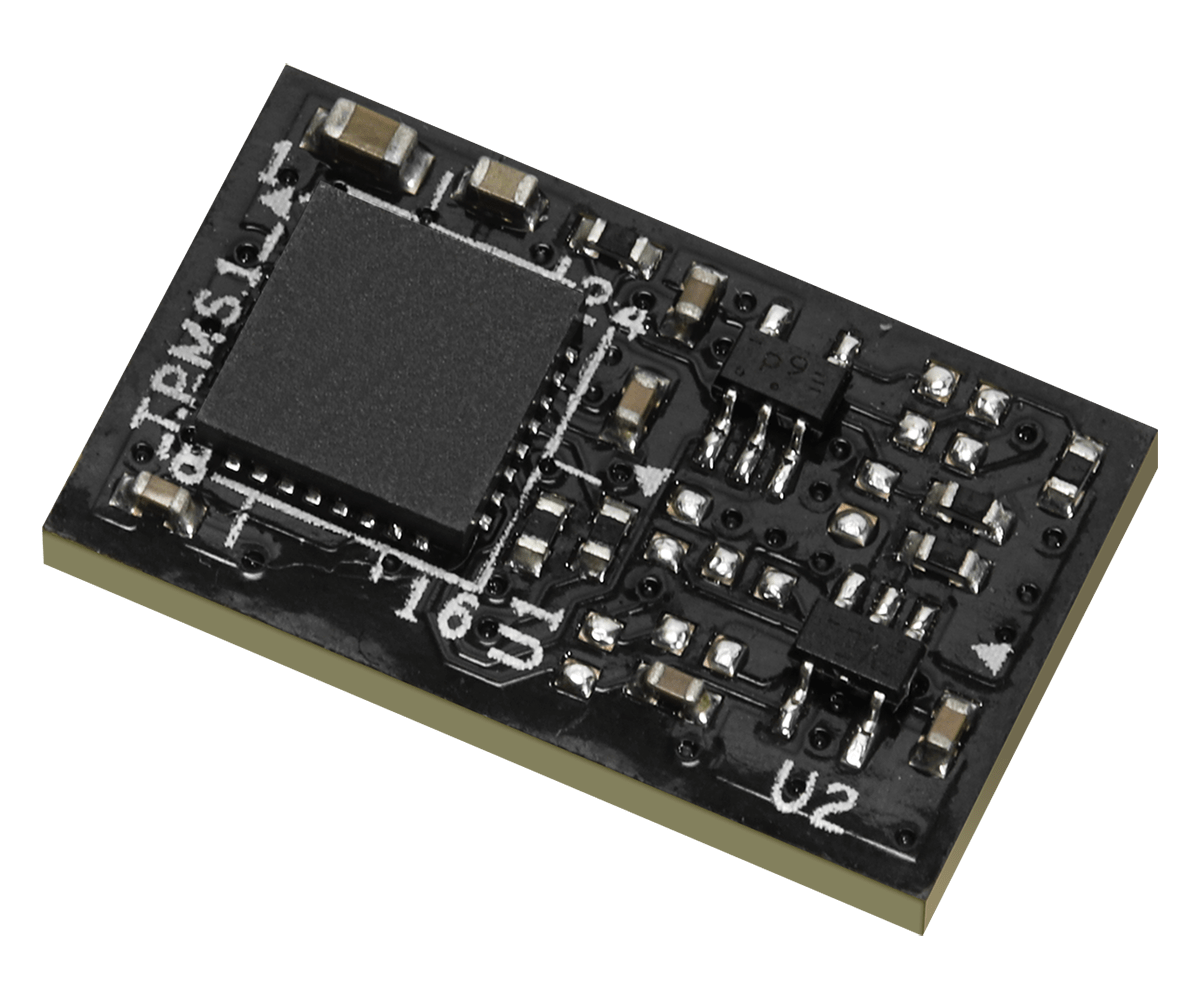

Compliant to TPM Main Specification, Family "2.0", Level 00, Revision 01.16

  • SPI interface
  • TPM 2.0

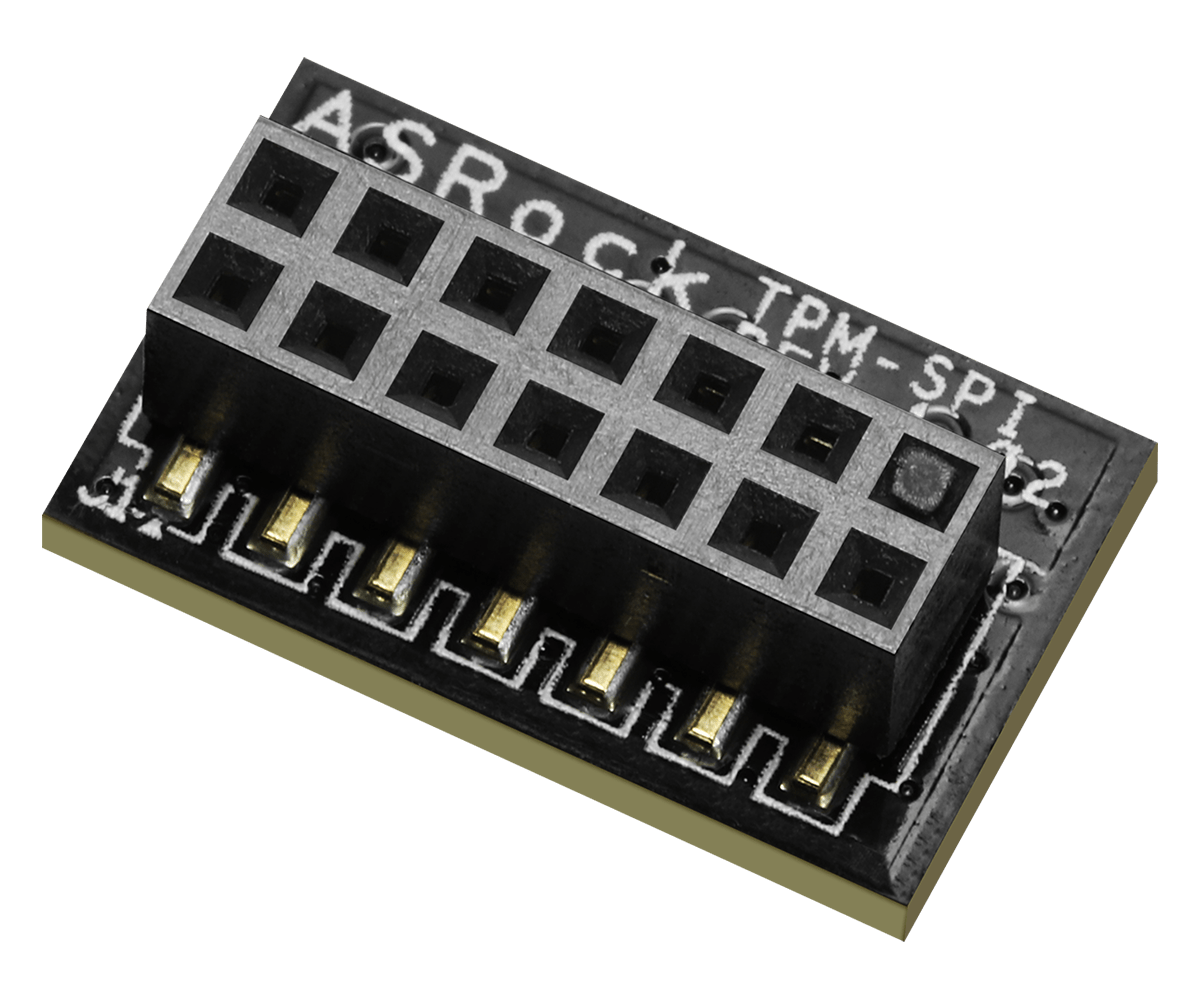

  • 13 pin connector
  • Meeting Intel TXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification
  • Random Number Generator (RNG) according to NIST SP800-90A
  • Full personalization with Endorsement Key (EK) and EK certificate
  • Standard (-20..+85°C) and Enhanced temperature range (-40..+85°C)
  • PG-VQFN-32-13 or PG-UQFN-32-1 package
  • Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version
  • Optimized for battery operated devices: low standby power consumption (typ. 110µA)
  • 24 PCRs (SHA-1 or SHA-256)
  • 7206 Byte free NV memory
  • Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)
  • Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)
  • Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_MIN)
  • Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_MIN)
  • Up to 8 NV counters
  • Up to 1 kByte for command parameters and response parameters
  • 1280 Byte I/O buffer

*Supported on X570 and newer platform motherboards.

System Requirements

  • Windows® 10, UEFI OS


Generelt

Strømtilslutning
SPI interface 13 pin (14-1 pin)
Type
TPM 2.0

Dimensioner og vægt

Bredde
17 mm
Højde
10 mm

Forpakningsinfo

Forpaknings størrelse
92 x 50 x 10 mm
Forpaknings vægt
3 g
